- Page 1 User manual...
- Page 3 AB IPBOX User manual Digital video broadcasting logo. This logo informs that the receiver conforms to the Digital Video broadcasting standards Risk of electric shock - do not open. to open This notice warns the user not the receiver housing. The housing may be opened solely by authorized service technicians.
- Page 4 AB IPBOX User manual Caution: Hot surface. Do not touch. The top surface over the internal heat sink may become hot when operating this product continuously. Do not touch hot areas, especially around the ‘Hot surface mark’ and the top panel.
-
Page 5: Table Of Contents
First start ........................................10 How to update your system ................................... 22 Live TV ..........................................28 Service Scan ........................................ 29 Terrestrial (DVB-T) *just for model AB IPBox Two Combo ....................... 29 Satellite ........................................... 30 Channel List ........................................31 Channel Info ......................................... 32 More Info ........................................ -
Page 6: Major Features
AB IPBOX User manual Major features Support 4K resolution and 4K(10bit) channels Operating System : Android Various Dual/Combo Tuner(DVB-S2,T2,C) Support Android TV Launcher Support PVR, Timeshift features USB HDD, USB memory stick, SD card, NAS ... -
Page 7: Packing Contents

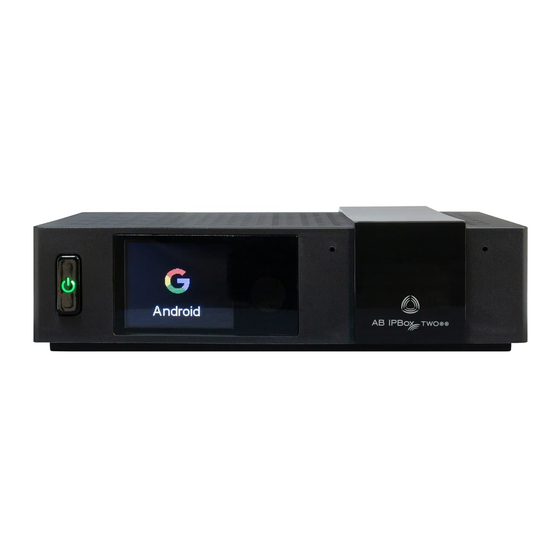

AB IPBOX User manual Packing contents 1. Set-Top Box with WIFI 2. Remote Control Unit 3. HDMI cable 4. 2 batteries for RCU ( AAA x 2pcs ) 5. Power Adapter 6. Quick Install Guide Front & Side Panel 1. TFT LCD : To show working status. -
Page 8: Rear Panel
Rear panel 1. Satellite/Terrestrial /Cable Antenna Connection Connect the cable from Sattelite/Terrestrial/Cable signal * This device is available in two variants: with 2x DVB-S2X tuner or 1x DVB-S2X tuner and DVB-C / T2 tuner 2. USB 3.0 / 2.0 port To support USB 2.0 device like USB Stick, HDD Camera etc. -
Page 9: Remote Controller (Rcu)
AB IPBOX User manual Remote Controller (RCU) Programmable Remote part How to program for TV RCU button (Example : Power button) : Press “TV” key for 5 seconds The light will be turn on and enter the learning mode. Press “TV” key in 10 seconds the light flash. -
Page 10: First Start
We have taken screenshots in English in consider ration of the global character of this manual, and the captured pictures may be different from the personal environment. After purchasing the product, connect the TV and AB IPBOX box with the HDMI cable, connect the DC power adapter to turn on the power. - Page 11 AB IPBOX User manual The device then checks for available updates.
- Page 12 AB IPBOX User manual Sign in with your google account. Enter your password:...
- Page 13 AB IPBOX User manual Use the virtual keyboard to enter your login details.
- Page 14 AB IPBOX User manual Accept Terms of Service: Location:...
- Page 15 Help improve Android performance: Google Assistant: * Displayed in English only (following 3 images) Then you have two ways to activate Google Assistant: 1. Press the Google Assistant button on the remote control. 2. Or you can say "OK Google" or "Hey Google".
- Page 16 AB IPBOX User manual...
- Page 17 AB IPBOX User manual...
- Page 18 AB IPBOX User manual Now your device is set up and ready to use: You will then be prompted to pair the BT remote control: RCU point to the device, press and hold the "i" button until the LED starts flashing.
- Page 19 AB IPBOX User manual...
- Page 20 AB IPBOX User manual Go to the Setting: The wired Internet connection is recommended for smooth use of this product. The WIFI connection is explained below. Start screen of Settings-Network. If “Settings” option is selected, the following screen is displayed.
- Page 21 AB IPBOX User manual WIFI connection is off by default. If you want to use WIFI, turn on this function and choosey our network. Once the network cable is connected, you can check the IP address as shown in the screen below.
-
Page 22: How To Update Your System
AB IPBOX User manual How to update your system You'll see two items in the settings, as shown below: - Online Upgrade - USB Upgrade Select “Online Update”... - Page 23 AB IPBOX User manual There are 2 update modes available in System Update: Update: standard software update. Online reinstallation: ATTENTION - selecting this item will delete all applications for you. This is a reinstallation of the full system. Update options: Full version: Clears all data, including applications.
- Page 24 AB IPBOX User manual When the download is completed as shown below, the AB IPBOX box will reboot automatically and the upgrade will start with the downloaded image.
- Page 25 AB IPBOX User manual Press OK button. The following screen will change to Android Software upgrade mode. When the process is completed, the AB IPBOX box will proceed with the reboot.
- Page 26 AB IPBOX User manual You have just upgraded your system. Set up your local / personal user interface before using the product. After completing the basic update, continue with the following basic configuration.
- Page 27 So, the fact that some regular mobile Android app does not work in AB IPBOX box is normal. To complement that you can not find mobile Apps in AB IPBOX box. So we also provide ”Market” to find other Apps. This is a...
-
Page 28: Live Tv
AB IPBOX User manual Live TV User Preferences explains the menus provided by Live TV. If you run the Live TV application on the main screen, you can watch live TV by connecting a Terres trial, Cable or Satellite antenna. -
Page 29: Service Scan
AB IPBOX User manual Service Scan Terrestrial (DVB-T) *just for model AB IPBox Two Combo 1. Search Mode: • Auto Scan: Auto-scanning based on broadcasting type & country. • Preset Scan : Scan by pre-programmed Mux information • Manual Scan : Scan by manual Mux information 2. -
Page 30: Satellite
AB IPBOX User manual Satellite Search: Satellite Search Mode: • Preset Scan : Scan by pre-programmed TP information • Blind Scan : Scan by tuner input signal • Manual Scan : Scan by manual TP information • Fast Scan : Scan by manual TP information 2. -
Page 31: Channel List
AB IPBOX User manual Channel List Press “OK” on RCU, You can manage channel list. Press “left” arrow button on RCU, You can manage Simple channel list. -
Page 32: Channel Info
AB IPBOX User manual Press “right” or “” button on RCU, You can manage Recall list. Channel Info When you change channel, you can see channel information. If you want to see more information with detail EPG, press “info” button twice... - Page 33 AB IPBOX User manual Then you can use Arrow key to choose some function like Sub-menu, Timer, Record, Record list, Lock, Subtitle, Teletext, Audio sound. 1. Timer list: Add / Remove timer for recording or reminder 2. Recording: Start recording 3.
-
Page 34: More Info
AB IPBOX User manual More Info Press RED button in LIVE TV mode. Then you can see Popup Menu - Go to the main menu - Color settings: Control the colors of the Box - Display Area Setting: Adjusts the OSD display area. -
Page 35: Pvr
AB IPBOX User manual To record channel, On live mode, press “ ” button then you can see recording menu Select option like duration, storage device. Then press “Start” button then will start recording. You can record more channesl at same time in same transponder or with other Tuner. -
Page 36: Time Shift
AB IPBOX User manual Time Shift To use Time shift function, you need to designate storage. Enable Time Shift Designate Storage device. After setting Time shift function, To use time shift function, in Live TV mode, press “ ” button then you can enter time shift mode... -
Page 37: Program Guide
AB IPBOX User manual Program Guide It allows: 1. RED button.: Switches between single and multi EPG display 2. Green Button: Displays the EPG from the previous day. 3. Yellow button: Displays the EPG from the next day. 4. Blue Button: Reserves an EPG event to watch. -
Page 38: Add Timer
AB IPBOX User manual Add timer In the EPG, use the button (located in the lower left corner on the remote control) to call up the list of timers, press the green button "Add timer. You can select "View" or "Upload"... -
Page 39: Channel Editor
AB IPBOX User manual Channel Editor In the channel list, press the “I” button to display the channel editor. Then the green button and select the channel editing option. Edit Group List : Enable/Disable Favorite/Provider/FTA/Scramble/HD/UHD Make Favorite Groups/Channels : Add/Rename/Move Favorite channels... - Page 40 AB IPBOX User manual How to create a FAV group In the channel list, press the “I” button to display the channel editing options. Then the green button and select your favorite channels option. In the left window, select the desired FAV group using the ▼ / ▲ buttons.
- Page 41 AB IPBOX User manual Delete Channels : Select channel to delete in list permanently Lock/Unlock Channels : Select channel to lock in list...
-
Page 42: Setup
AB IPBOX User manual Setup • Language : Select the default language. 1. Audio/EPG Language : Select the default playback audio language. • Preference : Set the Live TV function settings. 1. Boot Startup : Sets the TV to appear automatically at startup. (Disable : Do not use / Enable : Use) 2. - Page 43 AB IPBOX User manual • User Interface : Set up the user interface. 1. Infobar Timeout : Set the time the infobar disappears when switching channels. (You can specify from 1 to 10 seconds) 2. Info box Transparency : Set the transparency of the info box. (0% ~ 50% can be specified) 3.
- Page 44 AB IPBOX User manual • Backup : You can back up channel and user data and restore it when the device is initialized. 1. Backup channel data to storage : Backup channel data to USB storage. 2. Resore channel data from storage : Recovers channel data from USB storage.
- Page 45 AB IPBOX User manual • Reset : Channel-related data and factory reset. 1. Reset Channels Data : Deletes all searched channel data. 2. Initialize User Favorites : Initializes the user favorites list. 3. Reset Channels EPG Data : Initializes EPG data.
- Page 46 AB IPBOX User manual • Access Control: Initializes system access control. 1. Set Pin Code: Set the pin code. (Initial pin code is 0000.) 2. Scan Menu : Set the permission to access the Start menu. (Unlock / Lock) 3. Rest : Set the access authority of the Rest menu. (Unlock / Lock)
- Page 47 AB IPBOX User manual • LCN : Set the LCN number. 1. Local Channel Number(LCN) : Use the local channel number. (Disable : Do not use / Enable : Use) 2. LCN User Number : Designate the NCL user start number.
