OE-C9912M20 Quick Installation Guide
Click the link if you need to download the original hardcopy of the
the boxed contents.

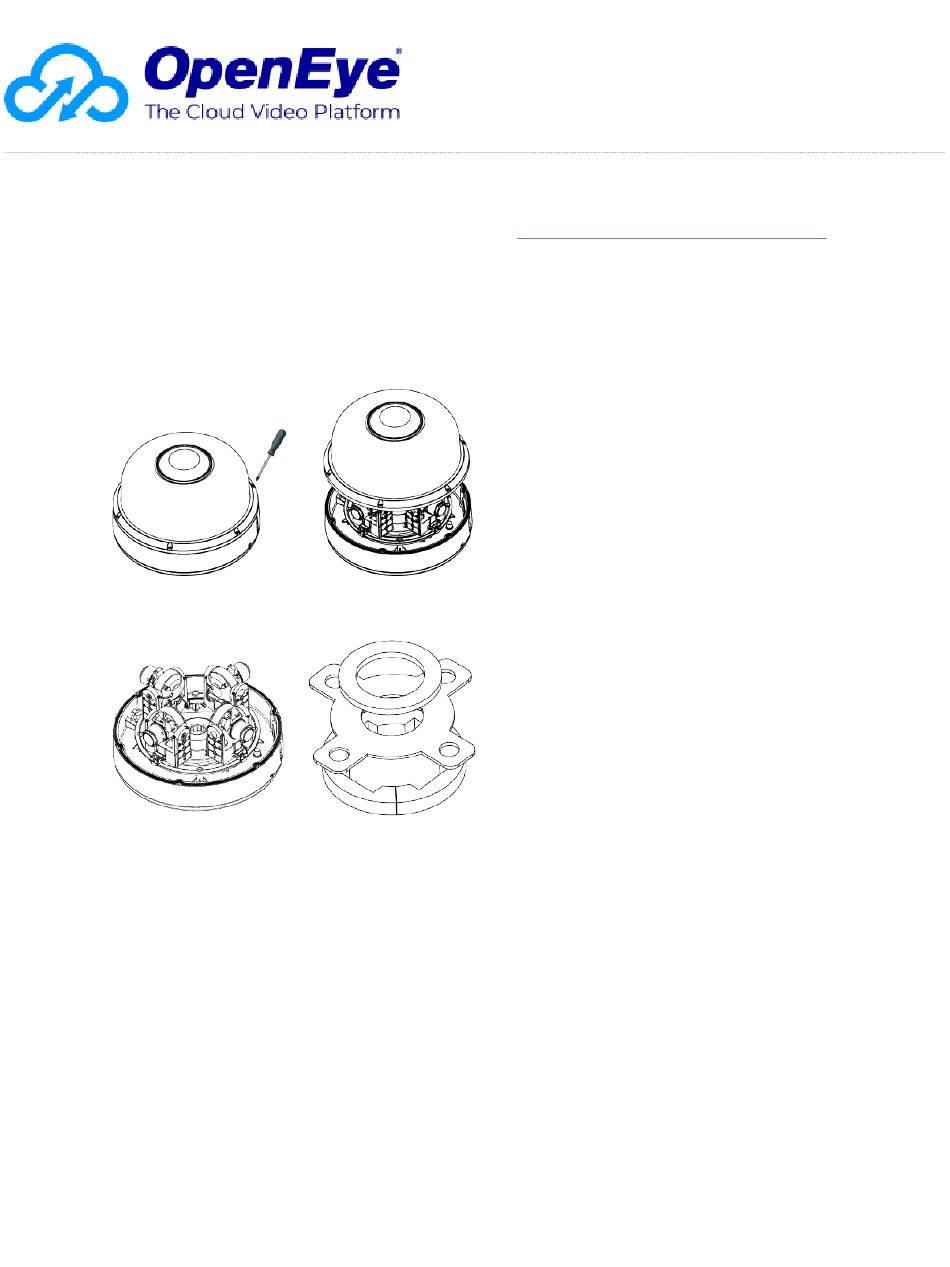

Preparing the Camera
1. Loosen the 6 screws to remove the bottom cover.
2. Remove and discard the protective EPE from the lens module.
3. Remove the desiccant packet from its package. Peel away the protective paper to expose the adhesive strip
and install the desiccant in the recommended position with the adhesive strip down.
Copyright © OpenEye 2023
OE-C9912M20 Quick Installation Guide
EPE
included with
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OE-C9912M20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenEye OE-C9912M20

Summary of Contents for OpenEye OE-C9912M20

  • Page 1 OE-C9912M20 Quick Installation Guide Click the link if you need to download the original hardcopy of the OE-C9912M20 Quick Installation Guide included with the boxed contents. Preparing the Camera 1. Loosen the 6 screws to remove the bottom cover. 2. Remove and discard the protective EPE from the lens module.
  • Page 2 4. Attach the spring cable and tighten the 6 screws to secure the cover. Wall Mount Installation 1. Loosen the anti-drop screw on the lateral side of the bottom cover. 2. Rotate the cap from LOCK to OPEN in order to remove the cap. Copyright © OpenEye 2023...
  • Page 3 3. Disconnect the safety wire from the hook. 4. Loosen the 3 screws on the bottom plate and open it. 5. Route the network and applicable I/O cables through the grommets. Copyright © OpenEye 2023...
  • Page 4 6. Reinstall the bottom plate and tighten the 3 screws. 7. Thread the pendant cap onto the wall mount arm and tighten the set screw. 8. Reconnect the safety wire. Copyright © OpenEye 2023...
  • Page 5 LOCK mark. 10. Tighten the screw on the lateral side of the bottom cover. Pendant Mount Installation 1. Loosen the anti-drop screw on the lateral side of the bottom cover. Copyright © OpenEye 2023...
  • Page 6 2. Rotate the cap from LOCK to OPEN in order to remove the cap. 3. Disconnect the safety wire from the hook. 4. Loosen the 3 screws on the bottom plate and open it. Copyright © OpenEye 2023...
  • Page 7 5. Route the network and applicable I/O cables through the grommets. 6. Reinstall the bottom plate and tighten the 3 screws. 7. Reconnect the safety wire. Copyright © OpenEye 2023...
  • Page 8 8. Thread the pendant cap onto the pendant mount and tighten the set screw. 9. Rotate the camera from OPEN to LOCK in order to fix the camera. The mark should be aligned with the LOCK mark. 10. Tighten the screw on the lateral side of the bottom cover. Copyright © OpenEye 2023...

  • Page 9: Ceiling Mount Installation

    1. Apply the provided template sticker to the desired installation location. With a 3/16" drill bit, drill the marked holes for the screw anchors. Remove the template sticker and insert the plastic screw anchors. 2. Loosen the 4 screws on the plate. 3. Secure the plate to the ceiling using the included screws. Copyright © OpenEye 2023...
  • Page 10 4. Loosen the 3 screws on the bottom plate and open it. 5. Route the network and applicable I/O cables through the grommets. Copyright © OpenEye 2023...
  • Page 11 7. Connect the safety wire. 8. To attach the camera to the plate, twist the camera counterclockwise until it is secured firmly in place. Then tighten the screw on the lateral side of the bottom cover. Copyright © OpenEye 2023...

  • Page 12: Related Links

    (There is only 1 screw hole on the plate for easy recognition). NOTE: The camera can be mounted to a 4" electrical box when used with the mounting plate. Related Links OE-C9912M20 Quick Start Guide OE-C9912M20 Hardware Manual - Features and Contents OE-C9912M20 Copyright © OpenEye 2023...
