Art. 19035
en

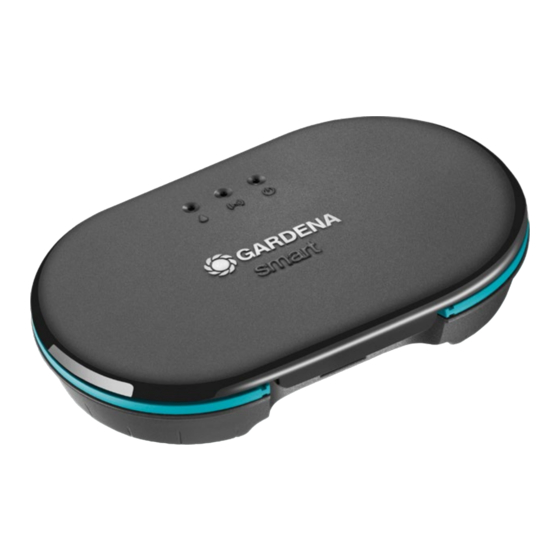

Operator's manual
smart Irrigation Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the smartsystem 19035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardena smartsystem 19035

Summary of Contents for Gardena smartsystem 19035

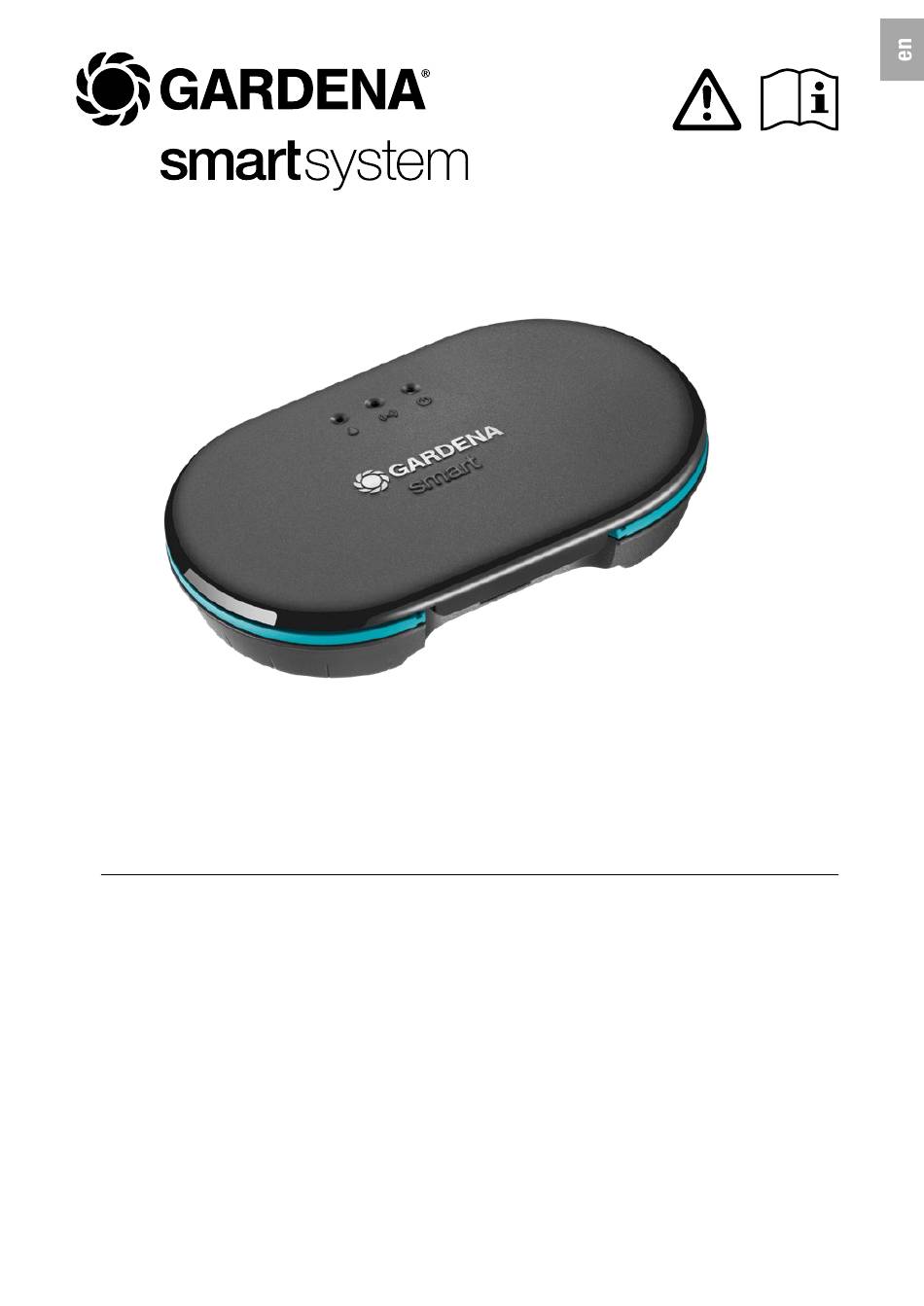

  • Page 1 Art. 19035 Operator’s manual smart Irrigation Control...

  • Page 2: Table Of Contents

    GARDENA smart Irrigation Control 1. SAFETY WARNINGS ........
  • Page 3 Intended use: The GARDENA smart Irrigation Control is intended for private use in domestic and hobby gardens, to control sprinklers and irrigation systems. It can be used for automatic watering during holidays. It is not intended for use in an indoor irrigation system.

  • Page 4: Safety Warnings

    1 . SAFETY WARNINGS   DANGER! Important! Risk of suffocation! Read the operator’s manual Small parts can be easily swal- carefully before use and keep lowed. There is also a risk that for future reference. the polybag can suffocate tod- dlers.
  • Page 5 The product must be used only for not exceed 500 mA (a GARDENA controlling commercially available Irrigation Valve Art. 1278 requires 24 V (AC) valves. The electric power 150 mA). consumption per channel must...

  • Page 6: Assembly

    No more than 2 valves (except for the master valve) must be in operation at the same time. The GARDENA Connection Cable Art. 1280 has a cross­section of 0.5 mm² and is 15 m long. This cable allows to connect up to 6 valves. For a waterproof connection...
  • Page 7 2.3 To assemble the Irrigation Control on the wall: Both screws and wall plugs are included in the scope of delivery. The distance between the holes is 120 mm. WARNING! Risk of falling! If you install the Irrigation Control at a height of more than 2.0 m, you risk falling to the ground during installation.
  • Page 8 S/N: 00000000 36 VDC MASTER VALVES + – 5 6 C C M RESET 5s 120 mm 2. Mark the positions of the holes. To do this, hold the Irrigation Control horizontally against the wall and mark 2 holes at a distance of 120 mm. 3.

  • Page 9: Installation

    3 . INSTALLATION   3.1 To remove the cable strain relief: S/N: 00000000 36 VDC VALVES MASTER + – 5 6 C C M RESET 5s v Loosen both screws and remove the cable strain relief...
  • Page 10 3.2 Connection overview: S/N: 00000000 36 VDC VALVES MASTER 5 6 C C M + – PUMP CONTROL 36 VDC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C (ART.
  • Page 11 3.3 To connect the valves to the Valve Box: Make sure that the terminal block has been correctly installed in the valve box. 1 2 3 4 5 6 C C C C (ART. 1278) (ART. 1278) (ART. 1278) 1. Label the valves (1 – 6) with the yellow stickers of the valve box. This allows to clearly assign the signal cable terminals VALVES 1 –...
  • Page 12 " 1 2 3 4 5 6 C C C C 2. Connect a cable of the valve V1 to the signal cable terminal 1 of the Valve Box. 3. Connect a cable of the valve V2 to the signal cable terminal 2 of the Valve Box.
  • Page 13 § 1 2 3 4 5 6 C C C C 5. Connect the other cable of the valve V1 to a signal cable terminal C of the Valve Box. All 4 signal cable terminals C are connected to each other and equivalent. 6.
  • Page 14 3.4 To connect the Valve Box to the Irrigation Control: Tip: Press down the signal cable terminal with your index finger, screwdriver or ballpoint pen to connect the cables. With the GARDENA Connection Cable Art. 1280 you can connect up to 6 valves with the Irrigation Control. S/N: 00000000...
  • Page 15 S/N: 00000000 36 VDC VALVES MASTER 5 6 C C M + – RESET 5s 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C 4. Connect one signal cable terminal C of the Valve Box to the blue signal cable terminal C of the Irrigation Control.
  • Page 16 3.5 To connect the master valve: Master Channel: The master channel M is activated as soon as one of the valves is activated. You can connect a central valve as master valve upstream of the other valves. & S/N: 00000000 36 VDC VALVES MASTER...
  • Page 17 3.6 To connect the power supply: CAUTION! Property damage! The Irrigation Control is damaged if the power supply unit is connected to cable terminals other than the 36 V DC cable terminals. v Connect the power supply unit to the 36 V DC terminals only. CAUTION! Property damage! Damaging of the Irrigation Control system by short circuit.
  • Page 18 S/N: 00000000 36 VDC VALVES MASTER 5 6 C C M + – 36 VDC POWER RESET 5s SUPPLY 1 2 3 4 5 6 C C C C 1 2 3 4 5 6 C C C C 1. Connect the red cable to the red cable terminal and the black cable to the black cable terminal.
  • Page 19 3.7 To close the cover: S/N: 00000000 36 VDC VALVES MASTER + – RESET 5s 1. Attach the cable strain relief and tighten the two screws 2. Push the cover onto the Irrigation Control.

  • Page 20: Operation

    4 . OPERATION   4.1 LED Display: LED Power: Green: Power on LED Connection display / Signal: Green flashing: While connecting Green: Signal strength high Yellow: Signal strength medium Red: Signal strength low Red flashing: Inclusion mode failed LED Active watering: Green: Active watering Red flashing:...
  • Page 21 4.2 To operate the Irrigation Control with the GARDENA smart App: You can use the GARDENA smart App to control all GARDENA smart system products from anywhere at any time. The free GARDENA smart App is available on the App Store (Apple) and on Google Play.
  • Page 22 4.3 To perform a factory reset: S/N: 00000000 36 VDC VALVES MASTER + – RESET 5s 1. Push the Reset key for a short time. New connection. – or – 2. Push and hold down the Reset key for at least 5 seconds. Cancels the existing connection and allows a new connection to be established, e.

  • Page 23: Maintenance

    • for the Valve Box V3, open the drain cap and drain the supply pipe. As long as the pipes coming from the Valve Box V3 outlets are drained via a drain valve (e. g. in the GARDENA pop­up sprinklers) which is not attached at a higher point than the irrigation valve, the irrigation valves can be left mounted in the valve box.

  • Page 24: Troubleshooting

    7 . TROUBLESHOOTING   7.1 Troubleshooting table: Problem Possible Cause Remedy LED Power Undervoltage. v Check the power illuminates red connection. Wrong power supply. v Check the power supply. MCU Communication v Reset the Irrigation error. Control to factory set­ tings.
  • Page 25 No wireless connection to v Check the wireless con­ the gateway. nection to the gateway. NOTE: Repairs must only be done by the GARDENA service departments or specialist dealers approved by GARDENA. v For any other malfunctions please contact the GARDENA service department.

  • Page 26: Technical Data

    1000 EC / UKCA Declaration of Conformity: Hereby, GARDENA Manufacturing GmbH declares that the radio equipment type (Art. 19035) is in compliance with directive 2014/53/EU. The full text of the EC / UKCA declaration of conformity is available at the following internet address: http://www.gardena.com/int/support/safety-regulations...

  • Page 27: Accessories / Spare Parts

    Sensor GARDENA Watering Art. 1278 Valve for controlling individual parts of Valve 24 V an irrigation system. GARDENA Valve Boxes Art. 1254 / 1255 Box for installing the watering valves underground. GARDENA Connection Cable for connecting watering valves. Art. 1280...

  • Page 28: Disposal

    11. DISPOSAL 11.1 Disposal of the Irrigation Control: (according to Directive 2012/19/EU / S.I. 2013 No. 3113) The product must not be disposed of to normal household waste. It must be disposed of in line with local environmental regulations. IMPORTANT! Dispose of the product through or via your local recycling collection centre.

  • Page 29: Trademark Attribution

    12. TRADEMARK ATTRIBUTION Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc. registered in the U.S. and other countries. Google and the Google Play logo are trademarks of Google LLC. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc.
  • Page 30 Deutschland / Germany Bulgaria Dominican Republic India GARDENA Manufacturing GmbH AGROLAND България АД BOSQUESA, S.R.L B K RAMAN AND CO Central Service бул. 8 Декември, № 13 Carretera Santiago Licey Plot No. 185, Industrial Area, Hans-Lorenser-Straße 40 Офис 5 Km. 5 ½...
  • Page 31 8F Haengbok Building, Republica Moldova, 210, Gangnam-Daero Poland mun. Chisinau, 137-891 Seoul Al-Futtaim ACE Company Gardena Service Center Vrbno sos. Muncesti 284 Phone: (+82) 2 574 6300 L.L.C Building, Al Rebat Street c/o Husqvarna Manufacturing Phone: (+373) 22 857 126 kjh@kjh.co.kr Festival City, Dubai CZ s.r.o.
