Connection
4.2

Connection of the RS-485 connector to the Reflex Control Basic controller

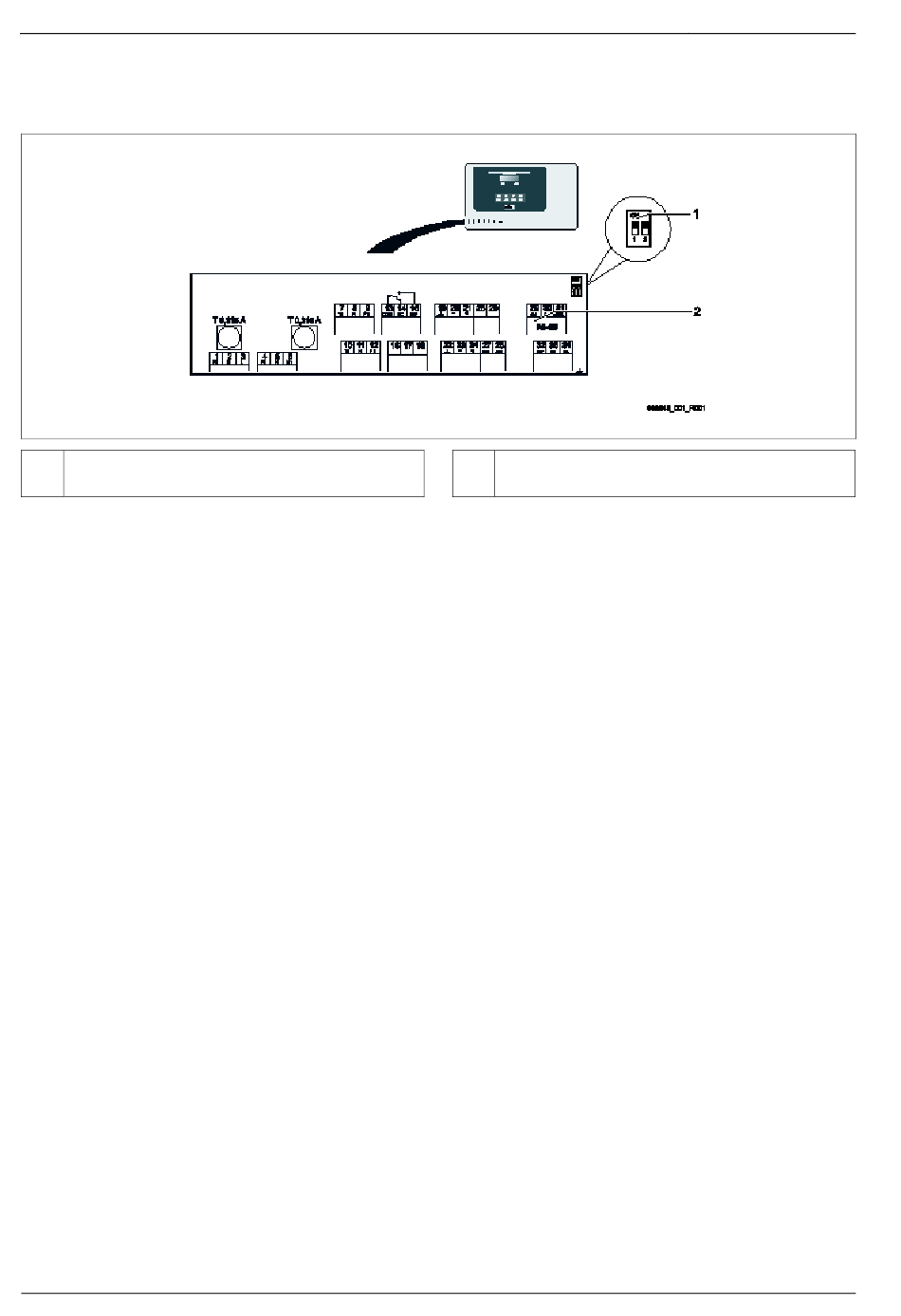

Connection plan of the Reflex Control Basic.
1
DIP switches 1 and 2 in active position
• The terminator is activated
Proceed as follows:
1. Open the housing cover of the Control Basic controller.
2. Install the adapter in the top right area of the housing bottom.
3. Secure the Reflex Control Remote on the adapter.
4. Connect the main board to the Reflex Control Remote using the supplied
RS485 cable.
o Connection to terminals 29, 30.
o RJ45 jack on the Reflex Control Remote
5. Route a LAN cable through a cable penetration and connect it to the Reflex Control Remote.
6. Connect the power supply.
o Use the supplied mains adapter.
7. Activate the terminators on the main board of the Control Basic.
o Use DIP switches 1 and 2.
6 — German
2 Connection terminals for RS‐485 connection
Control Remote - 09.11.2015
