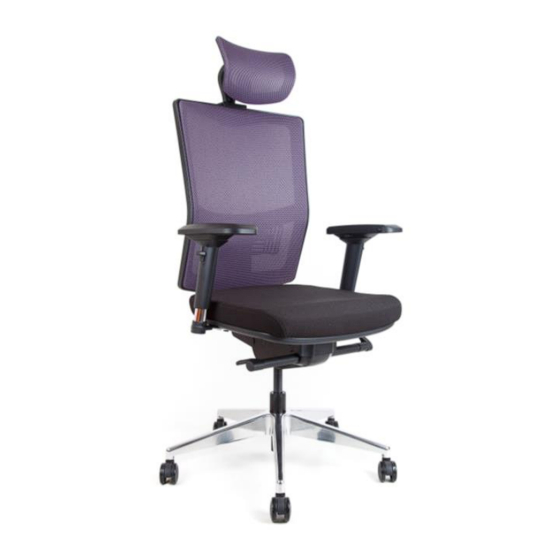

Emagra X5 Assembly Instructions

Used parts
(Note: Some parts may be different than images)
1. Gaslift 2. Casters 3. Armrests
4. Synchro mechanism 5. Seat
6. Base 7. Backrest 8. Headrest
9. Spojovací materiál
9. Screws
Model X5 / armrests 1B, 3B
A M6x30 6 pcs armrests + 4 pcs mechanism
10pcs
B M8x14(15) 3pcs Backrest
C M5x14 (17) 1pcs Headrest
1 pcs IMBUS

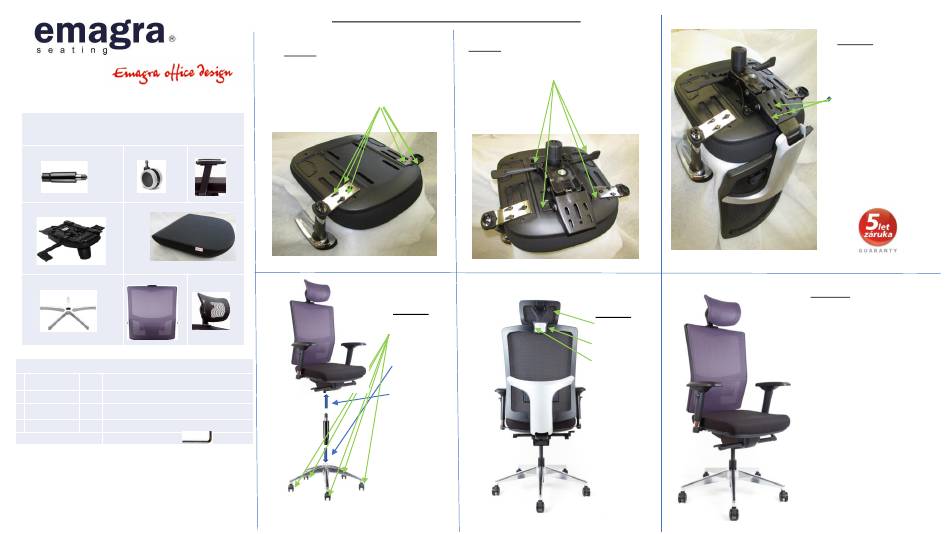

Assembly instructions – model X5
STEP 1
1. Insert armrests to the seat
2. Be aware of the correct position of
the left and right armrests
3. Fasten the screws Ax6pcs
STEP 4:
1. Insert 5pcs
of casters into
the base, then
insert gaslift
into the
opening in the
base
2. Insert the
gaslift into the
corresponding
hole in the
mechanism
STEP 2
1. Fasten mechanism to the seat
2. Tighten the screws A x 4pcs
STEP 5:
1. Fasten
headrest to the
backrest
2. Tighten the
screws D x 1pcs
STEP 3:
1. Fasten backrest to
the mechanism
2. Tighten the screws
B x 3pcs
User guide
Maintenance and attention
1. The chair can only be used by
one person at a time.
2. Do not use the chair as a stool
or ladder.
3.Do not use the chair unless all
parts are properly assembled.
4.Do not use the chair untill all
screws are properly tightened.
5. If the chair is damaged by
external influences, do not use it
without expert repair.
6. This is a mechanical product
subjects to user stress, it is
necessary to check the chair
regularly and possibly tighten the
screws.
For professional servis, please
contact us by phone +420 463 034
155 or by mail
export1@emagra.cz
