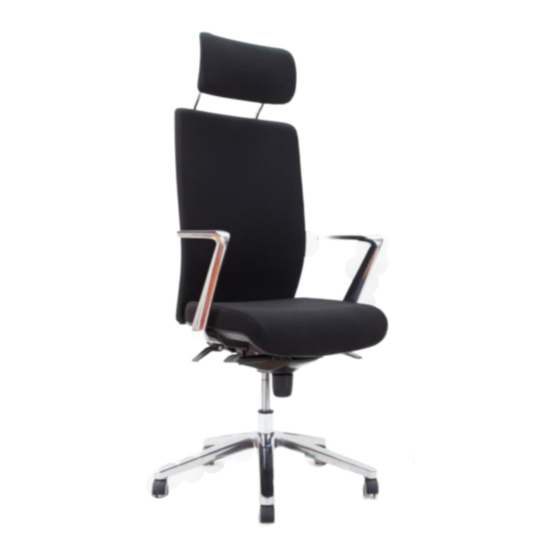

Emagra B3L Assembly Instructions

Emagra B3L Assembly Instructions

Seat with depth regulation

Advertisement

Quick Links

Used parts
(Note: Some parts may be different than images)
1. Gaslift
2. Casters
3. Armrests
4. Synchro mechanism
5. Seat
6. Base
7. Backrest
8. Headrest
9. Screws
Model B3L / armrests K1, Z1
A
M6x40
6pcs Armrests
B
M6x20
4pcs Mechanism
C
M8x12
4pcs Backrest
D
M6x25
4pcs Headrest
1 pcs
IMBUS

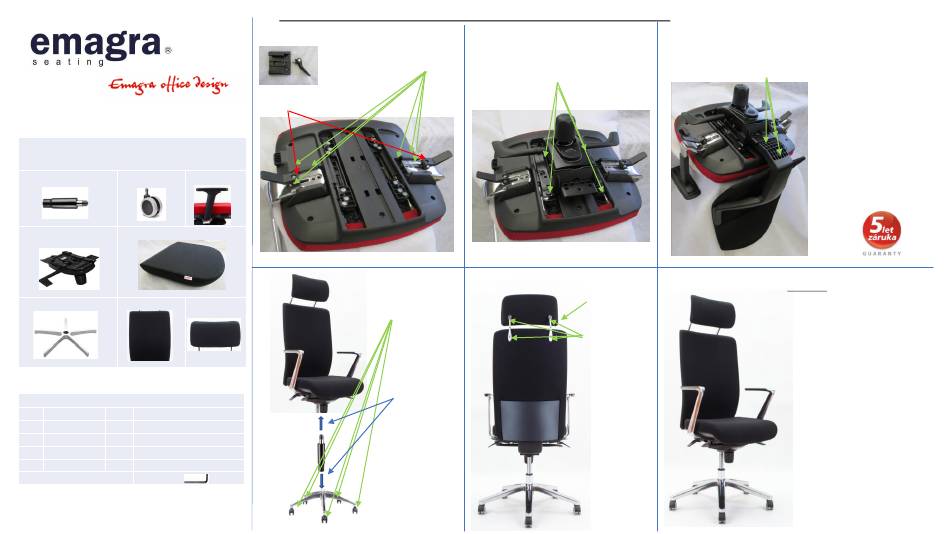

Assembly instructions – model B3L
STEP 1
1.Fasten the cube for width adjustability
of armrests to the seat and fasten the
screws Ax6pcs
2. Insert the armrests
3. Attach the locking lever of the armrests
STEP 4
1. Insert 5pcs
of casters into
the base, then
insert gaslift
into the
opening in the
base
2. Insert the
gaslift into the
corresponding
hole in the
mechanism
seat with depth regulation
STEP 2
1. Fasten mechanism to the seat
2. Tighten the screws C x 4pcs
STEP 5
1. Fasten
headrest to the
backrest
2. Tighten the
screws D x 4pcs
STEP 3
1. Fasten backrest to the mechanism
2. Tighten the screws C x 4pcs
User guide
Maintenance and attention
1. The chair can only be used by
one person at a time.
2. Do not use the chair as a stool or
ladder.
3.Do not use the chair unless all
parts are properly assembled.
4.Do not use the chair unless all
screws are properly tightened.
5. If the chair is damaged by
external influences, do not use it
without expert repair.
6. This is a mechanical product
subjects to user stress, it is
necessary to check the chair
regularly and possibly tighten the
screws.
For professional servis, please
contact us by phone +420 463 034
155 or by mail export1@emagra.cz
