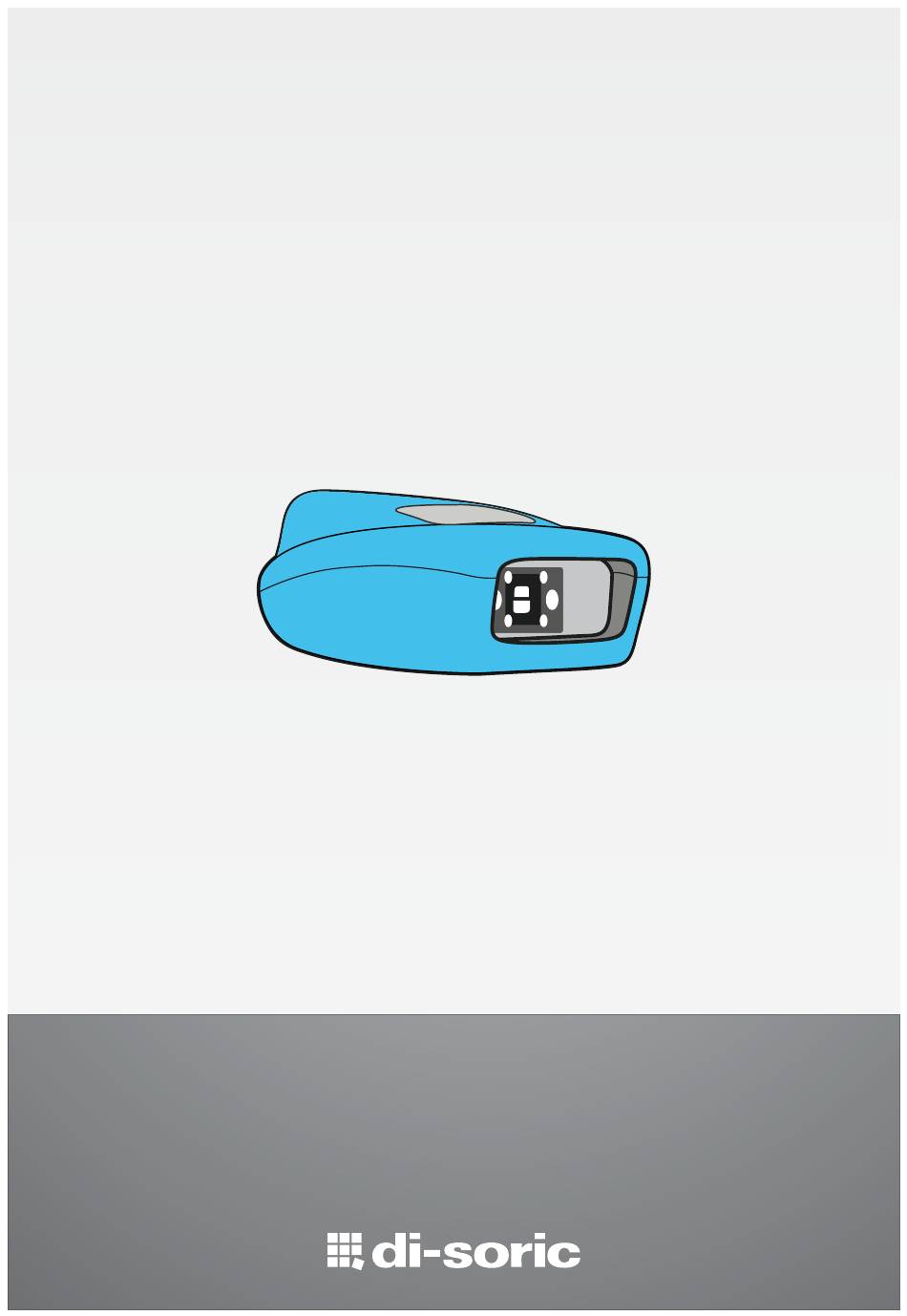

- Page 1 HANDHELD READER ID-10 600010-000000 · Rev 1 · 202007 USER MANUAL...
-
Page 2: Table Of Contents
Inhaltverzeichnis / Contents Inhalt 1 Inbetriebnahme / Set Up ..................................3 2 Artikelliste / Article list..................................4 3 Abmessungen des ID-10 / Dimensions of the ID-10 .............................. 5 4 Technische Daten / Technical data (typ.) ..............................5 5 Codearten / Symbologies ................................ -
Page 3: Inbetriebnahme / Set Up
ID-10 1 Inbetriebnahme / Set Up RS232 2 Sec. 600010-000000 · Rev 1 · 202007... -
Page 4: Artikelliste / Article List
ID-10 2 Artikelliste / Article list ID-Handlesegerät / ID-Handheld Produktbezeichnung / Product-ID ID-Handlesegerät / ID-Handheld ID-10-IM3-2-US Halterung / Holder Standfuß / Holder ID-10-STAND Kabel / Cable Länge / Length 2,4 m SUB-D/DC Jack / RJ50 ID-K-SD/DCJ-RJ50-2 Länge / Length 1.8 m... -
Page 5: Abmessungen Des Id-10 / Dimensions Of The
ID-10 3 Abmessungen des ID-10 / Dimensions of the ID-10 4 Technische Daten / Technical data (typ.) Betriebsspannung Service voltage 5 V DC Eigenstromaufnahme Internal power consumption 200 mA Abmessungen Dimensions 30 x 67 x 52 mm Umgebungstemperatur Ambient temperature -20 …... -
Page 6: Handhabung / Handling
ID-10 ID-Handlesegerät / ID-Handheld Produktbezeichnung / Product-ID ±65 ±60 ID-10-IM3-2-US Tilt, Pitch und Skew / Tilt, Pitch and Skew 6 Handhabung / Handling 600010-000000 · Rev 1 · 202007... -
Page 7: Pinbelegung / Reader Pinouts
– SHIELD SHELL – SHIELD ID-K-RJ50/U-2 8 Lesebereich / Reading Ranges ID-10 Leseleistung auf Label mit hohem Kontrast / High Contrast Label and DPM Performance Test Barcode Min Inches (mm) Max Inches (mm) 3 mil Code 39 3.3” (84 mm) 4.3”... -
Page 8: Reader / Reader Feedback
Codabar All GS1 DataBar Symbologien „Ein“ oder „Aus“ zu schalten, scannen Sie die entsprechenden Code 39 Interleaved 2 of 5 „Ein“ oder Aus“-Codes im ID-10 Configuration Guide. Diesen finden Sie auf unserer Website unter www.di-soric.com Code 93 PDF417 Code 128... -
Page 9: Reader-Id Und Firmwareversion / Reader Id And Firmware Version
The ID-10 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your ID-10 uses CMOS technology that is much like a digital camera. A dirty window may stop the ID-10 from reading barcodes. -
Page 10: Hinweise Zu Open Source Software / Notes On Open Source Software
OPEN SOURCE LICENSES This di-soric product contain Open Source Software from various developers which is subject to different licenses e.g. the General Public License in all versions. For di-soric products which are subject to the General Public License in their respective versions the following applies: It is free software: you can use it under the terms of the GNU General Public License as published by the Free Software Foundation. - Page 11 ID-10 600010-000000 · Rev 1 · 202007...
- Page 12 SOLUTIONS. SOLUTIONS. CLEVER. PRACTICAL. CLEVER. PRACTICAL. di-soric GmbH & Co. KG | Steinbeisstrasse 6 | 73660 Urbach | Germany Phone +49 71 81 98 79-0 | Fax +49 71 81 98 79-179 | info @ di-soric.com www.di-soric.com...
