HANDHELD READER
ID-110
600013-000000 · Rev 1 · 202008
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-110 and is the answer not in the manual?

Questions and answers

Related Manuals for Di-soric ID-110

Summary of Contents for Di-soric ID-110

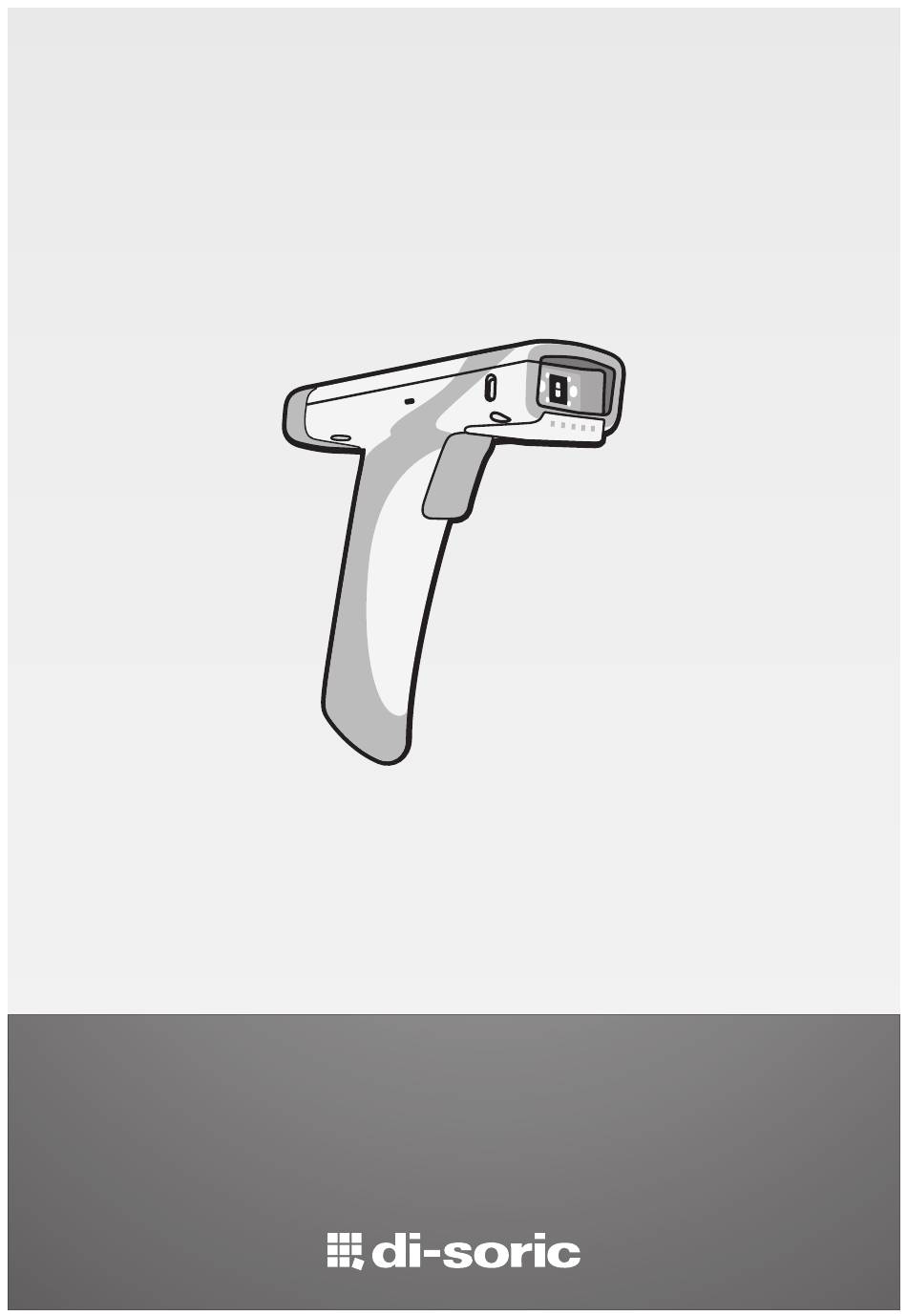

  • Page 1 HANDHELD READER ID-110 600013-000000 · Rev 1 · 202008 USER MANUAL...

  • Page 2: Table Of Contents

    ID-110 Inhaltverzeichnis / Contents 1 Inbetriebnahme / Set Up ..................................3 2 Artikelliste / Article list..................................3 3 Abmessungen / Dimensions ................................4 4 Pinbelegung / Reader Pinouts ................................4 5 Technische Daten / Technical data (typ.) ..............................4 6 Handhabung / Handling ..................................

  • Page 3: Article List

    Battery cartridge ID-110-BAT Ladestation / Charging Station Für Handlesegerät ID-110 / For Handheld Reader ID-110 ID-110-PS-Base Für bis zu vier Wechselakkus ID-110-BAT / ID-110-BAT-CH-EU For up to four Battery cartridge ID-110-BAT Modem / Modem Bluetooth Modem / Bluetooth modem ID-BT-Interface-S...
  • Page 4 ID-110 2 Inbetriebnahme / Set Up 3 Batterie ein- und ausbauen / Battery installation and removal 4 Batteriestatusanzeige / Fuel gauge battery status indicator < 10 % < 25 % 25…50 % 50…75 % 75…100 % Vor der ersten Inbetriebnahme vollständig aufladen! Completely charge before initial use! 600013-000000 ·...
  • Page 5 ID-110 5 Laden des ID-110 / Charging the ID-110 4 Std. / Hrs. 2.5 Std. / Hrs. 6 Ein-/Ausschalten / Powering On/Off the Reader 1 Sek. / Sec. 600013-000000 · Rev 1 · 202008...
  • Page 6 ID-110 7 Bluetooth-Verbindung aufbauen / Establishing a Bluetooth Connection 600013-000000 · Rev 1 · 202008...
  • Page 7 ID-110 8 Datenübertragung über Bluetooth / Transmitting Batch Data via Bluetooth Communication Scan the Batch Mode Enable - Scan the Batch Mode Log Only configuration barcode to save Transfer All Data in Memory scanned data to reader memory. configuration barcode to transfer data to the host device.
  • Page 8 Vibration ID-110 wurde erfolgreich gestartet / All LEDs Flash 1 Beep Ja / ID-110 successfully powers Up ID-110 erfolgreich mit Host verbunden / Wireless Icon Flashes 1 Beep Ja / ID-110 Successfully connects with Host Verbindung mit Host fehlerhaft /...

  • Page 9: Abmessungen / Dimensions

    ID-110 12 Abmessungen des ID-110 / Dimensions of the ID-110 13 Technische Daten / Technical data (typ.) Betriebsspannung Service voltage 4,2 V DC Eigenstromaufnahme Internal power consumption 362 mA Spitze bei / Peak at 4,2 V DC / Standby: 20 mA / Idle: 80 mA...

  • Page 10: Handhabung / Handling

    ID-110 Produktbezeichnung ID-Handlesegerät / ID-Handheld Product-ID ±65 ±60 ID-110-IM3-2-BT Tilt, Pitch und Skew / Tilt, Pitch and Skew Skew ± 60° Tilt ± 180° ID-110 Pitch ± 60° 15 Handhabung / Handling 100 mm 16 Abmessungen / Dimensions 66.5 83.98...

  • Page 11: Lesebereich / Reading Ranges

    Symbologien in den Standardeinstellungen auf „Ein“ gesetzt. Um Code 39 Interleaved 2 of 5 Symbologien „Ein“ oder „Aus“ zu schalten, scannen Sie die entsprechenden „Ein“ oder Aus“-Codes im ID-110 Configuration Guide. Diesen finden Sie auf Code 93 PDF417 dem beiliegenden USB-Stick.

  • Page 12: Reader-Id Und Firmwareversion / Reader Id And Firmware Version

    The ID-110 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your ID-110 uses CMOS technology that is much like a digital camera. A dirty window may stop the ID-110 from reading barcodes.

  • Page 13: Hinweise Zu Open Source Software / Notes On Open Source Software

    OPEN SOURCE LICENSES This di-soric product contain Open Source Software from various developers which is subject to different licenses e.g. the General Public License in all versions. For di-soric products which are subject to the General Public License in their respective versions the following applies: It is free software: you can use it under the terms of the GNU General Public License as published by the Free Software Foundation.
  • Page 14 SOLUTIONS. SOLUTIONS. CLEVER. PRACTICAL. CLEVER. PRACTICAL. di-soric GmbH & Co. KG | Steinbeisstrasse 6 | 73660 Urbach | Germany Phone +49 71 81 98 79-0 | Fax +49 71 81 98 79-179 | info @ di-soric.com www.di-soric.com...
