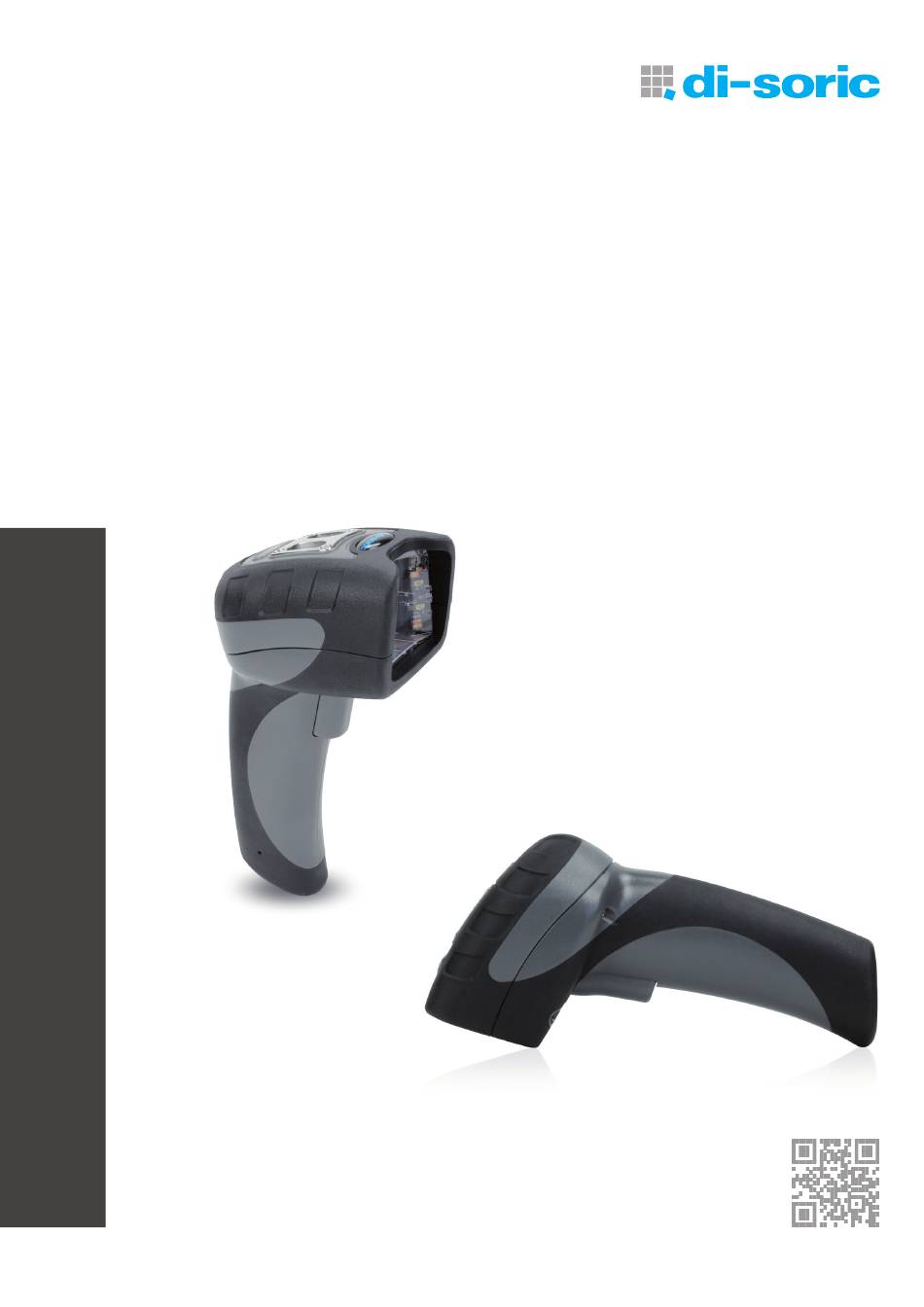

- Page 1 Betriebsanleitung User manual ID-100 www.di-soric-solutions.com HSD 0320.004 / 11.16-V01de...
-
Page 2: Table Of Contents
The ID-100 is a DPM-reading device in industrial quality for all kinds of 1D and 2D codes. Engraved codes, punched codes and dot peened codes are as easily detected as postal barcodes as well as low-contrast, extremely compact and small barcodes. -
Page 3: Inbetriebnahme / Set Up
1.0 Inbetriebnahme / Set Up 230 V ✓ 10 Sec. 2.0 Artikelliste / Article list ID-Handlesegerät / ID-Handheld Produktbezeichnung / Product-ID ID-100-IM3-2-US Wandhalterung / Wall bracket ID-100-WBKT Kabel / Cable ID-K-SD/DCJ-RJ50-2 Länge / Length 2,0 m RJ50 / RS 232 ID-K-RJ50/U-2 Länge /... -
Page 4: Abmessungen Dimensions
2D-Codes 2D-Codes Data Matrix QR Code Micro QR Aztec Code Code 49 Codablock F Han Xin Maxi Code Gestapelte Codes Stacked codes PDF 417 Micro PDF GS1 Composite (CC-A / CC-B / CC-C) For questions regarding reader configuration contact www.di-soric-solutions.com... -
Page 5: Pinbelegung / Reader Pinouts
Produktbezeichnung ID-Handlesegerät / ID-Handheld Product-ID ±60 ID-100-IM3-2-US ±60 Tilt, Pitch und Skew / Tilt, Pitch and Skew Skew ± 60° Tilt ± 180° ID-100 Pitch ± 60° 5.0 - Pinbelegung / Reader Pinouts +VIN (5,0 V) RS232 RX (input to reader) -
Page 6: Handhabung / Handling
The ID-100 reader defaults to Auto Mode. The Reading Mode automatically adjusts to optimize performance on various DPM barcodes. If your application involves only one type of DPM barcode, the ID-100 can be further enhanced by enabling the specific Reading Mode that works best for your barcode. -
Page 7: Lesebereich / Reading Range
0” (0 mm) 3.9” (100 mm) 20.8 mil DM 0.4” (10 mm) 7.9” (200 mm) ID-100 Leseleistung bei direktmarkierten Codes mit geringem Kontrast / Low Contrast Data Matrix DPM Performance Test Barcode Min Inches (mm) Max Inches (mm) Laser-Etched Marks 0”... -
Page 8: Symbologien „Ein" In Standardeinstellung / Symbologies Defaulted On
Firmware confi guration barcode. Ein Textstring zeigt Ihnen die ID-100 ID-Nummer sowie die Firmwareversion an. A text string indicating the fi rmware version and ID-100 ID number will be displayed. Beispiel / example: Xap/i08080808none0020309971A0600000076000001600620002 cd(13.2.18) (Siehe unten / see below): String Boot firmware... -
Page 9: Reinigung Und Pflege / Maintenance
The ID-100 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your ID-100 uses CMOS technology that is much like a digital camera. A dirty window may stop the ID-100 from reading barcodes. - Page 10 KONTAKTIEREN SIE UNS CONTACT US di-soric Solutions GmbH & Co. KG Steinbeisstraße 6 73660 Urbach Germany Fon: +49 (0) 71 81 / 98 78 - 0 Fax: +49 (0) 71 81 / 98 78 - 177 solutions@di-soric.com www.di-soric-solutions.com HAUPTSITZ HEADQUARTERS di-soric GmbH &...
