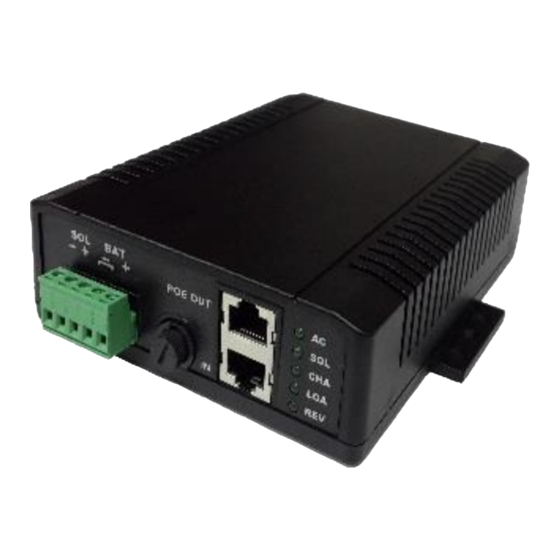

MSTRONIC SOL10A12-56D-BT User Manual

Solar/ac charge controller + gigabit poe injector
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
SOL10A12-56D-BT
Solar/AC Charge Controller + Gigabit PoE Injector
USER'S MANUAL
Mstronic Co., Ltd.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOL10A12-56D-BT and is the answer not in the manual?

Questions and answers

Related Manuals for MSTRONIC SOL10A12-56D-BT

Summary of Contents for MSTRONIC SOL10A12-56D-BT

  • Page 1 SOL10A12-56D-BT Solar/AC Charge Controller + Gigabit PoE Injector USER’S MANUAL Mstronic Co., Ltd.
  • Page 2 User’s Manual SOL10A12-56D-BT Features:  Dual Inputs, from solar panel and/or AC (Solar First) to charge 12V battery.  Dual outputs, 56V PoE output on front and 12V DC output on rear  Outputs convert from battery, work as with DC UPS ...

  • Page 3: Panel Description

    User’s Manual SOL10A12-56D-BT Panel Description: Item Name Descriptions AC power input indicator: the LED lights when the AC inlet has AC : 100~240VAC input. Solar power input indicator: the LED lights when SOL terminal is SOL : connecting to a solar panel and the solar panel input voltage is over 12V.
  • Page 4 User’s Manual SOL10A12-56D-BT Load Terminal: wire size 12~16AWG, the output voltage is the LOAD : same as battery voltage. AC inlet: for 100~240VAC input. Operation Guide 1. Connect the battery to the BAT terminal. Make sure the polarities are correctly connected. Sequentially connect the solar panel to SOL terminal and connect AC source to AC inlet.
  • Page 5 User’s Manual SOL10A12-56D-BT When battery connect to BAT terminal and with valid voltage, then the LOA indicator will always light on even no load connected. 9. There are two separate outputs on the front and rear panel, make sure the total draw is not over the limit 10A.

  • Page 6: Electrical Specifications

    User’s Manual SOL10A12-56D-BT Electrical specifications  1.0 INPUT A. Solar Panel: 18V~25VDC 10A max B. AC: 100V~240VAC ,DC Io = 3A~3.5A max Always load first, only balance be used in charge 2.0 OUTPUT Model SOL10A12-56D-BT 56V/1.25A Output 1 (regulated) (upper RJ45)
  • Page 7 User’s Manual SOL10A12-56D-BT 4.5 Solar Panel Over Charge Protection: When charge current over 10A, the fuse will be burnt. 4.6 Output Short Circuit Protection: When the rear output terminal or PoE output be short circuit, protection be active, the product stop output and auto-recover when the terminal back to normal connection.
  • Page 8 User’s Manual SOL10A12-56D-BT 9. BATTERY OUTPUT CONVERT TO : 9.1 802.3at/bt POE OUTPUT (Pin: 3/6/4/5 = + , 1/2/7/8 = -) OUTPUT Max. Current 1.25A Max. Watts 9.2 DC = 10A Output. Same as battery voltage 10. Series models SOL10A12-56B1N...

This manual is also suitable for:

Sol10a12-56b1nSol10a12-56a1nSol10a12-56a1r
