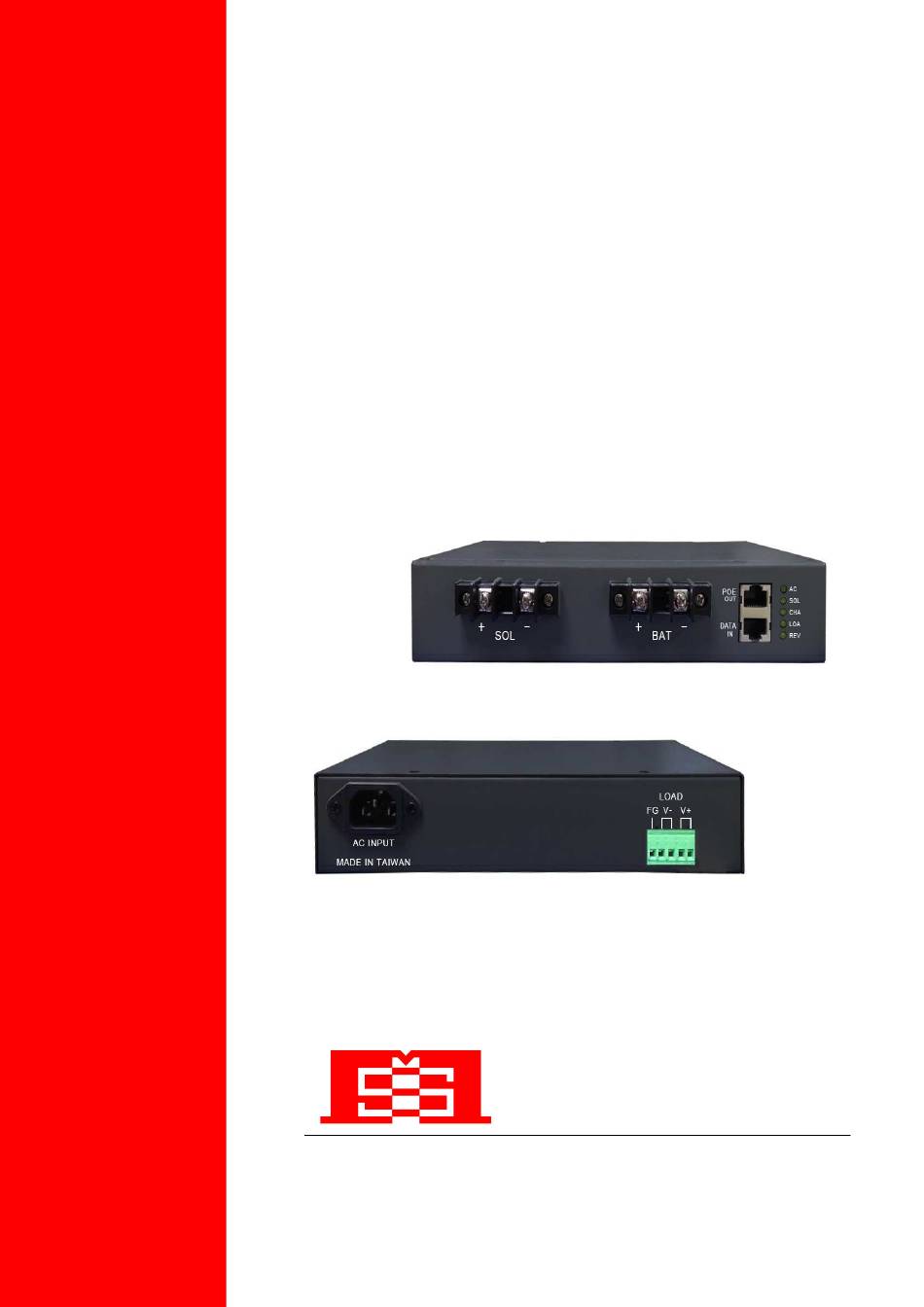

- Page 1 SOL20A12LFP-56D2N Solar/AC Charge Controller + Gigabit PoE Injector USER’S MANUAL Mstronic Co., Ltd.
- Page 2 SOL20A12LFP-56D2N User’s Manual Features: Dual Inputs, from solar panel and/or PoE (Solar First) to charge 12V battery. Dual outputs, PoE output on front and/or terminal block on rear Outputs convert from battery, work as with DC UPS ...

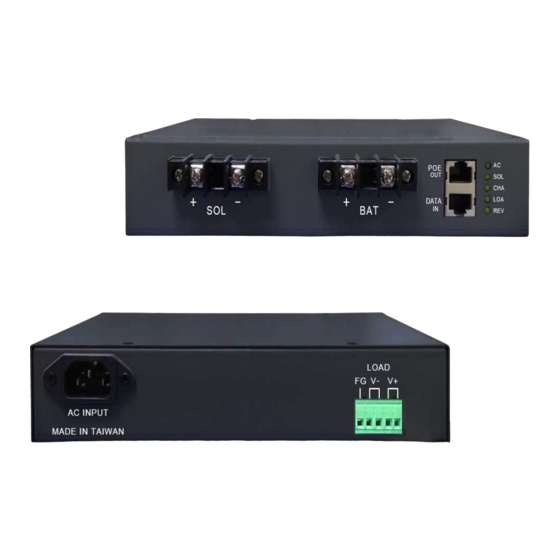

- Page 3 SOL20A12LFP-56D2N User’s Manual Panel Description: Item Name Descriptions AC power input indicator: the LED lights when the AC inlet has AC : 100~240VAC input. Solar power input indicator: the LED lights when SOL terminal is SOL : connecting to a solar panel and the solar panel input voltage is over 12V.
- Page 4 SOL20A12LFP-56D2N User’s Manual Load Terminal: wire size up to 12AWG, the output voltage is the LOAD : same as battery voltage. AC inlet: for 100~240VAC input. Operation Guide 1. Connect the battery to the BAT terminal. Make sure the polarities are correctly connected.
- Page 5 SOL20A12LFP-56D2N User’s Manual 6. When charge from solar panel, as the battery full and turn to floating stage, the CHA light will start flash. 7. When charge from AC, as the battery full, the CHA light will be turn off.
- Page 6 SOL20A12LFP-56D2N User’s Manual Electrical specifications 1.0 INPUT A. Solar Panel: 18V~55VDC 20A max B. AC: 100V~240VAC ,DC Io = 4.7A~5.0A max Always load first, only balance wattage be used in charge 2.0 OUTPUT Model SOL20A12LFP-56D2N 56V/1.26A Output 1 (regulated)
- Page 7 SOL20A12LFP-56D2N User’s Manual 4.5 Solar Panel Over Charge Protection: When charge current over 25A, the fuse will be burnt. 4.6 Output Short Circuit Protection: When the rear output terminal or PoE output be short circuit, protection be active, the product stop output and auto-recover when the terminal back to normal connection.
- Page 8 SOL20A12LFP-56D2N User’s Manual 6.0 RJ45 pinout: @1000M RJ-45 Input (Data Only) RJ-45 Output (Data & Power) Symbol Description Symbol Description BI_DA+ Data Pair A+ -Vdc + BI_DA+ power(-)+Data Pair A+ BI_DA- Data Pair A- -Vdc + BI_DA- power(-)+Data Pair A-...
