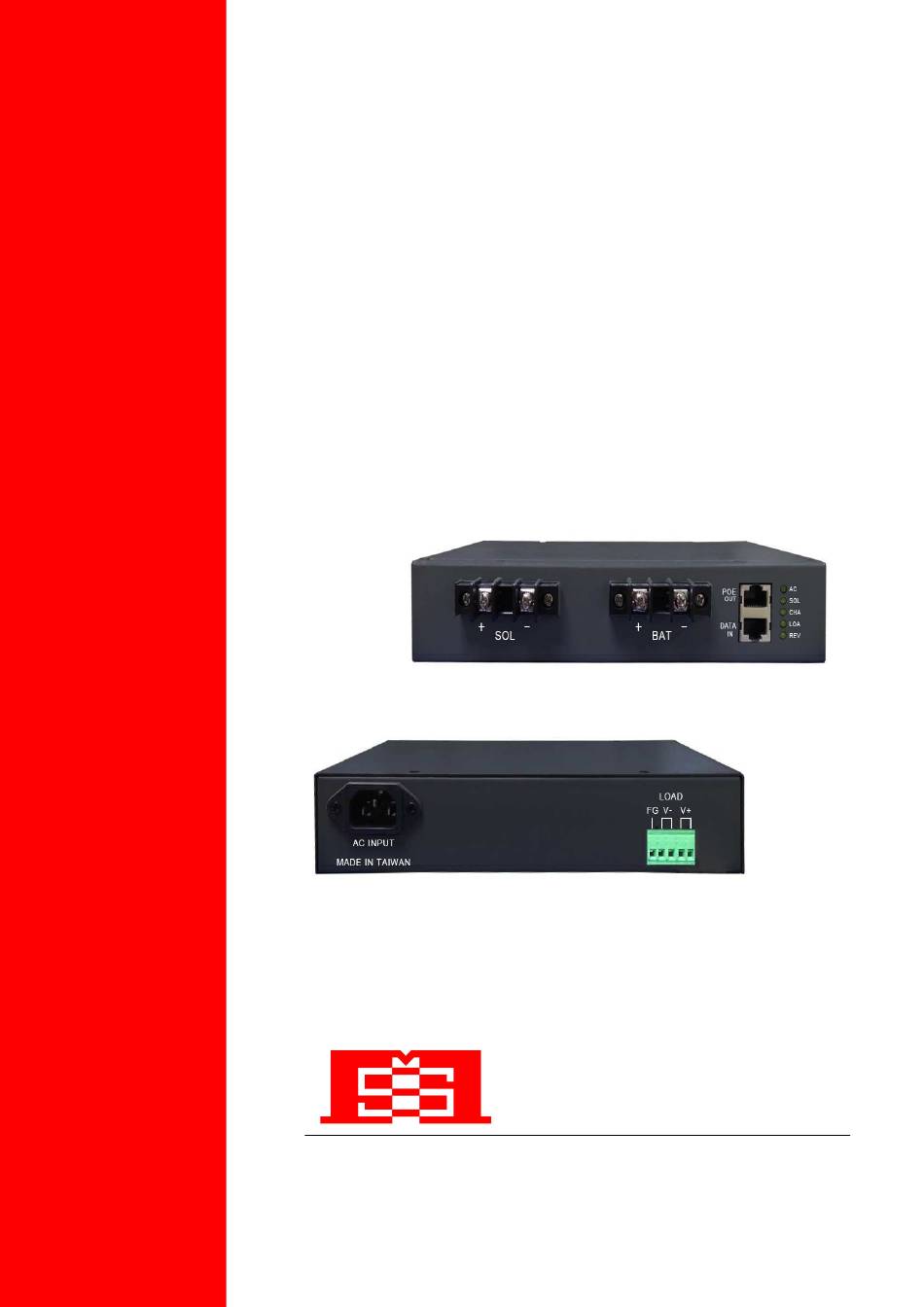

- Page 1 SOL20A12-56D-BT Solar/AC Charge Controller + Gigabit PoE Injector USER’S MANUAL Mstronic Co., Ltd.
- Page 2 SOL20A12-56D-BT User’s Manual Features: Dual Inputs, from solar panel and/or PoE (Solar First) to charge 12V battery. Dual outputs, PoE output on front and/or terminal block on rear Outputs convert from battery, work as with DC UPS ...
- Page 3 SOL20A12-56D-BT User’s Manual Panel Description: Item Name Descriptions AC power input indicator: the LED lights when the AC inlet has AC : 100~240VAC input. Solar power input indicator: the LED lights when SOL terminal is SOL : connecting to a solar panel and the solar panel input voltage is over 12V.
- Page 4 SOL20A12-56D-BT User’s Manual Load Terminal: wire size up to 12~16AWG, the output voltage is LOAD : the same as battery voltage. AC inlet: for 100~240VAC input. Operation Guide 1. Connect the battery to the BAT terminal. Make sure the polarities are correctly connected.
- Page 5 SOL20A12-56D-BT User’s Manual 6. When charge from solar panel, as the battery full and turn to floating stage, the CHA light will start flash. 7. When charge from AC, as the battery full, the CHA light will be turn off.
- Page 6 SOL20A12-56D-BT User’s Manual Electrical specifications 1.0 INPUT A. Solar Panel: 18V~55VDC 20A max B. AC: 100V~240VAC ,DC Io = 4.7A~5.0A max Always load first, only balance be used in charge 2.0 OUTPUT Model SOL10A12-56D-BT 56V/1.25A Output 1 (regulated) (upper RJ45)
- Page 7 SOL20A12-56D-BT User’s Manual 4.5 Solar Panel Over Charge Protection: When charge current over 20A, the fuse will be burnt. 4.6 Output Short Circuit Protection: When the rear output terminal or PoE output be short circuit, protection be active, the product stop output and auto-recover when the terminal back to normal connection.
- Page 8 SOL20A12-56D-BT User’s Manual 6.0 RJ45 pinout: @1000M RJ-45 Input (Data Only) RJ-45 Output (Data & Power) Symbol Description Symbol Description BI_DA+ Data Pair A+ -Vdc +BI_DA+ power(-)+Data Pair A+ BI_DA- Data Pair A- -Vdc +BI_DA- power(-)+Data pair A- BI_DB+ Data Pair B+...
