Summary of Contents for Nordic TS-L0118

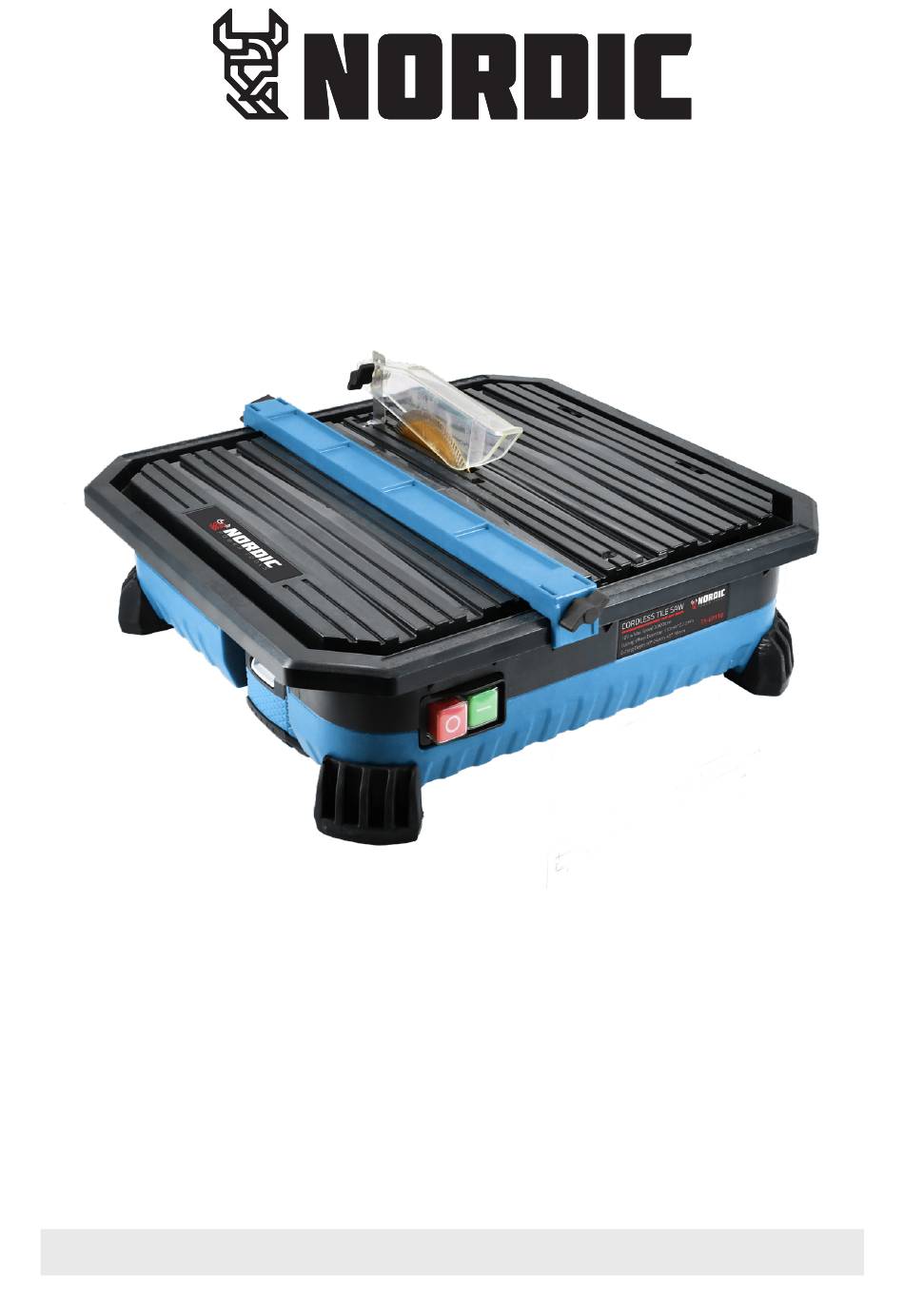

- Page 1 18V CORDLESS TILE SAW OPERATING MANUAL TS-L0118...
-
Page 2: Product Specification
NORDIC WARNING: To reduce the risk of injury, the user must read and understand the operator’s before manual using this product. PRODUCT SPECIFICATION Voltage: No Load Speed: 3800/min Blade: Ø110 x Ø22.2mm Max. Depth Of Cut: 24mm(0°)/16mm (45°) Table Size:... -
Page 3: Electrical Safety
NORDIC • Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY • Always check that the power supply corresponds to the voltage on the rating plate. • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. - Page 4 NORDIC POWER TOOL USE AND CARE • Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
- Page 5 NORDIC • Do not use cutting blades which do not comply with the specifications stated in this manual. • Never start cutting tiles before the machine reaches full speed. • Never attempt to cut extremely small workpieces . • Do not leave the work area until the machine has been switched off and the cutting disc has come to a complete standstill.
-
Page 6: Additional Safety Instructions For Batteries And Chargers
NORDIC ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Use only batteries and chargers applicable for this machine. BATTERIES • Never attempt to open for any reason. • Do not store in locations where the temperature may exceed 40 °C. - Page 7 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
-
Page 8: Operation
NORDIC OPERATION Before using the equipment: BATTERY CHARGER The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job. - Page 9 NORDIC ASSEMBLY OF MAIN UNIT WARNING! ENSURE THE BATTERY IS DISCONNECTED FROM THE UNIT BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS. FITTING THE RUBBER FEET 1. Insert the 4 rubber feet into the holes on the base of the tile saw.
-
Page 10: Water Tank
NORDIC SETTING UP THE PARALLEL FENCE Release the parallel fence locking clips and place the parallel fence onto the working table. Ensure that it is parallel to the blade. Use the guide ruler to assist in achieving the desired width of cut. - Page 11 NORDIC CAUTION! ALLOW THE BLADE TO REACH FULL SPEED BEFORE PERFORMING ANY CUTTING OPERATIONS. WARNING! THE DIAMOND BLADE WILL CONTINUE TO ROTATE FOR A FEW SECONDS AFTER THE TILE SAW HAS BEEN SWITCHED OFF. WAIT FOR THE BLADE TO STOP BEFORE REMOVING STRAIGHT CUT Adjust the parallel fence to the desired width.
-
Page 12: Cleaning And Maintenance
Blow dust from the tile cutting saw through the ventilation slots with compressed air periodically to ensure a dust free tool. Note: Nordic Tools will not be responsible for any damage or injuries caused by the repair of the tile saw by an unauthorised person or by mishandling of the tool.
