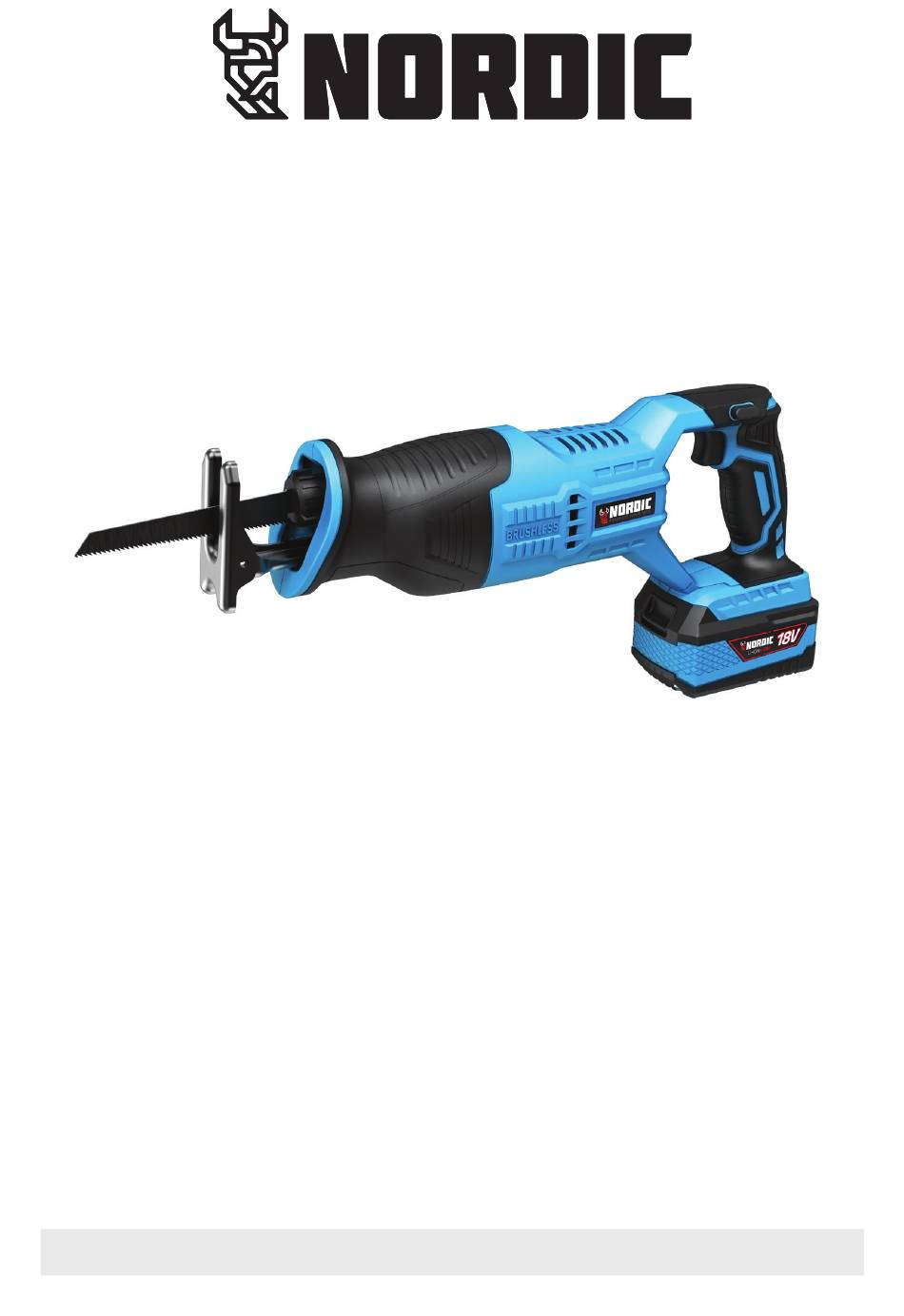

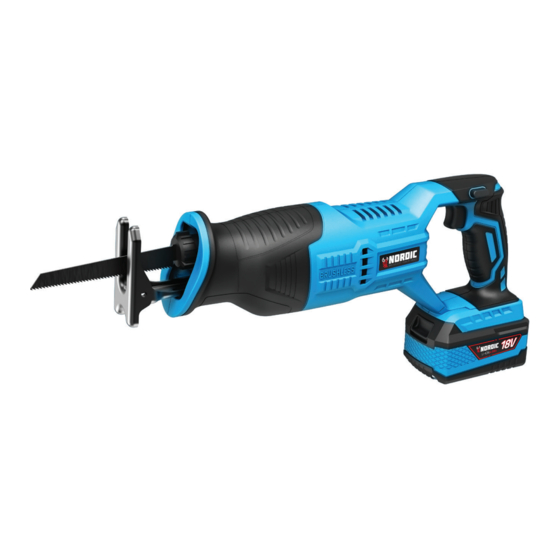

- Page 1 18V BRUSHLESS RECIPROCATING SAW OPERATING MANUAL RS-B0118...
-
Page 2: General Power Tool Safety Warnings
NORDIC PRODUCT SPECIFICATION (Require 4.0Ah Battery) Voltage: 18V DC Rated Speed: 0-2800/min Stroke Length: 25.4mm Wood: 40mm Max Cutting Capacity: Soft Metal: 5mm Plastic: 30mm Vibration: 6.652m/s , K=1.5m/s A weighted sound pressure level: LpA: 84.1dB(A) ; KpA=3dB(A) A weighted sound power level: LwA: 95.1dB(A) ;... -
Page 3: Electrical Safety
NORDIC 2.2 ELECTRICAL SAFETY • Always check that the power supply corresponds to the voltage on the rating plate. • Power tool plugs must match the outlet. Never modify the plug in any way. Do not use adapter plugs with earthed power tools. - Page 4 NORDIC 2.4 POWER TOOL USE AND CARE • Do not expect the power tool to do more than it can. Use the correct power tool for what you want to do. A power tool will achieve better results and be safer if used in the context for which it was designed.
- Page 5 In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. • Use the battery only in conjunction with your Nordic power tool. This measure alone protects the battery against dangerous overload. •...
-
Page 6: Additional Safety Instructions For Batteries And Chargers
NORDIC ADDITIONAL SAFETY INSTRUCTIONS FOR BATTERIES AND CHARGERS Use only batteries and chargers applicable for this machine. 4.1 BATTERIES • Never attempt to open for any reason. • Do not store in locations where the temperature may exceed 40 °C. - Page 7 NORDIC SYMBOLS In this manual and/or on the machine the following symbols are used: Denotes risk of personal injury or damage to the tool. Read manual before use Wear eye protection Wear ear protection Wear safety gloves In accordance with essential requirements of the European directive(s) Class II - The machine is double insulated;...
-
Page 8: Operation
NORDIC OPERATION Before using the equipment: BATTERY CHARGER The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging. Remove the battery pack from the tool when convenient for you and your job. - Page 9 NORDIC FUNCTIONS REPLACING/INSERTING THE SAW BLADE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade. When changing the saw blade, take care that the saw blade holder is free of material residue, e. g. wood or metal shavings.
-
Page 10: Cutting Instruction
NORDIC SWITCHING ON AND OFF Depress the On/Off switch to start and release it to stop your tool. Depress the on/off switch then the lock on button. Your tool is now locked on for continuous use. To switch off your tool just depress and release the on/off switch. -
Page 11: Working Hints For Your Reciprocating Saw
NORDIC METAL CUTTING This saw has different metal cutting capacities depending upon the type of blade being used and metal being cut. Use a finer blade for ferrous metals and a coarse blade for non-ferrous metals. When cutting thin gauge sheet metals, ALWAYS clamp wood on both sides of the sheet. - Page 12 NORDIC Saw Blade On/Off trigger Pivoting blade foot Battery release button Tool-free chuck Battery pack (not included) PLEASE NOTE: Battery & Charger sold separately. Lock-off button...
