MELAG MELAdem 53 User Manual

Ion exchanger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
MELAdem
MELAdem
Ion exchanger
EN
Dear customer,
We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated
family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice-
based use. Our focus on innovation, quality and the highest standards of operational reliability has established MELAG
as the world's leading manufacturer in the instrument reprocessing and hygiene field.
You, our customer are justified in your demand for the best products, quality and reliability. Providing
hygiene"
and
"Quality – made in
agement system is subject to close monitoring: one instrument to this end is our annual multi-day audit conducted in ac-
cordance with EN ISO 13485. This guarantees that all MELAG products are manufactured and tested in accordance with
strict quality criteria.
The MELAG management and team.
®
53
®
53 C
Germany", we guarantee that these demands will be met. Our certified quality man-
"competence in

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MELAdem 53 and is the answer not in the manual?

Questions and answers

Related Manuals for MELAG MELAdem 53

Summary of Contents for MELAG MELAdem 53

  • Page 1 Ion exchanger Dear customer, We thank you for your confidence demonstrated by the purchase of this MELAG product. As an owner-run and operated family concern founded in 1951, we have a long history of successful specialization in hygiene products for practice- based use.

  • Page 3: Table Of Contents

    Contents Contents 1 General guidelines ................................ 4 Symbols used.................................. 4 Formatting rules ................................... 4 Disposal .................................... 4 2 Safety..................................... 5 3 Product description................................ 6 Intended use .................................. 6 Mode of functioning................................ 6 Scope of delivery.................................. 6 Views.................................... 7 4 Setup and installation ................................ 8 Removing from the packaging ............................. 8 Installation location................................ 8 Space requirements ................................ 8 Cold water connection................................ 9 Connection of the water treatment unit .......................... 10...

  • Page 4: General Guidelines

    Make sure that you always have access to digital or printed version of the user manual. Should the manual no longer be legible, is damaged or has been lost, you can download a new copy from MELAG down- load centre at www.melag.com.

  • Page 5: Safety

    Setup, installation and commissioning After unpacking the product, check it for transport damage. MELAG recommends that the product should only be set up, installed and commissioned by persons authorised by MELAG. Install and operate the product in a frost-free environment.

  • Page 6: Product Description

    [} page 26]. Scope of delivery Please check the scope of delivery before using the product. Standard scope of delivery ▪ 2x MELAdem 53/MELAdem 53 C mixed-bed resin cartridge ▪ User manual ▪ Record of installation and setup ▪ Warranty certificate ▪ Pipe elbow with drain valve for...

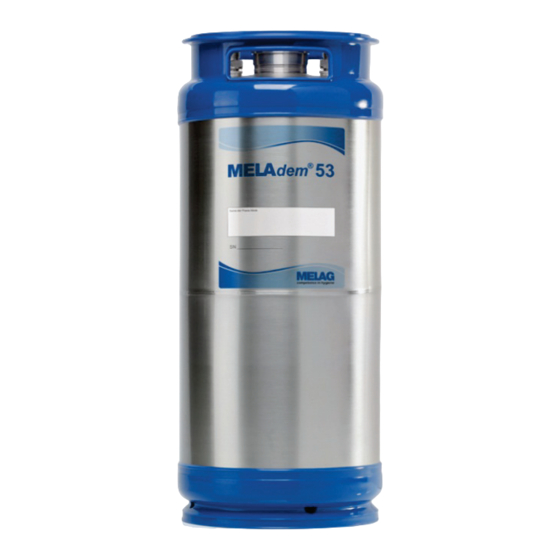

  • Page 7: Views

    3 Product description Views View from the front Polypropylene head ring Label for the serial number and practice address Stainless steel mixed-bed resin cartridge Polypropylene foot ring Top view Connection to cold water pipe of the local drinking water supply (cold water Screw connection opening Degassing screw* Pipe elbow connection for...

  • Page 8: Setup And Installation

    Make sure that the temperature along the inlet hose does not rise above 40 °C. If the room in which the water treatment unit is installed does not have a floor drain, MELAG recommends a leakage water detector (e.g. water stop from MELAG), which shuts off the water supply in the event of damage via a moisture sensor on the floor and with the help of a solenoid valve.

  • Page 9: Cold Water Connection

    (backflow pre-   venter) and anti-vacuum valve, MELAG recommends one of the two alternative connections described in the following. PLEASE NOTE To prevent water damage, MELAG recommends the use of a leakage water detector e.g. the MELAG water stop.

  • Page 10: Connection Of The Water Treatment Unit

    4 Setup and installation Protection with a safety combination HD in accordance with EN 1717 Consumers (devices) must be connected to the tap water system according to EN 1717 so that the tap water system is   protected from pollution. To this end, fit a safety combination HD in accordance with EN 1717 Part 4 to the connection point.

  • Page 11: Water Distributor For Connecting Further Devices

    Water distributor for connecting further devices MELAG recommends the water distributor (art. no. ME69005) for connection of multiple devices. The water distributor is connected to the pipe elbow on the output side of the mixed-bed resin cartridge. An additional washer-disinfector, e.g. a MELAtherm 10 and a maximum of three other (combined) steam sterilizers can be optionally connected to the unused connections.
  • Page 12 Select the connection fittings (pos. 5 and 6) according to the device to be connected to the water distributor. Close off unused openings with a screw plug (pos. 7). Then check all hose connections for leaks. Installation example with multiple devices, see Example 5 - MELAtherm 10, two steam sterilizers and MELAdem 53/53 C [} page 17].

  • Page 13: Installation Examples

    4 Setup and installation Installation examples Example 1 - MELAtherm 10 and MELAdem 53 C The following installation example shows the connection of the MELAdem 53/53 C to the MELAtherm 10/MELAtherm 10 Evolution. 5.2.1 * recommended Pos. Description Art. no.
  • Page 14 4 Setup and installation Example 2 - MELAtherm 10, MELAdem 53/53 C and MELAjet The following installation example shows the connection of the MELAdem 53/53 C to the MELAtherm 10/MELAtherm 10 Evolution and to the MELAjet spray pistol. * recommended Pos.
  • Page 15 Example 3 - MELAtherm 10, steam sterilizer (fixed water connection) and MELAdem 53/53 C The following installation example shows the connection of the MELAdem 53/53 C to the MELAtherm 10/MELAtherm 10 Evolution and to the Vacuklav 40 B+/44 B+ Evolution * recommended Pos.
  • Page 16 4 Setup and installation Example 4 - MELAtherm 10, stand-alone steam sterilizer and MELAdem 53/53 C The following installation example shows the connection of the MELAdem 53/53 C to the MELAtherm 10/MELAtherm 10 Evolution and to the Vacuklav 41 B+/43 B+ Evolution * recommended Pos.
  • Page 17 4 Setup and installation Example 5 - MELAtherm 10, two steam sterilizers and MELAdem 53/53 C The following installation example shows the connection of the MELAdem 53/53 C to the MELAtherm 10/MELAtherm 10 Evolution and to the Vacuklav 41 B+/43 B+ Evolution and MELAquick 12+/12+ p.
  • Page 18 4 Setup and installation Example 6 - Careclave and MELAdem 53/53 C (HD) The following installation example shows the connection of the MELAdem 53/53 C to the Careclave 618 by means of the type HD safety combination. Pos. Description Art. no. contained in...
  • Page 19 4 Setup and installation Example 7 - Careclave and MELAdem 53/53 C (EA) The following installation example shows the connection of the MELAdem 53/53 C to the Careclave 618 by means of the type EA safety combination. Pos. Description Art. no. contained in...

  • Page 20: Recommended Product Combinations

    4 Setup and installation Recommended product combinations Combinations with other MELAG products are recommended in the following. Method 1 Additionally required articles Art. no. ▪ Water branch ME37241 MELAdem 53/ MELAtherm 10 MELAjet MELAdem 53 C (Evolution) Method 2 Additionally required articles Art.
  • Page 21 4 Setup and installation Method 5 Additionally required articles Art. no. ▪ Water distributor for MELAdem 53 ME69005 ▪ Hose PUR, Ø 6 mm, 5 m ME28820 Depending on which devices are max. three additionally connected, you will need other devices other parts, e.g. water inlet distributor, Y-piece or water branch.

  • Page 22: Commissioning

    Do not operate the water treatment unit for a long period unsupervised, e.g. over night. This could void the insurance cover for the building. MELAG accepts no liability for any damage that may occur due to unsupervised operation.

  • Page 23: Maintenance

    Use the second (spare) mixed-bed resin cartridge for the replacement. You can replace the cartridge yourself, or you can get your stockist or an authorised MELAG customer service to replace it. Turn off the cold water tap.

  • Page 24: Regenerating An Exhausted Mixed-Bed Resin Cartridge

    The order form can be found in the download centre of the MELAG website, under manufacturer recommendation. Only applies in Germany. In all other sales areas, the regenerated mixed-bed resin cartridge is returned to your stockist.

  • Page 25: Operating Pauses

    [} page 23]. Screw the yellow caps onto the connection fittings. Use the MELAG transport packaging only for transport. Store and transport the mixed-bed resin cartridge in a temperature of between 2-20°C. In case of cool (max. 20 °C) and dry storage, the mixed-bed resin cartridge can be used up to the given date (see marker disc).

  • Page 26: Technical Data

    8 Technical data 8 Technical data Product type MELAdem 53 MELAdem 53 C Product dimensions Height 57 cm (approx. 61.5 cm incl. pipe 45 cm (approx. 49 cm incl. pipe elbow) elbow) Diameter 24 cm 24 cm Weight (incl. mixed-bed resin)

  • Page 27: Accessories And Spare Parts

    ME37310 Y-fitting for water supply with seal ME37315 Additional water tap with unit combination for mounting on ME58130 existing angle valve Water distributor for MELAdem 53 for parallel connection ME69005 of multiple devices Spare parts Wrench for connections AF30 ME15530 Tap water supply hose EN 1717, 2.5 m...

  • Page 28: Glossary

    Glossary Glossary Conductivity is the ability of a conductive chemical substance or mixture of substances to conduct or transfer energy or other sub- stances or particles in space. Demineralised water Water without the minerals usually found in normal spring or tap water; is produced through ion exchange of normal tap water.
  • Page 30 MELAG Medizintechnik GmbH & Co. KG Geneststraße 6-10 10829 Berlin Germany Email: info@melag.com Web: www.melag.com Original instructions Responsible for content: MELAG Medizintechnik GmbH & Co. KG We reserve the right to technical alterations Your stockist...
