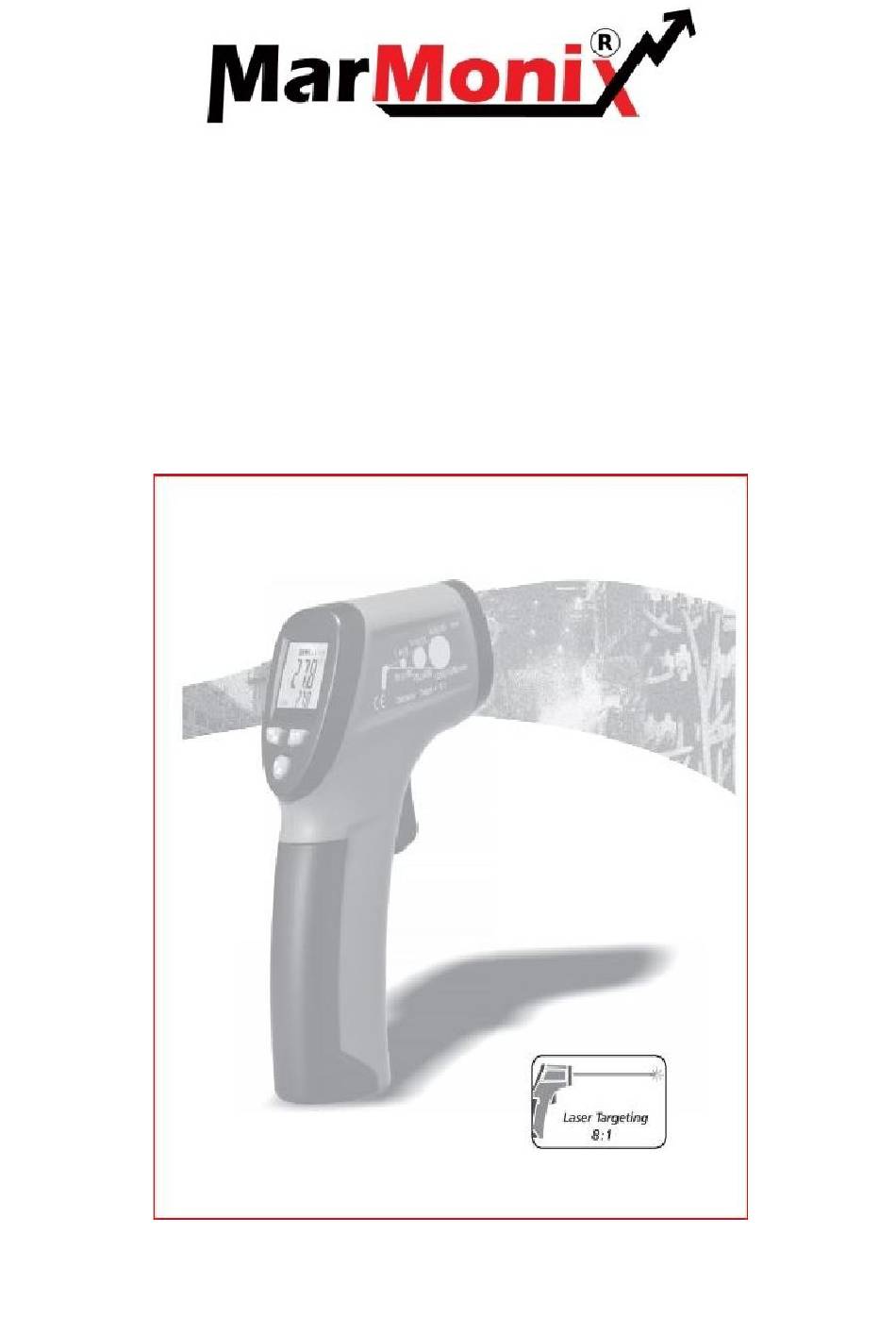

- Page 1 Infrared Thermometer Mini Products Code: MIT-367 User Manual WWW.MARMONIX.CO...
- Page 2 1. Safety Use extreme caution when the laser beam is turned Do not let the beam enter your eye, another person’s eye or the eye of an animal. Be careful not to let the beam on a reflective surface ...
- Page 3 Wide range application: Food preparation, Safety and Fire inspectors, Plastic molding, Asphalt, Marine and screen printing, measure ink and dryer temperature, Diesel and Fleet maintenance. Field of View The Infrared Thermometer’s field of view is 8:1, measuring that if the Infrared Thermometer is 8 inches from the target, the diameter of the object under test must be at least 1 inch.
- Page 4 3. Specifications General Specifications Meas. Ranges -50˚C to 500˚C/ -58˚F to 932˚F Response Time Less than 1 second Over Range Indication LCD will show “------“ Automatic (no indication for positive polarity); Minus (-) Polarity sign for negative polarity. Emissivity 0.95 fixed value D/S=Approx8:1 ratio(D=distance,S=spot) (Has...
- Page 5 Infrared Thermometer Specifications Range Resolution Accuracy -50˚C to 0˚C (-58˚F to 32˚F) ±4˚C/ ±7˚F ±2% of reading or 0˚ to 500˚C (32˚F to 932˚F) 0.1˚C/˚F ±2˚C/±4˚F Note: Accuracy is given 18˚C to 28˚C (64˚ to 82˚C), less than 80%RH. Emissivity: 0.95 fixed value Field of View:...
- Page 6 4. Front Panel Description 1- IR Sensor 2- Laser pointer beam 3- LCD Display 4- ˚C/˚F select key 5- Max/Min select key 6- Laser & Backlight select key 7- Measurement trigger 8- Battery cover 5. Indicator 1- Measuring indication 2- Data hold 3- Laser point 4- Fixed emissivity...
- Page 7 6. Measurement Operation 6-1. Hold the meter by its Handle Grip and point it toward the surface to be measured. 6-2. Pull and hold the trigger to turn the meter on and begin testing. The display will light if the battery is good. Replace the battery if the display does not light.
- Page 8 6-6. The meter will automatically power off on approximately 8 seconds after the trigger is released. Note: Measurement Considerations Holding the meter by its handle, point the IR Sensor toward the object whose temperature is to be measured. The meter automatically compensates for temperature deviations from ambient temperature.
- Page 9 1. Battery Replacement 7-1. As battery power is not sufficient, LCD will display replacement with one new battery type 9V is required. 7-2. Open battery cover, then take out the battery from instrument and replace with a new 9-Volt battery and place the battery cover back. 7.
- Page 10 it. When accuracy is critical, make sure the target is at least twice as large as the spot size. 8-3. Distance a hot spot As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. 8-4.
