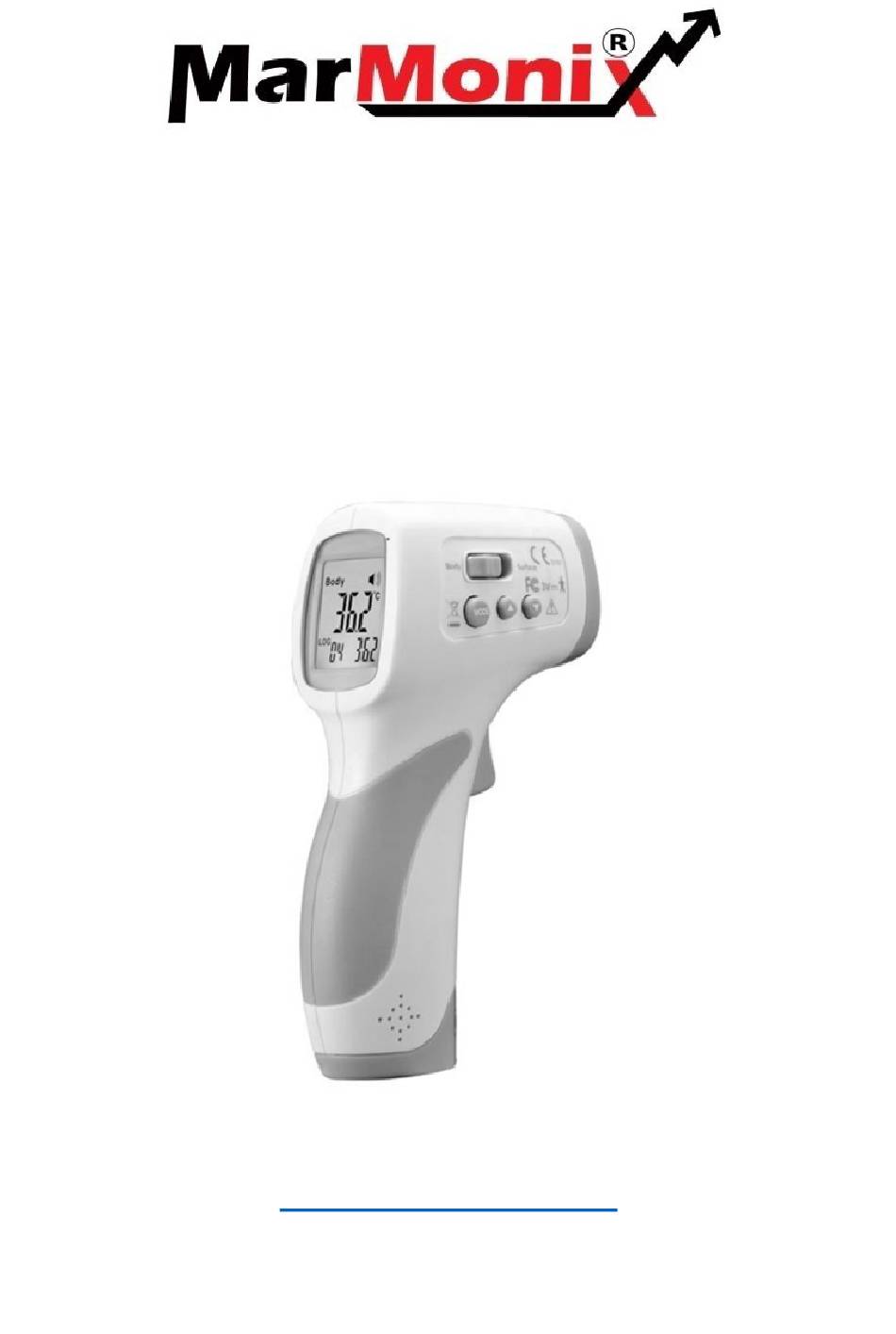

- Page 1 Non-Contact Forehead Infrared Thermometer Products Code: MIB-393 User Manual WWW.MARMONIX.CO...
-
Page 2: Table Of Contents
Contents 1. General Description 2. Safety Information 3. Features 4. Intended Use 5. Configuration 6. Indicator 7. Description of Symbols 8. Technical Specifications 9. Advice for The 1 10. Use 11. Measuring Operation 12. Advice 13. Maintenance and Cleaning 14. Troubleshooting 15. -
Page 3: General Description
1. General Description Non-Contact Forehead IR Thermometer is specially designed to take the body temperature of a person regardless of room temperature. Depending on various skin types and thickness, there may be temperature difference. 2. Safety Information This device must only be used for the purpose ... - Page 4 It may affect the accuracy of measurements when the forehead is covered by hair, perspiration, cap or scarf(see part 10-4) When the body infrared thermometer should be left in that room during 15 to 20 minutes before using Keep the measuring distance as 5cm-15cm(2in- ...
-
Page 5: Features
Do not attempt to repair the device yourself. According to EMC standard, the medical electronic products should be maintained specially. 3. Features Precise non-contact measurements User selectable ˚C or ˚F Selectable body and surface temp Set alarm value ... - Page 6 Measurement Method Normal Temp ˚C Normal Temp ˚F Rectal 36.6 to 38 97.8 to 100.4 Oral 35.5 to 37.5 95.9 to 99.5 Axillary 34.7 to 37.3 94.4 to 99.1 35.8 to 38 96.4 to 100.4 The temperature of the human body varies throughout the day.
- Page 7 4. Configuration 1- IR Sensor 2- LCD Display 3- Mode Selection 4- Down Button 5- Up Button 6- Mode Button 7- Measurement Trigger 8- Battery Cover...
- Page 8 5. Indicator 1- Surface mode symbol 2- Body mode symbol 3- Digital readout 4- Battery symbol 5- The order readout 6- Save data readout 7- Temperature ˚C(Celsius) ˚F(Fahrenheit) scale 8- Buzzer symbol...
-
Page 9: Description Of Symbols
1. Description of Symbols The device is in accordance with Medical Device Directive 93/42/EEC The device is in accordance with FCC Part 15 Subpart B:2007/Radio Frequency Device IC Regulation ICEC-003: 2004 Interference-causing Equipment Standard-Digital Apparatus 3V DC power supply Type B equipment In order to protect the environment, please recycle the battery according to the local regulations... -
Page 10: Technical Specifications
6. Technical Specifications Normal Conditions of Use Display resolution 0.1˚C(0.1˚F) 10 to 40˚C(50 to Operating temperature 104˚F) 0 to 50˚C(32 to Storage temperature 122˚F) Humidity rate ≤85% DC 3V (2x “AA” Power batteries) 149x77x43 mm/ Size 5.9x3x1.7 in (LxWxH) Gross 400g/ Net Weight 172g Measuring Range... -
Page 11: Advice For The 1 St Use
Non-contact Body Infrared Thermometer Precision 32 to 35.9˚C/ 93.2 to ±0.3˚C/ According to 96.6˚F 0.5˚F ASTM Standard E1965-1998 36 to 39˚C/ 96.8 to ±0.2˚C/ (2003) 102.2˚F 0.4˚F 39 to 42.5˚/ 102.2 to ±0.3˚C/ 108.5˚F 0.5˚F 7. Advice For The 1 For stable and reliable results, it is essential to check the Non-contact Body Infrared Thermometer and changes as needed, as follows:... - Page 12 Infrared Thermometer and add the difference, i.e. 1.1˚C(2.2˚F). To do it, press the “MODE” button for 2 seconds, the screen displays F1, press “MODE” button again until you get F3. Press “UP” button in order to add the difference (in our example, 1.1˚C – 2.2˚F). step: To check, take the temperature again using the Non-contact Body Infrared Thermometer.
- Page 13 10-4. Aim towards the forehead (see the diagram below for the positioning), from a distance of 5cm(2in), press the measuring key, the temperature is displayed immediately. Making sure there hair, perspiration, cosmetic or cap covered on the forehead. 10-5. when the room temperature is significant difference, or there is perspiration on the forehead, you can take the temperature behind the ear lobe.
-
Page 14: Measuring Operation
9. Measuring Operation 11-1. Choosing The Temperature Unit – F1 Function Press “MODE” button for 2 seconds, the screen displays: F1. Select “DOWN” for degrees Celsius, “UP” for degrees Fahrenheit. 11-2. Alarm Setup – F2 Menu Press “MODE” touch for 2 seconds, the screen displays: F1. - Page 15 “DOWN” to reduce it by 0.1˚C (0.1˚F). In the cases of seasonal or environmental changes a verification and adjustment should be carried out. Note: This function is only effective Body 11-4. Buzzer ON/OFF – F4(F3) Menu Press “MODE” button for 2 seconds, the screen displays: F1.
- Page 16 Important: The area temperature differs from the internal body temperature. To obtain the internal temperature always use the Body mode. Please make sure to select the Body mode for an internal temperature reading and the Surface mode for an external area reading (bottle, bath, room …). 11-7.
-
Page 17: Advice
compromise the guarantee of your Non-contact Body Infrared Thermometer. Never use rechargeable batteries. Use only batteries for single batteries. Remove the battery from the instrument if it is not required for extended periods of time in order to avoid damage to the thermometer resulting from a leaking battery. -
Page 18: Troubleshooting
Keep the device away from water or other liquid. Store the device in a dry environment, and keep it away from dust and direct sunlight. 12. Troubleshooting If you happen to have one of the following problems while using you’re the non-contact forehead IR thermometer please refer to this breakdown service guide to help resolve the problem. - Page 19 The screen displays the message “LO” When using the Non-contact Body Infrared Thermometer message Lo can show on the screen. The temperature analyzed is under the measuring range selected, either less than 32˚C (90˚F) in Body mode or less than 0˚C (32˚F) in Surface mode. This message displays in various cases –...
-
Page 20: This Appliance Conforms To The Following Standards
This appliance conforms to the following standards: EN12470-5 and ASTM E1965-1998 EN980: Graphical symbols for use in the labeling of medical devices EN 1041: Information supplied by the manufacturer with medical devices EN 60601-1: Medical electrical equipment Part 1: General requirements for safety (IEC:60601-1:1998) ...
