Summary of Contents for MarMonix MTT-302

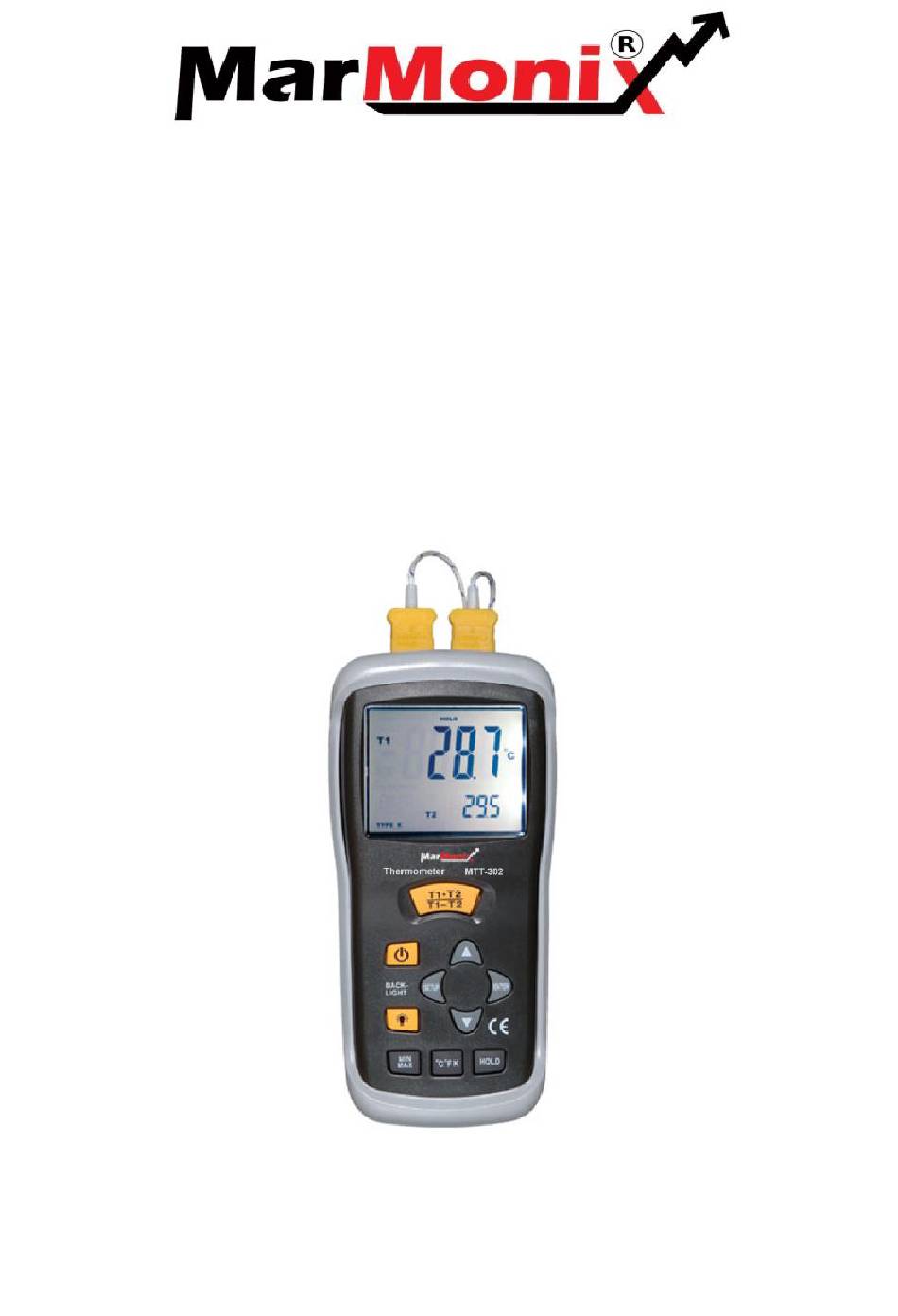

- Page 1 Thermocouple Thermometer Products Code: MTT-302 User Manual WWW.MARMONIX.CO...
- Page 2 (Dual input) contact thermometers offer fast response and laboratory accuracy. These thermometers work with K-type thermocouples and offer 0.1 C/0.1 F resolutions.
- Page 3 1. TYPE K 2.TYPE K 3 . Primary or Secondary Display 4.Secondary Display 5. T1, T2, T1-T2 6. UP 7. ENTER 8. DOWN 9. ON/OFF 10. SETUP BLACKLIGHT 12. MIN MAX AVG 13. HLOD F, K...
-
Page 4: Specifications
Specifications General Specifications Dimensions(without holster) 165mm×76mm×43mm Battery Operating Temperature C to 50 C (4 F to 122 Noncondensing Storage Temperature C to 50 C (14 F to 122 10 Temperature Range: K type thermocouples -200 C to 1372 C (-328 F to 2501 Temperature accuracy T1, T2... - Page 5 Features 1. Large backlit dual display shows any combination of T1, T2, T1-T2 plus MAX, MIN, AVG 2.Relative time clock on MAX MIN and AVG provides a time reference for major events 3.Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy. 4.Readout in 0C, 0 F ,or Kelvin(K) 5.
- Page 6 4.Press to freeze or unfreeze the displayed readings. 5.Press to toggle showing the T1, T2, and T1- T2 (differential temperature measurement) in theprimary or secondary display. 6. Press to start or exit Setup. (See "Changing Setup Options.") 7.Press to scroll to the Setup option you want to change.
-
Page 7: Display Elements
Display Elements Setup is in progress. 2. The thermocouple measurement includes anoffset. See "Changing Setup Options." 3. The displayed readings do not change. 4. Low battery. Replace the batteries. 5. The temperature unit. 6. Primary Display.T1, T2, or T1-T2 reading. -
Page 8: Using The Thermometer
7.Secondary Display: MAX, MIN, AVG, or offset,T1or T2 reading. 8.Time Display: The elapsed time. 9. The thermocouple type. 10. MAX, MIN, AVGdisplay. The sign of Power Off mode forbade. Auto Using the Thermometer 1. Plug the thermocouple(s) into the input connector(s). 2. -
Page 9: Entering Or Exiting Setup
Entering or Exiting Setup When the thermometer is in Setup mode, the displayshows SETUP. Press to start or exit Setup. Changing a Setup Option 1. Press to scroll to the setup option youwant to change. 2. Press to indicate that you want to change thissetting. -
Page 10: Auto Power Off Mode
Remember to reset the offset to 0.0 .You can store individual offsetsfor T1 and T2. Auto Power Off mode The thermometer enters sleep mode (default). That is to say, the meter will automatically shut off after 20 minutes if no buttonpress occurs for 20 minutes. When the auto power off mode is forbade, a letter “n”... -
Page 11: Holding The Displayed Readings
2. Hold or attach the thermocouple(s) to themeasurement location.The temperature reading appears in the primarydisplay. 3.Press to toggle between showing theT1, T2, and T1-T2 readings in the primary orsecondary display. Notes The display shows "- - - -" when a thermocoupleis not connected. -
Page 12: Using The Offset To Adjust For Probeerrors
Readings 1. Press to step through the maximum (MAX),minimum (MIN), or the average (AVG) readings.The elapsed time since entering MIN MAX mode, orthe time at which the minimum or maximum occurred appears on the display. 2. Press button for 3 seconds toto exit MIN MAX mode. -
Page 13: Replacing The Batteries
Replacing the Batteries 1. Turn off the thermometer if necessary. 2. Loosen the screw and remove the battery door. 3. Replace 9V batteries. 4. Replace the battery...
