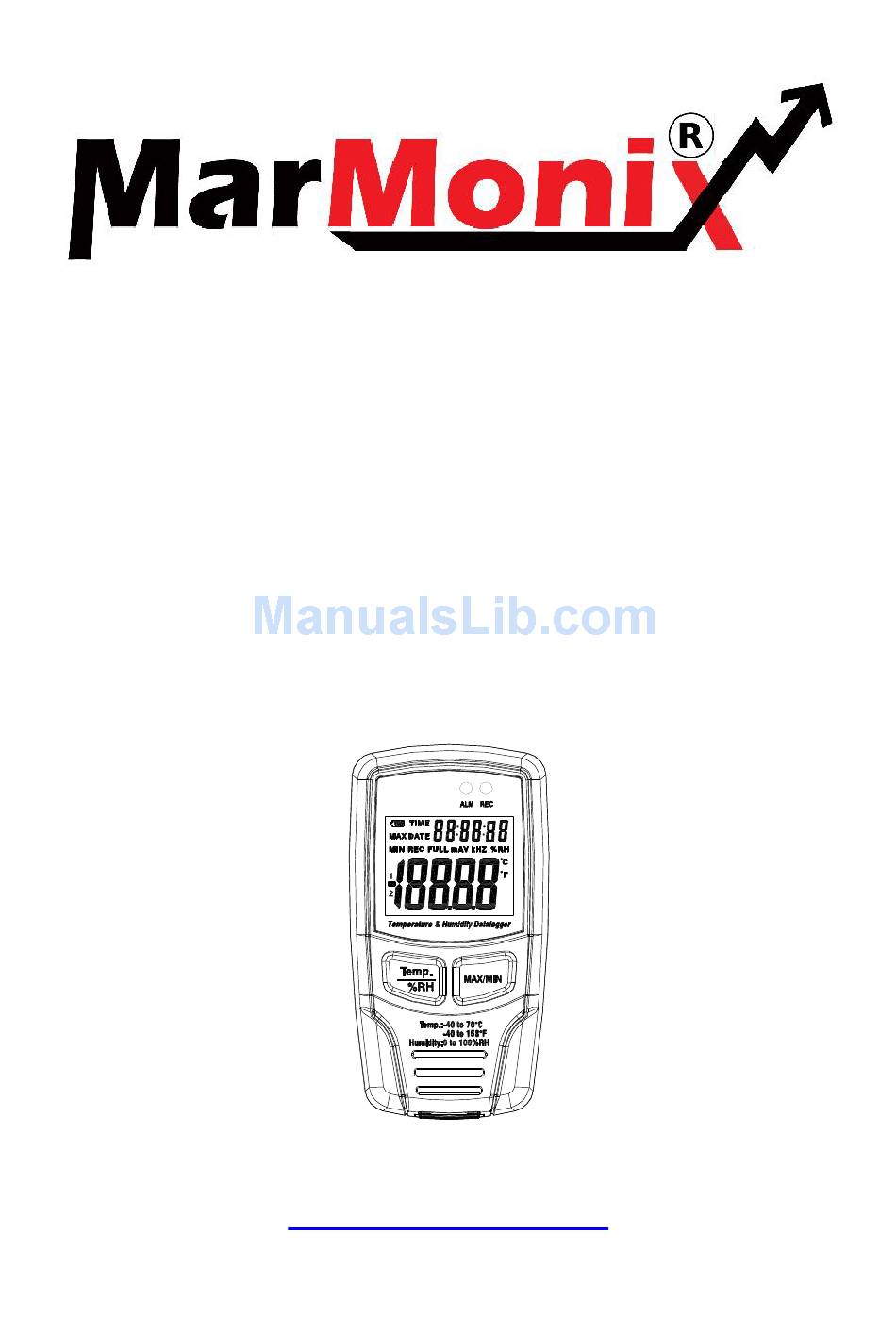

- Page 1 Temperature and Humidity Datalogger Products Code: MHT-40 User Manual WWW.MARMONIX.CO...
- Page 2 Introduction The Temperature & Humidity Datalogger is designed with a high accuracy Temperature & Humidity Sensor. This datalogger is provided with features of high accuracy, fast response and stability. It is widely used for monitoring and collecting data of environment temperature and humidity. Functions and Technical Specifications Functions: You can monitor temperature and humidity values efficiently...
-
Page 3: Operation Instructions
4. Download collected data through PC’s USB; 5. Alarm display if user-defined maximum/minimum values are exceeded; 6. Analysis software used to view graph for logging data； Specification: Resolution 0.1%RH, 0.1℃ Memory 32700 values Measuring cycle 1s to 24h Analysis software 2000/XP/ Vista Operation Instructions: Battery sign... - Page 4 Time and date are automatically switch mode, And it will switch for every 10s display maximum value during measuring display minimum value during measuring this sign showing that the data logger is under recording FULL this sign showing that the memorizer is full, the data logger will stop recording this sign showing that the data logger is measuring humidity...
-
Page 5: Software Installation
value exceeds limit. 15. There will be “-LO-” sign displayed if the temperature/ humidity sensor is not well connected. At this time, please open the back cover and re-install the sensor. Until the correct measurement value is displayed. Software installation 1. - Page 6 Color(16 bit). Main Menu Save - Save the recorded data to the disk. Open - Open a saved file. Correct Time. Datalogger Setup. Download Data from the DATA LOGGER. Show Graph-show the recorded data as a graph. Show List- show the recorded data as a list. Print- Print the graph or the list.
- Page 7 Datalogger Setup Click on the icon on the menu bar. The Setup window will appear as shown below; descriptions for each field in the Setup window are listed directly below the illustration: The Samprate Setup field instructs the DATA LOGGER to log readings at a specific rate.
- Page 8 stop logging(No circulating) when the DATA LOGGER is full. Click on the SETUP button to save changes. Press the DEFAULT button to set the Logger to factory default condition. Press the CANCEL button to abort the setup. Notes: Any stored data will be permanently erased when Setup is finished.
- Page 9 If readings are successfully transferred,the Data graph window will appear. The top field show detail infomation of the readings(Time, Sampling rate, data numbers,Alarm Hi,Alarm Low,Max data,Min data and Avg data), Zoom in: 1. Press the left mouse button and drag a rectangle around the area to be expanded.
- Page 10 Setup the Temp and RH Y Axis. Setup the back ground color,grid color, Temp and RH color. Customize the graph window . Allows the user to select which data to view as a trace. Add or remove grid lines from x and y axes. Mark Points: Places dots on the traces for the actual data points, breaking up the continuous nature of a trace.
- Page 11 It shows specific time and data. File save and open 1. Click the icon to open the file save dialog box. 2. Name the file and save it with the default extension. The file will be saved with the “.record” extension to be reopened in the HT Datalogger software program and also as a “.xls”file to be opened in spreadsheet program or other word processing program.
