PAX IM700 - Contactless Card Reader Quick Setup Guide

Contents

Please make sure the following items are included with your IM700 contactless card reader. If any items are missing, contact your dealer.

Product Description

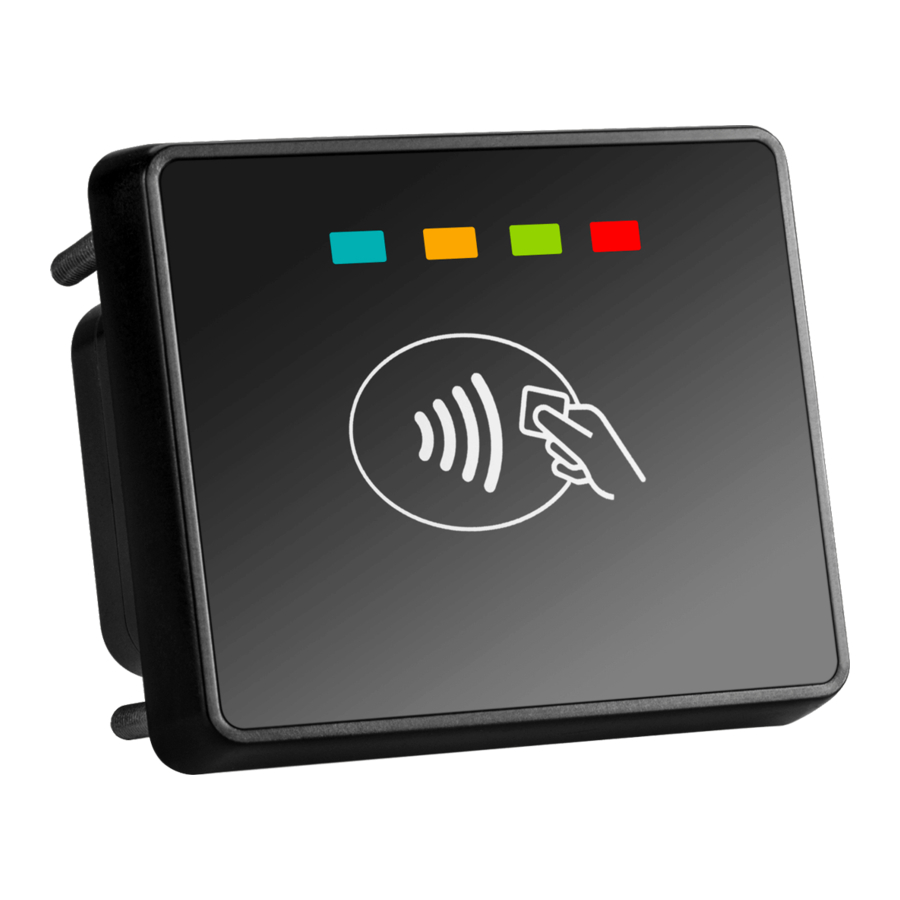

Front View

Back View

View from all sides

Installation

SAM Card

IM700 SAM card slots

Slide the cover to the side to remove it, then open the mount and insert the card into the slot with the contact facing down and the clipped edge facing the top right. Then lock the mount and replace the cover.

Device Connection

Connecting the IM700 to an IM300 unit

The IM700 is linked to an IM300 encrypting PIN pad through a USB Type B port using a USB cable as shown in Figure 5. The IM300 both controls and powers the IM700. Either of the two Type A USB ports on the IM300 can be used to connect the IM700, do not connect the IM700 through the Mini-B port.

Instructions

Switching the device on and off

Switch on: Link the IM700 to an appropriate power terminal via USB or RJ45 (make sure to have the appropriate voltages and pinouts).
Switch off: Disconnect the IM700 from the power terminal it is connected to.

Card Detection

IM700 interfacing with a contactless card

In order for the IM700 to detect and interface with contactless cards, the user holds a contactless card with the face of the card roughly 4 cm or less from the face of the device as shown in Figure 6. The orientation of the card does not matter so long as it is roughly facing the front of the device.

LED indicators

The different LED indicators show the following states for the IM700:

• All LEDs being in the off state means that the device is unpowered or powering up and connecting to a terminal.
• The yellow LED indicates that the device is processing payments or other services.
• The green LED indicates that the device has just finished processing the transaction.
• The red LED indicates that the device has just encountered an error.

Environmental Conditions

Maintenance and Usage

1. Do not damage the USB or RJ45 cables; if either are damaged, seek a replacement.
2. Make sure the terminals of the USB or RJ45 cables provide the appropriate voltages at the proper pins.
3. Do not insert unknown materials into any port on the IM700, this may cause serious damage to the device.
4. If repairs are required, please contact a professional technician instead of attempting them on your own.
5. The IM700 is designed for outdoor use; however, during normal use its surface should still be keep clear of dirt and possible liquid contaminants.
6. While the IM700 is designed to resist ingress of dust and liquids, it is not designed to resist pressurized liquids such as water hoses. Keep the back of the device away from dust and liquids as much as possible.
