SkyBound HOME BACKYARD RECTANGULAR TRAMPOLINE Assembly And Installation Manual page 12

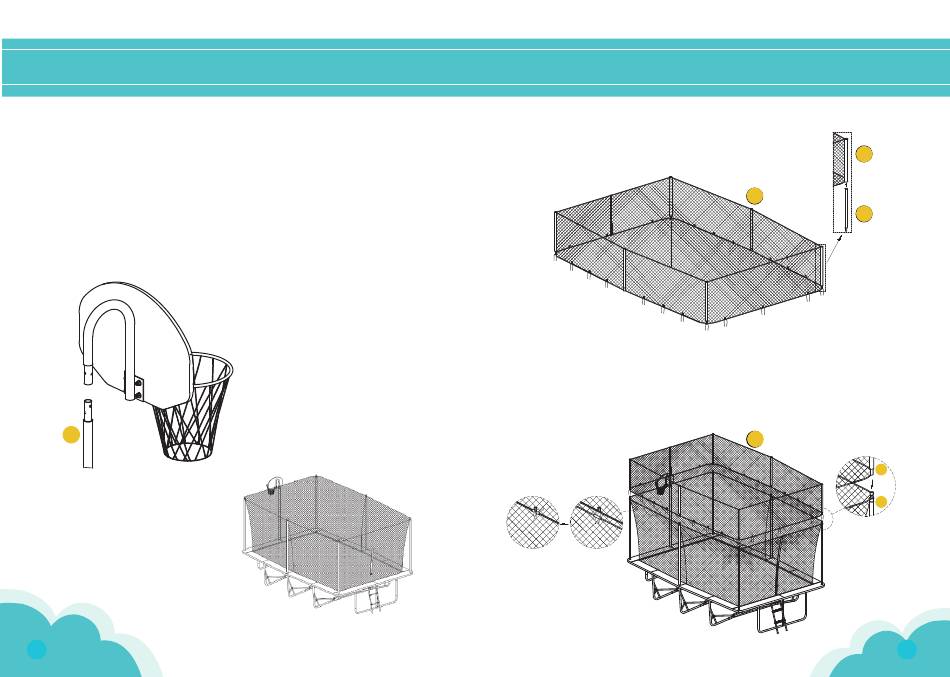

ASSEMBLY INSTRUCTIONS
Connect the assembled basketball hoop system with Tube #15.
The connection is achieved when you hear the latching and
clicking of the spring button.
Note: We provide assembly diagram for basketball hoop
system separately!
Please refer to the separate manual for this part assembly.
15
15
21
ASSEMBLY INSTRUCTIONS
Slide 6pcs Tube #17 into the sleeves of
Upper net #32 as the following photo shows
connect 6pcs Tube #14 with 6pcs Tube #17
as the following photo shows
A2 A1
A
32
32
32
32
17
17
32
32
17
17
B
14
14
B
22
