PoE Media Converter User Installation Guide
Introduction

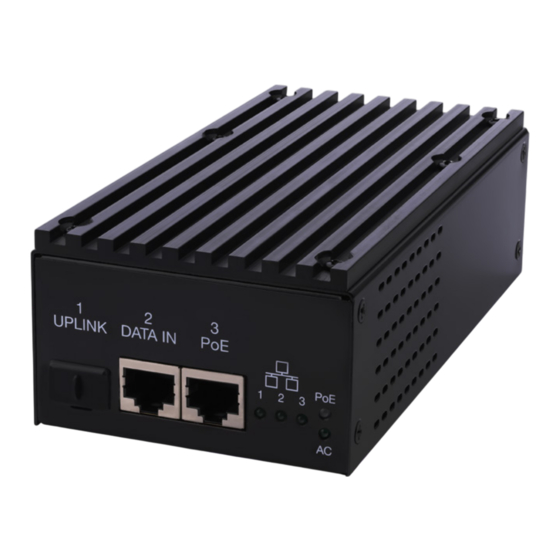

Microchip's family of PD-9601GCS/AC is a Power over Ethernet (PoE) Media converter that injects power over
data-carrying Ethernet cabling.
PD-9601GCS/AC complies with IEEE
output power of 90W. These power levels allow usage by a new range of Ethernet-based applications such as PTZ
IP cameras, Wi-Fi 802.3ac Access Points, Point-to-Point wireless radios, and more. The PD-9601GCS/AC Data and
Power Output port is designed to carry gigabit Ethernet data and power over a standard CAT5e cable, delivered
through 4-pair wires (Alt A: 3,6 (+) and 1,2 (-) ; Alt B: 4,5 (+) and 7,8 (-)).
CAUTION: The PD-9601GCS/AC is designed for indoor applications only.
Features
PD-9601GCS/AC PoE Media converter offers the following important features:
•
1-port PoE output
•
Guaranteed power of 90W
•
Compact product size
•
Universal AC input: 100 V
•
Standard compliance: IEEE 802.3 af/at/bt
©
2022 Microchip Technology Inc.
and its subsidiaries
®
®
802.3bt, IEEE
802.3at and IEEE
to 240 V
AC
AC
User Guide
PD-9601GCS/AC
®
802.3af standards, with guaranteed
DS50003278A-page 1
Advertisement
Table of Contents
Related Manuals for Microchip Technology PD-9601GCS/AC
Summary of Contents for Microchip Technology PD-9601GCS/AC
-
Page 1: Introduction
PD-9601GCS/AC PoE Media Converter User Installation Guide Introduction Microchip’s family of PD-9601GCS/AC is a Power over Ethernet (PoE) Media converter that injects power over data-carrying Ethernet cabling. ® ® ® PD-9601GCS/AC complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af standards, with guaranteed output power of 90W. -
Page 2: Table Of Contents
The Microchip Website..........................13 Product Change Notification Service......................13 Customer Support............................13 Microchip Devices Code Protection Feature....................13 Legal Notice..............................13 Trademarks..............................14 Quality Management System........................15 Worldwide Sales and Service........................16 User Guide DS50003278A-page 2 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 3: Standards And Safety Guidelines
Table 1-1. Part Number Definition Symbol Description Represents the bandwidth (10/100/1000 Mbps). Media converter has AC input. Electromagnetic Compatibility Approvals Microchip’s PD-9601GCS/AC Media converter complies with the following standards: • FCC Part 15: Class B • EN55032: Class B •... -
Page 4: Safety Information
A voltage mismatch can cause equipment damage and may pose a fire hazard. If the voltage indicated on the label is different from the power outlet voltage, do not connect the PoE Media converter to this power outlet. User Guide DS50003278A-page 4 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 5: Poe Media Converter Hardware Installation
Installation of Optical to PoE Application Install the optical fiber cable to the PoE Media converter according to following procedures. Insert the SFP transceiver into the SFP cage (uplink port). The PD-9601GCS/AC supports multi and single mode transceiver. Connect the optical fiber cable to the transceiver. -
Page 6: Three Ports Converter Installation
The product supports simulated use of all 3 ports such as two data inputs and one PoE output which acts as a switch. Insert the SFP transceiver into the SFP cage (uplink port). The PD-9601GCS/AC support both multi and single mode transceiver. -
Page 7: Troubleshooting
Read installation instructions before connecting the PD-9601GCS/AC to its power source. • There is no ON/OFF switch on the Media converter, simply plug the PD-9601GCS/AC into an AC power source. • Verify that a PoE Ready Ethernet-compatible device is connected. - Page 8 Verify that the fiber optic cable is compatible with the transceivers type. Verify that the fiber optic cable doesn't exceed the transceivers type maximum length. Try reconnecting the fiber optic cable to the transceivers. User Guide DS50003278A-page 8 © 2022 Microchip Technology Inc. and its subsidiaries...
-
Page 9: Specifications
PD-9601GCS/AC Specifications Specifications The following sections provide detailed unit specifications of PD-9601GCS/AC. Physical Specifications Table 4-1. Dimensions Parameter Dimensions In mm In inch Height 3.15 Width 1.97 Length 6.29 Table 4-2. Physical Specifications Part Number Weight PD-9601GCS/AC 950 g (2.1 lb) Environmental Specifications Table 4-3. -
Page 10: Ethernet Interface
Supports Single-Mode and Multi-Mode transceivers. Output (Data and Power Out): Ethernet 10/100/1000Base-T + 54V RJ45 female socket, with DC voltage on wire 4-pairs: 1-2 and 3-6; 4-5 and 7-8. User Guide DS50003278A-page 10 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 11: Contacting Technical Support
If you encounter any problems while installing or using this product, consult Microchip technical support team through the website or contact on the following number: USA/Canada Telephone: +1 877 480 2323 Internet: www.microchip.com/support User Guide DS50003278A-page 11 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 12: Revision History
PD-9601GCS/AC Revision History Revision History Revision Date Description 03/2022 Initial Revision. User Guide DS50003278A-page 12 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 13: The Microchip Website
It is your responsibility to ensure that your application meets with your specifications. Contact your local Microchip sales office for additional support or, obtain additional support at www.microchip.com/en-us/support/ design-help/client-support-services. User Guide DS50003278A-page 13 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 14: Trademarks
The Adaptec logo, Frequency on Demand, Silicon Storage Technology, Symmcom, and Trusted Time are registered trademarks of Microchip Technology Inc. in other countries. GestIC is a registered trademark of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries. -
Page 15: Quality Management System
PD-9601GCS/AC Quality Management System For information regarding Microchip’s Quality Management Systems, please visit www.microchip.com/quality. User Guide DS50003278A-page 15 © 2022 Microchip Technology Inc. and its subsidiaries... -
Page 16: Worldwide Sales And Service
Tel: 631-435-6000 Sweden - Stockholm San Jose, CA Tel: 46-8-5090-4654 Tel: 408-735-9110 UK - Wokingham Tel: 408-436-4270 Tel: 44-118-921-5800 Canada - Toronto Fax: 44-118-921-5820 Tel: 905-695-1980 Fax: 905-695-2078 User Guide DS50003278A-page 16 © 2022 Microchip Technology Inc. and its subsidiaries...
