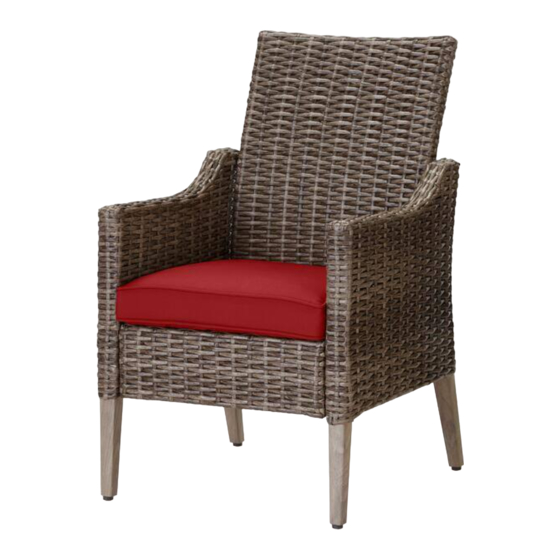

Summary of Contents for HAMPTON BAY ROCK CLIFF STEEL WICKER FRS81146-2PK

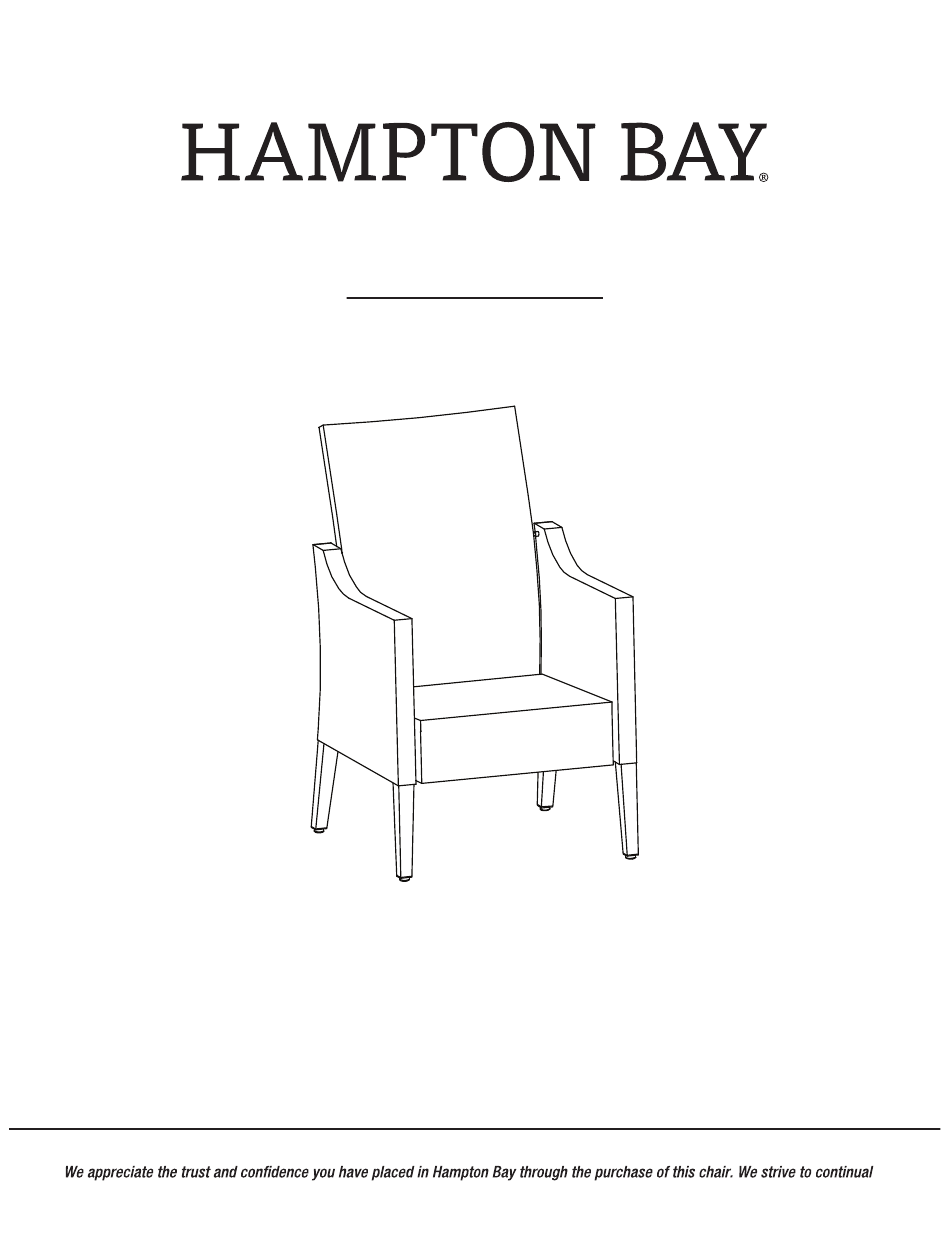

Page 1
8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM THANK YOU create quality products designed to enhance your home. Visit us onlineto see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warr anty for the fabric. WHAT IS NOT COVERED Its remains the customer’s responsibility for freight and packaging charges to and from our service center.
Pre-assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x20 Combination Bolt M6x40 Combination Bolt 12+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Chair Back Left Arm Right Arm Chair Seat Seat Cushion...
Assembly Attaching The Chair Back To The Left Arm NOTE: Loosely tighten all bolts using the hex wrench (CC). Place the left arm (B) upside down on a soft surface. Insert the pin on chair back (A) into the hole on the rear end of left arm (B).
Page 6
Assembly (continued) Attaching The Chair Seat To The Chair Back NOTE: Loosely tighten all bolts using the hex wrench (CC). Attach the chair seat (D) to the chair back (A) using M6x40 combination bolts (BB). Attaching The Left And Right Arm To The Chair Back NOTE: Loosely tighten all bolts using the hex wrench (CC).
Assembly (continued) Attaching The Chair Seat To The Right Arm NOTE: Loosely tighten all bolts using the hex wrench (CC). Attach the chair seat (D) to the right arm (C) using M6x20 combination bolt (AA) and M6x40 combination bolts (BB). Tightening All The Bolts Once all of the bolts are in place, fully tighten all the bolts using hex wrench (CC).
Page 8
Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certification use only...
