Item # 1012 136 696

Model # FRS81553G-ST

Scan for easy 3D instructions

Tap. Zoom. Rotate

interactive instructions on the BILT app.

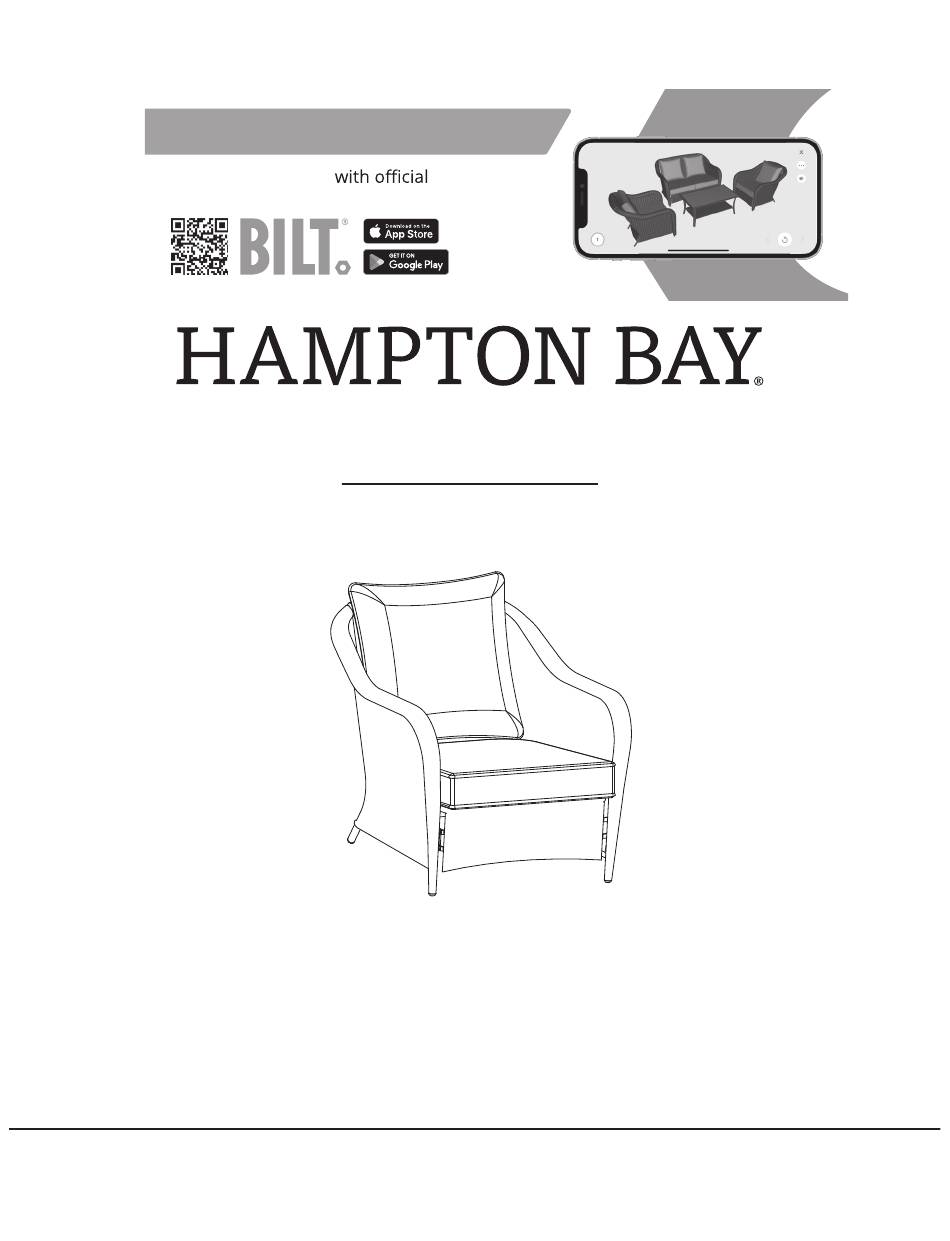

USE AND CARE GUIDE

PRIMROSE 4PC DEEP SEATING SET - CHAIR

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

THANK YOU

We appreciate the trust and conﬁdence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create

quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

Thank you for choosing Hampton Bay!

Need help?

Do you have a question about the PRIMROSE FRS81553G-ST and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY PRIMROSE FRS81553G-ST

Page 1 THANK YOU We appreciate the trust and conﬁdence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
Page 3 Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.
Page 4 Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Chair Seat Chair Back Back Cushion Seat Cushion...
Page 5 Assembly Attaching the Chair Seat to the Right Arm Place the right arm (B) on a soft surface. Insert the hooked metal plate on the chair seat (C) to the metal plate with holes on the right arm (B) and slide in place, then use M6x25 twist knob (AA) to screw the two metal plates together, as shown below.
Page 6 Assembly (continued) Attaching the Chair Back to the Right Arm Attach the chair back (D) to the right arm (B) using M6x45 combination bolt (BB), as shown below. Do not tighten the bolt at this step. Attaching the Assembled Chair Seat to the Left Arm Place the left arm (A) on a soft surface.
Page 7 Assembly (continued) Attaching the Chair Back to the Left Arm Attach the chair back (D) to the left arm (A) using M6x25 twist knob (AA), as shown below. Do not fully tighten the twist knob at this step. Attaching the Chair Back to the Left Arm Attach the chair back (D) to the left arm (A) using M6x45 combination bolt (BB), as shown below.
Page 8 Assembly (continued) Checking the Chair Turn the chair right side up. Ensure all connections are secure before use.
Page 9 Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Store the chair in a dry sheltered place when not in use. Keep the chair away from ﬁre, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certiﬁcation use only...
