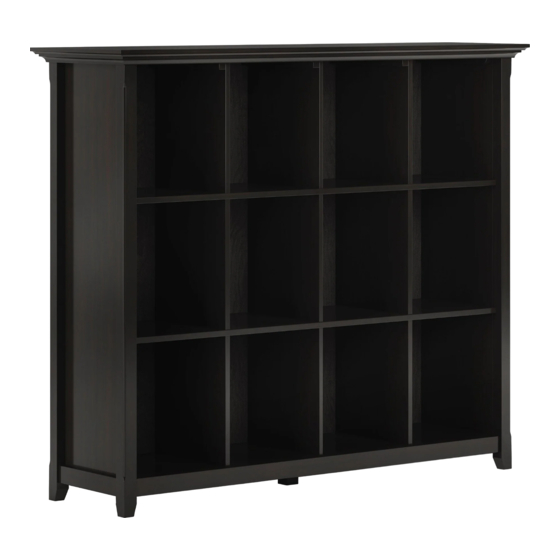

- Page 1 Amherst / Halifax / Washington 12 Cube Storage Bookcase Model # AXCAMH22-HIC...
- Page 2 Great quality is a right. Thank you for shopping with Simpli Home, America's top brand for high-value furniture. It's time to register your product warranty. It's quick and easy. And you'll be happy you did. ü Activate your 1-year warranty ü...
- Page 3 Review your product and collect rewards! Thank you for your purchase! We hope you enjoy it. We’d love your feedback. Please share a review and get instant rewards! simpli-home.com/product-review Share photos and get your cash back! Send us images or share them on social and qualify for instant rewards.
- Page 4 For Fastest Customer Service: Open your phone’s camera. Point your phone’s camera at the QR code to scan. Click on the pop up. You’ll be taken to our customer service page. Fill the form with your order information and issue. Submit form.
-
Page 5: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. Safety Information CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product. -
Page 6: Care And Maintenance
Care & Maintenance This furniture is designed for indoor use. Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions. - Page 7 Pre-Assembly Information Model # AXCAMH22-HIC Part Description LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BOTTOM SHELF BOTTOM DIVIDER (L&R Same) TOP DIVIDER (L&R Same) QTY 1 QTY 6 QTY 3 MIDDLE BACK PANEL LEFT BACK PANEL RIGHT BACK PANEL QTY 2 QTY 1 QTY 1...
- Page 8 Pre-Assembly Information Model # AXCAMH22-HIC Hardware Description ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY WOOD DOWEL M6 X 30mm CAM LOCK QTY 1 Ø8 X 30mm QTY 39 QTY 24 SETS QTY 9 PHILLIPS SCREW PHILLIPS SCREW ROUND HEAD M4 X 30mm FURNITURE TIP OVER RESTRAINT M4 X 15mm...
- Page 9 Components - Key Diagram Model # AXCAMH22-HIC...
- Page 10 Assembly Model # AXCAMH22-HIC Step 1 1. Attach six Cam Lock Pins 2 into pre-drilled holes on each part AL , AR , H . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 11 Assembly Model # AXCAMH22-HIC Step 2 1. Insert one Dowels 3 into guide holes on parts D , E . 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 12 Assembly Model # AXCAMH22-HIC Step 3 1. Align Wood Dowel with guide hole on part H and attach parts D to part H . 2. Use two Allen Key Screws 1 to attach each Divider D through guide holes from part H to pre-drilled holes of parts D . 3.
- Page 13 Assembly Model # AXCAMH22-HIC Step 4 1. Align Cam Lock Pin with guide holes and attach parts E to part H . 2. Insert two Cam Locks 2 into guide holes on each part E . 3. Use Phillips screwdriver to secure Cam Locks. Do not over-tighten.
- Page 14 Assembly Model # AXCAMH22-HIC Step 5 1. Repeat Step 3 for the other Top Shelf H .
- Page 15 Assembly Model # AXCAMH22-HIC Step 6 1. Repeat Step 4 for the other three Dividers E .
- Page 16 Assembly Model # AXCAMH22-HIC Step 7 1. Align Wood Dowel with guide hole on part C and attach part C to parts E . 2. Use two Allen Key Screws 1 to attach each Divider E through guide holes from part C to pre-drilled holes of parts E . 3.
- Page 17 Assembly Model # AXCAMH22-HIC Step 8 1. Align Cam Lock Pin with guide holes and attach parts AL , AR to parts H . 2. Use six Allen Key Screws 1 to attach part C to parts AL , AR . 3.
- Page 18 Assembly Model # AXCAMH22-HIC Step 9 1. Use three Allen Key Screws 1 to attach each part BL , BR , D through guide holes from each part BL , BR , D to pre-drilled holes of Top A . 2.
- Page 19 Assembly Model # AXCAMH22-HIC Step 10 1. Align Bottom Support Leg I with pre-drilled holes on back of Bottom Shelf C . Use Phillips Screwdriver to tighten four Phillips Screws 5 .
- Page 20 Assembly Model # AXCAMH22-HIC Step 11 Note: Warning Label 1. Attach the Back Panels FL , FR , G to back frame using Phillips Screws Round Head 6 through guide holes from Back Panels. 2. Use Phillips Screwdriver to tighten screws. Do not over-tighten.
- Page 21 Furniture Tip Over Restraint Assembly WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not included in the hardware pack.
- Page 22 Furniture Anti-Tipping Restraint Instructions Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
