TRANSFORMER 230/460 VOLTAGE SETTINGS
Pump motors are factory set at 230 VAC. The transformer
(Figure 6) of this control box must be set to the voltage
requirements of the pump in use. Refer to the attached
wiring diagram located inside the "Control Box" or reference
Figure 7 and Figure 8. Use the two supplied jumper tabs to
set the transformer to the required output voltage.
PAGE 16 —ST3050D SUBMERSIBLE PUMP • OPERATION AND PARTS MANUAL — REV. #4 (01/11/23)

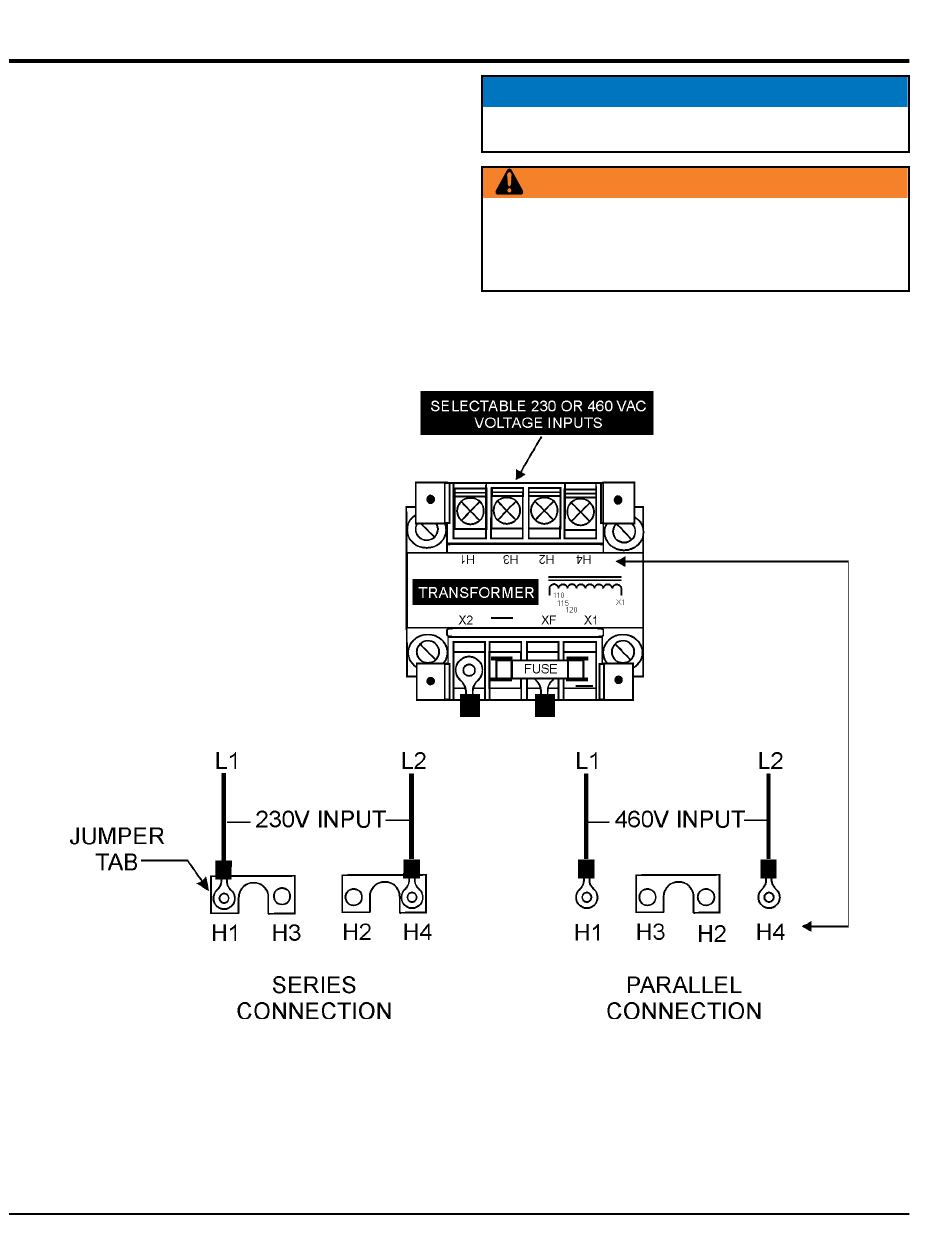

Figure 6. Transformer AC Voltage Settings (Jumper Tabs)

TRANSFORMER WIRING (CB200)

NOTICE
Transformer setting are for CB200 control box only!
WARNING
ALWAYS make sure that the transformer is set to the
correct output voltage. Incorrect transformer output
voltage settings can cause severe damage to the pump.
