WMA MP3 CD Player/HD-Radio Receiver with Full Dot Matrix Motorized Display
CQ-CB8901U
Operating Instructions
SRC
CQ-C8401U
TEXT
Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com
¡Please read these instructions (including "Limited Warranty" and "Customer Services Directory") carefully before using this product
and keep this manual for future reference.
YEFM285625A
ND1204-1015
Printed in China
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-CB8901U
Summary of Contents for Panasonic CQ-CB8901U
-
Page 1: Operating Instructions

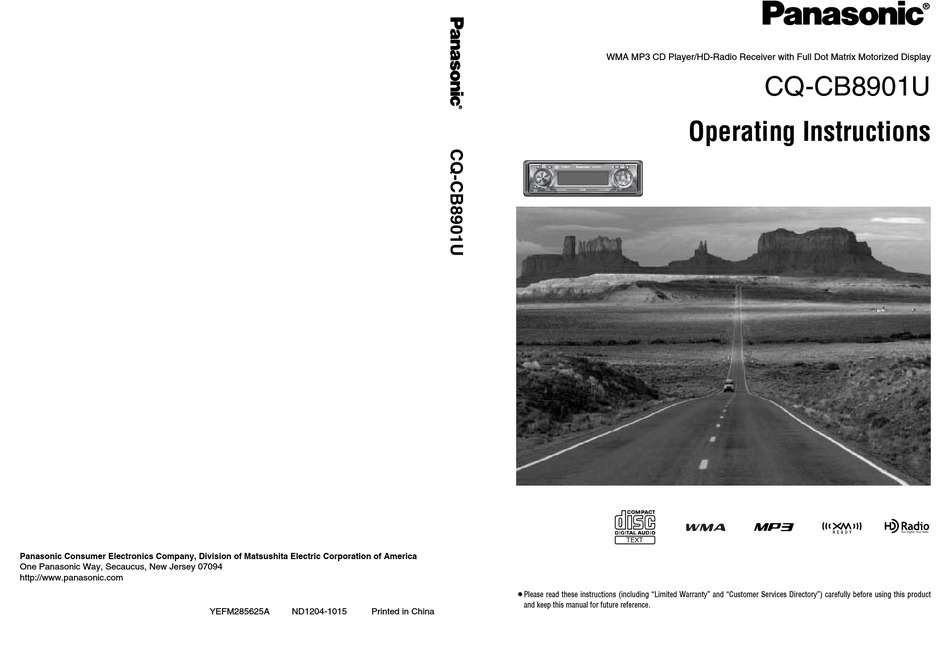

CQ-CB8901U Operating Instructions CQ-C8401U TEXT Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way, Secaucus, New Jersey 07094 http://www.panasonic.com ¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference. -
Page 2: Safety Information
They contain instructions about how to use the sys- from improper connections and operations. The meanings of tem in a safe and effective manner. Panasonic assumes no the pictographs are explained below. It is important that you responsibility for any problems resulting from failure to fully understand the meanings of the pictographs in order to observe the instructions given in this manual. -
Page 3: Service And Warranty
For Carry-In or Mail-In Service in the United States, call 1-800-211- PANA (7262) or visit Panasonic Web Site: http://www.panasonic.com For assistance in Puerto Rico, call Panasonic Sales Company (787)- 750-4300 or fax (787)-768-2910. LIMITED WARRANTY LIMITS AND EXCLUSIONS This warranty ONLY COVERS failures due to defects in materials and workmanship, and DOES NOT COVER normal wear and tear or cos- metic damage. -
Page 4: Before Reading These Instructions
Mounting Collar and Trim Plate are mounted on the main unit at shipment. CQ-CB8901U Features Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully POWER... -
Page 5: Table Of Contents
HD Radio broadcasts can be enjoyed only in those areas in the United States where the broadcasts can be received. This means that the HD Radio feature cannot be used outside the U.S. or in areas inside the U.S. where these broadcasts cannot be receive. ( as of December 2003) CQ-CB8901U Contents Safety Information ¡... -
Page 6: Controls Layout
Note: This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded) VOLUME P·SET PUSH SEL Select DISC (FOLDER) SQ Sound Quality MENU SRC Source DIM Dimmer PWR Power CQ-CB8901U MUTE D/A (Digital/Analog) SBC·SW Super Bass Control·Subwoofer DISP CQ-CB8901U Preset TILT OPEN (eject) -
Page 7: Preparation
Phone number: 1-800-852-9696 to use an optional extension cord (XMDPAN100) that is Note: Refer to the operating instructions for the XM produced by XM exclusively for Panasonic products. receiver for details. Getting Started It is required to sign up to become an XM Satellite Radio subscriber. -
Page 8: General
Press [ ] (Release). (The face plate disen- gages with a click when it is removed.) CQ-CB8901U The face plate auto- matically closes after a lapse of 5 seconds while it is open. The power is automatically turned off while the unit is active. - Page 9 SBC-SW on and off. Off (default) Note: If ON is selected, the settings of subwoofer level adjustment and subwoofer low pass filter are activated. page 34) CQ-CB8901U CQ-CB8901U Auxiliary (AUX 2) When connecting CD Changer, DVD Changer page 30, 32)
- Page 10 If the influence mentioned above causes distortion to the audio signal, readjust bass/treble or volume. ¡ Each SQ (except FLAT) level is changeable. page CQ-CB8901U CQ-CB8901U 6. CLUB 5. JAZZ 4. VOCAL Lights when activated. You can make fine adjustments to the currently selected SQ presetting in ROCK, POP, VOCAL, JAZZ, or CLUB in accordance with your car type or taste.
-
Page 11: Radio
Hold down [D/A] for 2 sec. or more to select the Auto seeking or Digital seeking. AUTO Seeking: Seeks analog or digital broadcast sta- tions. (Default) Digital Seeking: Seeks digital broadcast stations. CQ-CB8901U CQ-CB8901U Select a station. Frequency adjustment []] (TUNE): Lower [[] (TUNE): Higher Note: Hold down for 0.5 sec. -
Page 12: Cd Player
¡ “NO TEXT” is displayed when there is no information on the disc. CQ-CB8901U ¡ This unit does not support 8 cm (3”) discs. ¡ Do not use irregularly shaped discs. CQ-CB8901U ¡ Do not use discs that have a seal or label attached. -
Page 13: Mp3/Wma Player
¡ ID3/WMA tag information is displayed for the album name and title/artist name. CQ-CB8901U Notes: CQ-CB8901U ¡ Refer to the section on “Notes on MP3/WMA” ¡ A disc which has both CD-DA data and MP3/WMA data on it may not be reproduced normally. (For example, it may be repro- Select a desired portion. - Page 14 Caution: Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the MP3/WMA format. This may not only produce noise from the speaker dam- age, but also damage your hearing. CQ-CB8901U Display Information Displayed items ¡ CD-TEXT ¡...
-
Page 15: Xm Tuner
To connect the XM receiver (XMD1000), it is ¡ required to use an optional extension cord that is produced by XM exclu- (XMDPAN100) sively for Panasonic products. Notes: ¡“ RADIO ID” is displayed with channel 0. ¡“ UPDATING” is displayed during the update of the identification code. -
Page 16: Disc Changer
The unit recognizes the magazine and starts playing automatically. Note: The changer is automatically turn on when the magazine is inserted. Track number Disc number Changer indicator (CD changer) (DVD changer) CQ-CB8901U Notes: ¡ CQ-CB8901U ¡ ¡ Select a desired portion. Disc selection [}]: Next disc... - Page 17 The unit recognizes the magazine and starts playing automatically. Note: The power is turned on automatically when inserting a magazine. Chapter number Disc number Changer indicator Disc type CQ-CB8901U Notes: ¡ CQ-CB8901U ¡ Select a desired portion. Disc selection [}]: Next disc...
-
Page 18: Audio Setting
: Up w : Down Note: Do not activate SQ and Bass/Treble at same time to avoid causing sound distortion. CQ-CB8901U Function Setting Adjustment to display on the FUNCTION menu SQ preset change (Adjustable frequency: 60, 160, 400, 1 k, 3 k, 6 k, 16 k (Hz), Setting range: –12 dB to +12 dB, 2 dB Step) -
Page 19: Display Setting
You can edit the moving images and still images that are initially stored in the unit. You also can use the data that is downloaded from the Panasonic Web site and the data that is stored with a digital camera or other devices and processed with exclusive software, Still image setting IMAGE STUDIO. -
Page 20: Customize The Display
If the described suggestions do not solve the problem, it is ¡ The default image exists on the Panasonic Web site. If recommended to take the unit to your nearest authorized Panasonic you would like to restore it, download the image from Servicenter. - Page 21 Perform the speaker wiring in accordance with the wiring diagram. not settled. The safety device works. The power fails Call the store where you purchased the unit, or your nearest Panasonic unintentionally. Servicenter. Antenna installation or wiring of antenna cable is faulty.
-
Page 22: Error Display Messages
Possible cause Digital broadcasts cannot be received because something is wrong. (However, analog broadcasts can still be received.) Call the store where you purchased the unit or the nearest Panasonic Servicenter to ask for repairs. Cannot receive XM satellite radio. -
Page 23: Notes On Discs
Your product is designed and manufactured to ensure the minimum of maintenance. Use a soft cloth for routine exterior cleaning. Never use benzine, thinner, or other solvents. If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Servicenter. Warning ¡... - Page 24 ❏ Required Tools You’ll need a screwdriver and the following: 12 V DC Electrical Side-Cut Test Bulb Tape Pliers CQ-CB8901U Installation ❏ Dashboard Specifications THICKNESS MIN. 4.75 mm {3/16”} MAX. 5.56 mm {7/32”} 53 mm {2 3/32”} 182 mm {7 5/32”} ❏...
- Page 25 5. Insulate all exposed wires to prevent short circuit- ing. 6. Secure all loose wires after installing the unit. 7. Please carefully read the operating and installation instructions of the respective equipment before connecting it to this unit. CQ-CB8901U Installation Supplied Hardware Item Diagram Q’ty Mounting Collar Mounting Bolt (5 mmø)
- Page 26 ¡Remember, if your car has drive computer or a navigation computer, the data of its memory may be erased when the battery terminals are disconnected. Fuse (15 A) Refer fuse replacement to your nearest authorized Panasonic Servicenter. Do not try fuse replacement by yourself.
- Page 27 RCA Cord CQ-CB8901U System Upgrade Example: Connecting with an XM Receiver XMD1000 (Option) *Please understand that Panasonic is not liable for modification of specifications, shape, name, and the like of the optional XM receiver and digital adapter without prior notice because they...
-
Page 28: Specifications
¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts. ¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth. CQ-CB8901U Specifications Power Supply DC 12 V (11 V - 16 V), Test Voltage 14.4 V, Negative Ground...
