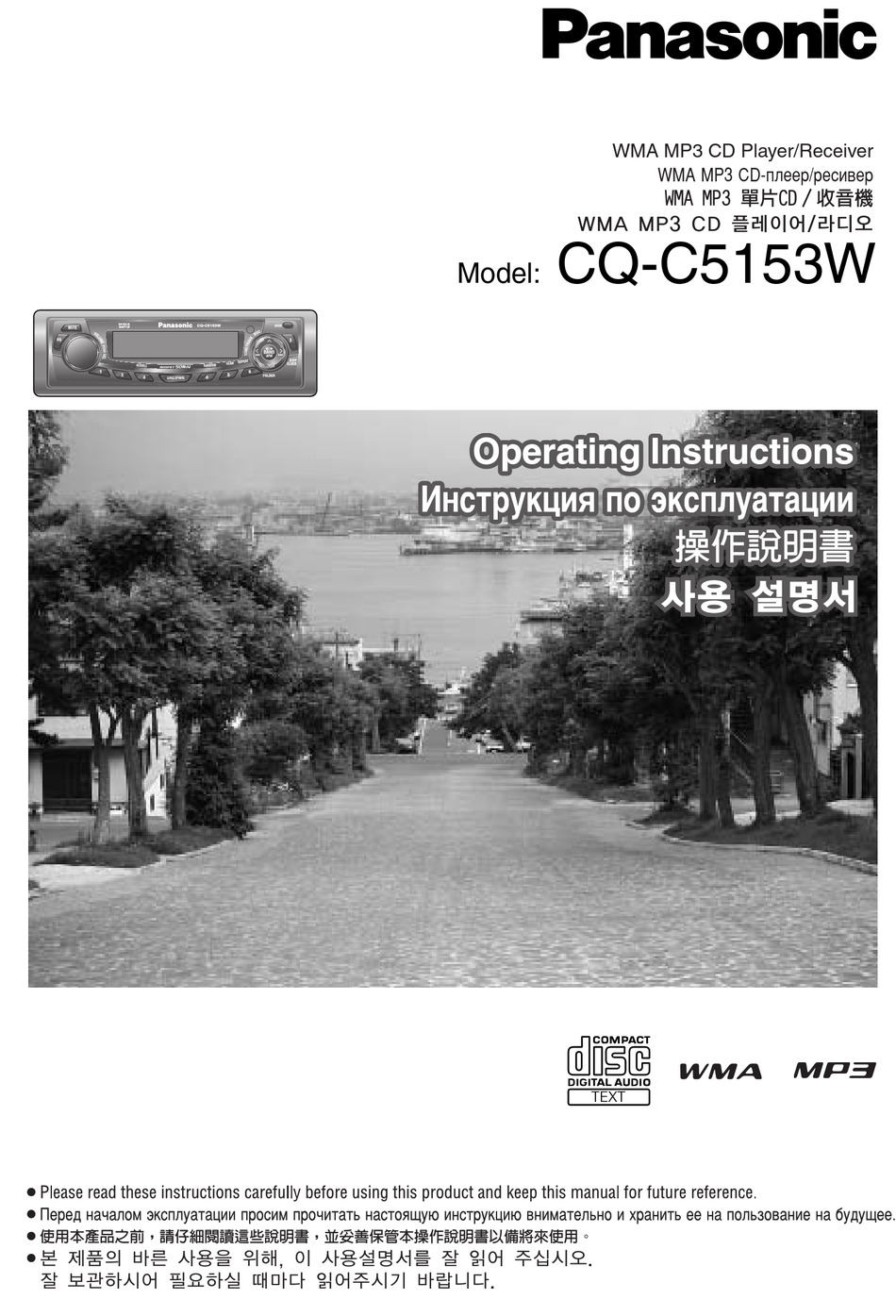

- Page 1 WMA MP3 CD Player/Receiver WMA MP3 CD-ÔÎÂÂ/ÂÒË‚Â WMA MP3 單片CD／收音機 WMA MP3 CD 플레이어/라디오 CQ-C5153W Model: CQ-C5153W TEXT...
-
Page 2: Safety Information
They contain instructions about how to use the sys- from improper connections and operations. The meanings of tem in a safe and effective manner. Panasonic assumes no the pictographs are explained below. It is important that you responsibility for any problems resulting from failure to fully understand the meanings of the pictographs in order to observe the instructions given in this manual. - Page 3 If any part of your body or clothing comes into contact with For maximum safety, have it installed by your dealer. battery liquid, wash it with plenty of water. Panasonic is not liable for any problems resulting from your ● If battery liquid comes into contact with your eyes, wash own installation of the unit.
- Page 4 THIS PRODUCT IS A CLASS I LASER PRODUCT. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CQ-C5153W...
-
Page 5: Table Of Contents
Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. -
Page 6: Accessories
BAND BAND BAND MUTE MUTE MUTE Mute/attenuation Pause [0] to [9] RANDOM SCAN REPEAT Random Scan Tune Repeat Track/file selection TUNE TUNE Track/folder/file/disc Fast forward/fast reverse DISP DISP DISP NUMBER number input Display Folder/disc selection CAR AUDIO Function setting CQ-C5153W... -
Page 7: Preparation
Pull it out in the direction of the Back side arrow using a tough pointed object. ¡Battery Information: Battery Type: Panasonic lithium battery (CR2025) w Put a battery in the case with (+) side (Included in the remote control) facing up. -
Page 8: General
General [SQ] (Sound Quality) Radio Mode Display Page 10) [MUTE] (Mute/attenuation) SQ indicator Level Meter Page 20) CQ-C5153W [D] (DISP: Display) (CLOCK) [SRC/PWR] Remote control sensor Page 6) [VOLUME] (Source/Power) Power Volume Set your car’s ignition switch to the ACC or ON position. - Page 9 System Upgrade Guidebook (when connected) (Sound source connected to the Port 4 port 4 of Expansion Module System Upgrade Guidebook Note: ¡For information about connectable devices, refer to the System Upgrade Guidebook or the instruction manual for each device. CQ-C5153W...
-
Page 10: Radio
Radio []] [[] (TUNE) (Stereo) indicator CQ-C5153W [D] (DISP) (Display) [SRC/PWR] (Source) [BAND] (APM: Auto Preset Memory) Preset Buttons [1] to [6] (Preset station) Display Change Radio Mode Press [D] (DISP) to change the display as follows. Press [SRC/PWR] to select the radio mode. - Page 11 5 seconds each. (scanning) Preset number Note: ¡ To stop scanning, press one of the buttons from [1] to [6]. Preset Station Calling q Select a band. Previous page) w Press one of the preset buttons from [1] to [6]. CQ-C5153W...
-
Page 12: Before Disc Playback
Close the face plate manually. r Playback will start automatically after recognizing the data of the loading disc. Page 14 about MP3/WMA Player) Disc Eject q Press [OPEN]. w Press [u] and take the disc out. e Close the face plate manually. CQ-C5153W... -
Page 13: Cd Player
CD Player [s] [d] (a / f) (Track selection/fast forward/fast reverse) indicator indicator CQ-C5153W [D] (DISP) (Display) : Pause/play) [BAND] ( y / 5: [6] (REPEAT) [5] (SCAN) [4] (RANDOM) [3] (SCROLL) [SRC/PWR] (Source) When CD is in the player... -
Page 14: Mp3/Wma Player
[{] / [}] (FOLDER) (Folder selection) : Pause/play) [BAND] ( y / 5 CQ-C5153W [D] (DISP) (Display) [6] (REPEAT) [5] (SCAN) [4] (RANDOM) [3] (SCROLL) [SRC/PWR] (Source) When a disc is in the player *ID3/WMA Tag Setting Press [SRC/PWR] to select the MP3/WMA player mode Press and hold [3] (SCROLL) for more than 2 seconds. - Page 15 Note: ¡To suspend direct selection, press [DISP] . ¡Random, Folder Random, Scan, Folder Scan, Repeat and Folder Repeat plays are canceled once [#] is pressed. Press and hold [5] (SCAN) again for more than 2 sec- onds to cancel. CQ-C5153W...
-
Page 16: Notes On Mp3/Wma
MP3/WMA format. This may not only pro- Microsoft Corporation in the duce noise from the speaker damage, but United States and/or other also damage your hearing. countries/regions. CQ-C5153W... - Page 17 It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval of copyright holder except enjoying yourself personaly. No warranty Above description complies with our investigations as of September 2006. It has no warranty for reproducibility and displayability of MP3/WMA. CQ-C5153W...
-
Page 18: Audio Settings
Audio Settings Turn [VOLUME]. (Press [VOL }] or [VOL {] on the remote control unit.) CQ-C5153W Press [VOLUME] (PUSH SEL: select). (Press [SEL] on the remote control unit.) [D] (DISP) (Return to the regular mode.) Volume Press [VOLUME] (PUSH SEL) to open the menu. - Page 19 : Down Turn [VOLUME]. q : Up w : Down Turn [VOLUME]. q : Right enhanced w : Left enhanced Turn [VOLUME]. q : Front enhanced w : Rear enhanced Turn [VOLUME]. q : Up w : Down CQ-C5153W...
-
Page 20: Function Settings
Press [VOLUME] (PUSH SEL) . You can select mute or attenuation. Page 8) Default: MUTE External Mute You can mute the current source while Panasonic navigation Press [VOLUME] (PUSH SEL). system provides voice guidance or car telephone conversation is in progress. Default: 0... - Page 21 : No sound (Mute) (Default) Turn [VOLUME]. : No sound (Default) When External Mute is : 15 steps decrease activated (Example: MUTE LV 0) : 10 steps decrease : Unchanged Turn [VOLUME]. : Skip disabled (Default) : Skip enabled CQ-C5153W...
-
Page 22: Anti-Theft System
¡ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth. ¡ To avoid damaging the face plate, do not push it down or place objects on it while it is open. CQ-C5153W... -
Page 23: Fuse
Fuse If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Service Center. Warning ¡ Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest authorized Panasonic Service Center. -
Page 24: Troubleshooting
Please refer the checking and the repair to professionals. ¡Never try to repair the unit by yourself Panasonic shall not be liable for any accidents arising out of neglect because it is dangerous to do so. of checking the unit or your own repair after your checking. - Page 25 Central sound is aPerform the speaker wiring in accordance with the wiring diagram. not settled. The power of the unit The safety device works. fails unintentionally. aConsult your dealer, or your nearest Panasonic Service Center. ■ Radio Problem Possible cause Possible solution Antenna installation or wiring of antenna cable is faulty.
- Page 26 For MP3/WMA, Sound skipping or refer to the description about MP3/WMA. noise Playing VBR (Variable Bit Rate) files may cause sound skipping. aPlay Non-VBR files. Note: ¡Refer to “Notes on MP3/WMA” Page 16) CQ-C5153W...
- Page 27 The sensor is exposed to direct sunlight. (The remote control unit may not be operable when the sensor is exposed to direct sunlight. In such a case, the system is not faulty.) aBlock off sunlight to the sensor. CQ-C5153W...
- Page 28 Create a new disc if necessary. ( Page 16) To next track/file automatically A WMA file can be copyrighted. The file protected by copyright is not playable. ( Page 16) After 5 seconds To next track/file automatically CQ-C5153W...
-
Page 29: Specifications
: 0.01 % (1 kHz) Wow and flutter : Below measurable limits Channel separation : 75 dB Note: ¡Specifications and design are subject to modification without notice due to improvements. ¡Some figures and illustrations in this manual may be different from your product. CQ-C5153W... - Page 30 CQ-C5153W Matsushita Electric Industrial Co., Ltd. Web Site : http://panasonic.net YEFM285935A NT1106-1126 Printed in China...
- Page 31 Lock cancel plate êÂÁËÌÓ‚‡fl ‚ÚÛÎ͇ è·ÒÚË̇ ÒÌflÚËfl ÒÚÓÔÓÂÌËfl Matsushita Electric Industrial Co., Ltd. 橡膠墊圈 鎖定解除板 Web Site : http://panasonic.net 고무 부싱 로크 캔슬 플레이트 YEFM294314 NT1106-0 Printed in China w, e and y consist of a set. (YEP0FZ5698) w, e Ë y ÒÓÒÚ‡‚Îfl˛Ú ÍÓÏÔÎÂÍÚ. (YEP0FZ5698) w, e 和...
- Page 32 (Orange)/(é‡ÌÊ‚˚È)/(橙色)/(주황색) External Mute Lead To the Navi Mute lead of the Panasonic car navigation system or car telephone mute lead. Ç̯ÌËÈ ‚˚‚Ó‰ÌÓÈ ÔÓ‚Ó‰ ‰Îfl ÔË„ÎÛ¯ÂÌËfl Á‚Û͇ ä ‚˚‚Ó‰Û Navi Mute ‡‚ÚÓÏÓ·ËθÌÓÈ Ì‡‚Ë„‡ˆËÓÌÌÓÈ ÒËÒÚÂÏ˚ «Panasonic» ËÎË ‚˚‚Ó‰Û ‰Îfl ÔË„ÎÛ¯ÂÌËfl Á‚Û͇ ‰Îfl ‡‚ÚÓÏÓ·ËθÌÓ„Ó ÚÂÎÂÙÓ̇.
- Page 33 System Upgrade Guidebook àÌÒÚÛ͈Ëfl ÔÓ ‡Ò¯ËÂÌ˲ ÒËÒÚÂÏ˚ CQ-C5153W/C3453W Model: ¡ For upgrading your system, read this manual carefully before use. This manual should be retained for future reference after read. ¡ ÑÎfl ‡Ò¯ËÂÌËfl LJ¯ÂÈ ÒËÒÚÂÏ˚ ÔÓÒËÏ Ú˘‡ÚÂθÌÓ ˜ËÚ‡Ú¸ ‰‡ÌÌÛ˛ ËÌÒÚÛÍˆË˛ Ô‰ ËÒÔÓθÁÓ‚‡ÌËÂÏ ‡ÔÔ‡‡Ú‡. чÌÌÛ˛...
- Page 34 They contain instructions about how to use the sys- from improper connections and operations. The meanings of tem in a safe and effective manner. Panasonic assumes no the pictographs are explained below. It is important that you responsibility for any problems resulting from failure to fully understand the meanings of the pictographs in order to observe the instructions given in this manual.
- Page 35 Do not disassemble, recharge, heat or short the battery. Do For maximum safety, have it installed by your dealer. not throw a battery into a fire or water. Panasonic is not liable for any problems resulting from your own installation of the unit. In case of battery leakage ●...
-
Page 36: Before Reading These Instructions
The optional adapter (Conversion Cable for DVD/CD You can connect the optional Bluetooth Hands-Free Kit Changer: CA-CC30N) allows you to connect the optional (hands-free phone system) (Hands-Free Kit featuring Panasonic CD changer unit (CX-DP880). For details, refer Bluetooth technology: CY-BT100N). For details, refer to the ®... - Page 37 System upgrade sample Head Unit CQ-C5153W/C3453W CD Changer (CX-DP880, option) System-up Connector Only 1 unit Conversion Cable for DVD/CD Changer (CA-CC30N, option) iPod Direct cable for iPod Up to 4 units (CA-DC300N, option) Cellular Phone CY-BT100U CY-BT100U Expansion Module Hands-Free Kit featuring...
-
Page 38: General
General CQ-C5153W [SRC/PWR] (Source) Connectable Optional Unit Source Selection Press [SRC/PWR] to change the source. CD changer (CX-DP880) Page 8) Radio iPod Page 10) CD Player Bluetooth hands-free kit (CY-BT100N) Page 12) MP3/WMA Player ¡ This item is not selectable by pressing [SRC/PWR], but activated by receiving an incoming call. - Page 39 When the Expansion Module (CY-EM100N) is used: Source Selection Notes on Expansion Module (CY-EM100N) Press [SRC/PWR] to change the source. Devices connectable to the System-up Connector (ports 1 to 4) of the Expansion Module (CY-EM100N, option) and their simultaneously-connectable quantities are shown Radio below.
-
Page 40: Cd Changer Control
[5] (SCAN) [SRC/PWR] (Source) [4] (RANDOM) [6] (REPEAT) Display Change ¡CD changer functions are designed for optional Panasonic CD changer unit. (CX-DP880) Press [D] (DISP) . Preparation: ¡Connect the CD changer, and load a magazine (CDs). Track/play time/disc CD Changer Mode... - Page 41 Note: ¡ Trouble may occur while playing CD-Rs. Refer to the section on “Notes on CD/CD Media (CD-R, CD-RW, CD- ROM)” Operating Instructions) ¡ This unit does not support the following through the CD changer. ¡CD-RW playback. (except when CX-DP880 is connected) ¡MP3/WMA playback.
-
Page 42: Ipod Control
Control indicator indicator [s] / [d] (a / f) (File selection/fast forward/fast reverse) [{] / [}] (Playing mode selection) CQ-C5153W [BAND] ( : Pause/play) y / 5 [3] (SCROLL) [D] (DISP) (Display) [SRC/PWR] (Source) [VOLUME] (PUSH SEL: select) [4] (RANDOM) - Page 43 Note: ¡ iPod photo/ver. 1.2.1 ¡ The iPod equipped with a dock connector is exclusively ¡ iPod mini/ver. 1.4.1 connectable. Further information about the controllable ¡ iPod nano/ver. 1.2 iPod is described below. * Operation check has been completed with software Controllable iPod/software version available at the end of September, 2006.
-
Page 44: Bluetooth Hands-Free Kit
Bluetooth Hands-Free Kit Turn [VOLUME]. (Press [VOL ] or [VOL ] on the remote control unit.) [D] (DISP) (Return to the regular mode) CQ-C5153W Press [VOLUME] (PUSH SEL: select). (Press [SEL] on the remote control unit.) [3] (SCROLL) Connection of the optional Bluetooth hands-free kit allows Bluetooth hands-free kit Mode users to talk on a handsfree cellular phone in a car. - Page 45 Switch Unit (CY-BT100N) [Hang-on] [Hang-up] Adjustment of Ring Volume Back to Previous Source ¡ When the ringtone is the same as that of the cellular Press [Hang-up] on the Bluetooth hands-free kit. phone, Adjust the ring volume by rotating [VOLUME] when a call is coming in.
-
Page 46: Troubleshooting
Please refer the checking and the repair to professionals. ¡Never try to repair the unit by yourself Panasonic shall not be liable for any accidents arising out of neglect because it is dangerous to do so. of checking the unit or your own repair after your checking. - Page 47 iPod Control Error Display Messages Display Possible cause Possible solution The iPod cable was disconnected in the iPod mode. Reconnect the iPod cable. Your iPod has no playable music. Download playable music to your iPod.
