1056849COM
Park hill over the bed desk
Espresso/ Black
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
Easy
Assembly Difficulty Meter
Tough
Advertisement
Related Manuals for Ameriwood HOME 1056849COM
Summary of Contents for Ameriwood HOME 1056849COM

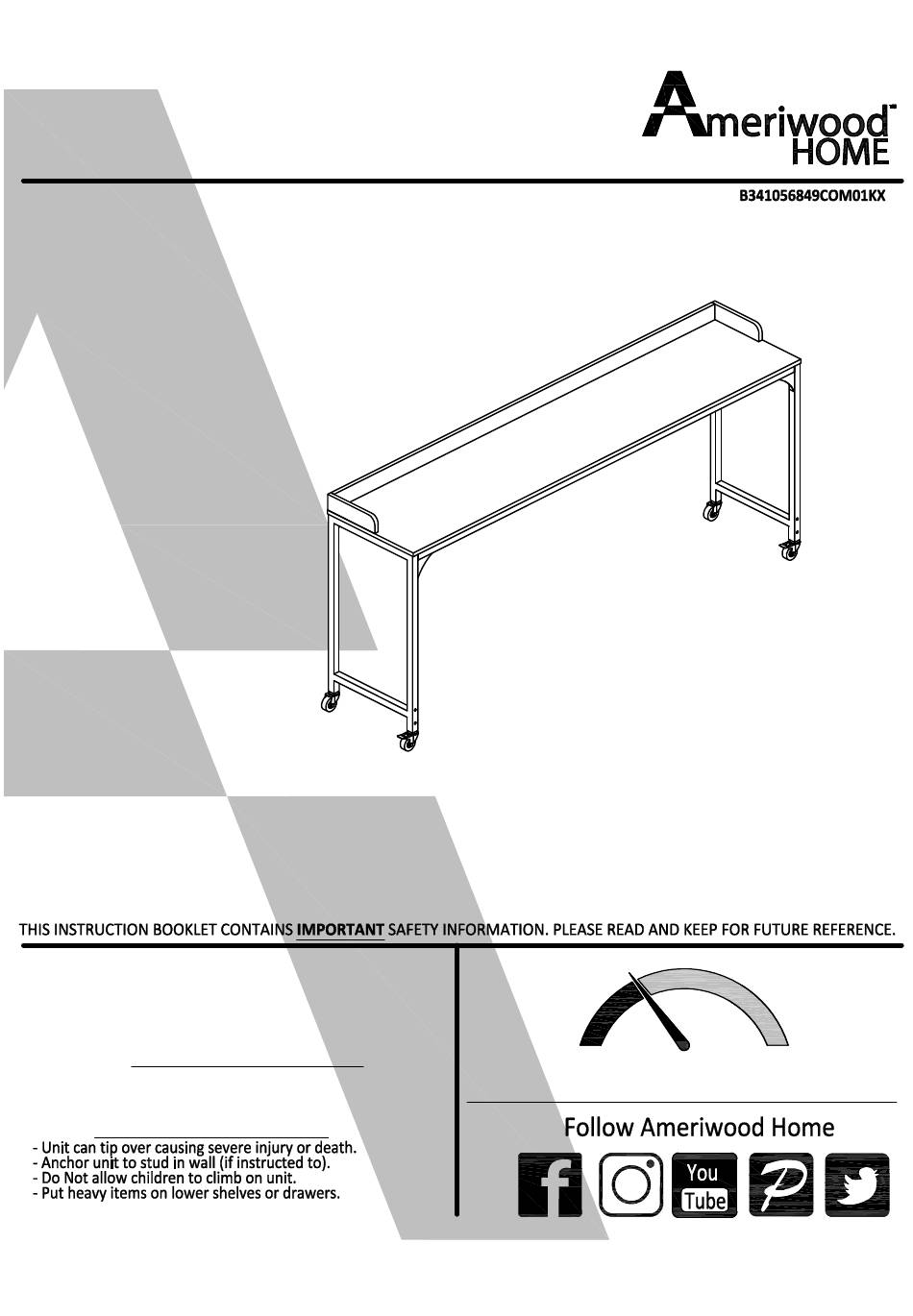

- Page 1 1056849COM Park hill over the bed desk Espresso/ Black Date of Purchase ___ / ___ / ___ Lot Number: Do Not Return This Product! Contact our customer service team for help first. Call: 1-800-489-3351 (toll free) Monday-Friday 9am - 5pm CST Easy Visit: www.ameriwoodhome.com...
-
Page 2: Helpful Hints
Contact Us! Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 ESTIMATED ASSEMBLY TIME: 1 HOUR ameriwoodhome.com... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not Actual Size Top panel Leg frame T1056849010KX T1056849021KX QTY:2PCS Support tube Rear rail Left rail T1056849031KX T1056849040KX T1056849050KX QTY:2PCS Right rail Adjustable leg Angle code T1056849060KX T1056849071KX T1056849080KX QTY:4PCS QTY:4PCS ameriwoodhome.com... - Page 5 Board Identification Not Actual Size ameriwoodhome.com...
-
Page 6: Part List
Hardware Bag Reference Number: 21056849COM1KX Part List Actual Size Ø4X25 mm Ø8X30 mm Ø1/4"X35 mm Ø1/4"X12 mm × 10 × 10 × 8 × 28 Wood dowel Bolt Bolt Screw TKX1005 TKX1342 TKX1033 TKX1311 M8X20mm × 2 Cam bolt TKX1191 Not Actual Size Ø15X12 mm ×... - Page 7 STEP 1 Ø8X30 mm M8X20mm × 8 × 2 1.1 Attach (5) to (E), (F) as illustrated. 1.2 Attach (1) to (E), (D), (F) as illustrated. ameriwoodhome.com...
- Page 8 STEP 2 × 2 × 2 2.1 Attach (9) to (G) as illustrated. 2.2 Attach (10) to (G) as illustrated. ameriwoodhome.com...
- Page 9 STEP 3 Ø15X12 mm × 2 × 2 Proper orientation of CAM LOCK 3.1 Attach (E), (F) to (D) with (6) as illustrated. 3.2 Use (7) to cover cam lock hole. ameriwoodhome.com...
- Page 10 STEP 4 Ø4X25 mm × 10 4.1 Attach (A) to (D), (E) & (F) with (4) as illustrated. ameriwoodhome.com...
- Page 11 STEP 5 Ø1/4"X12mm × 4 5.1 Attach (C) to (B) with (3) as illustrated. ameriwoodhome.com...
- Page 12 STEP 6 Ø1/4"X12mm × 16 6.1 Attach (H) to (B), (C) with (3) as illustrated. ameriwoodhome.com...
- Page 13 STEP 7 Ø1/4"X35 mm × 10 7.1 Attach (B), (C) to (A) with (2) as illustrated. ameriwoodhome.com...
- Page 14 STEP 8 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 1: to set height 44" from floor to top rail. ameriwoodhome.com...
- Page 15 STEP 9 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 2: to set height 42" from floor to top rail. ameriwoodhome.com...
- Page 16 STEP 10 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 3: to set height 40" from floor to top rail. ameriwoodhome.com...
- Page 17 STEP 11 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 4: to set height 38" from floor to top rail. ameriwoodhome.com...
- Page 18 STEP 12 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 5: to set height 36" from floor to top rail. ameriwoodhome.com...
- Page 19 STEP 13 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 6: to set height 34" from floor to top rail. ameriwoodhome.com...
- Page 20 STEP 14 Ø1/4"X12 mm × 8 You have 7 options to install the leg that will change the desk height. OPTION 7: to set height 32" from floor to top rail. ameriwoodhome.com...
- Page 21 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Warning: Risk of injury to persons - do not place a television on this furniture. This furniture is not approved for use with a television.
- Page 22 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com...
