Advantage Sentra SR Series Reference Manual

Maximum Setpoint : 250°F*
This reference guide covers standard Advantage temperature
control units with the G Instrument. This guide may be used for
customized units using the G Instrument even when the unit may
not be physically the same as the units depicted in the included
photos.

Before Installing or Operating

A manual is available at www.advantageengineering.com/Sentra-SRG or by scanning the QR
1.
code on the back of this document. Download and read the manual before starting installation.
This unit is designed to be used with water as the circulating fluid. The quality of fluid used in
2.
your temperature control unit will greatly effect its short and long-term operation. Lack of as
well as improper water treatment can damage the temperature control unit by causing scale
build-up, excessive corrosion and/or bacterial contamination. It is the equipment owner's
responsibility to prevent damage caused by poor water quality. The services of a water
treatment professional is recommended.
Before installing and operating the unit, be aware of and follow any local laws and codes that
3.
apply to the installation.
When contacting the Service Department always have the unit Model and Serial number from
4.
the data tag located on the side of the unit.

Installation

Electrical: Be certain all electrical connections are tight in the unit. Install unit power cord
1.
(when supplied) to power disconnect switch. Applied power must be equal to the unit voltage
and amps listed on the unit data tag. Follow all applicable local and national electrical codes.
Plumbing: Care should be taken to use materials (hose, rigid piping, valves or filters) rated
2.
for the temperature and pressure duty of your unit. Most units have a maximum operating
temperature of 300°F or less and a maximum pressure of 150 PSI. The unit is most efficient
when full size plumbing is run from the unit connections to and from the process. If necessary,
reduce the plumbing size at your process, not at the unit.
SERVICE DEPARTMENT
317-887-0729
*Reference the manual for requirements for 250°F set point.

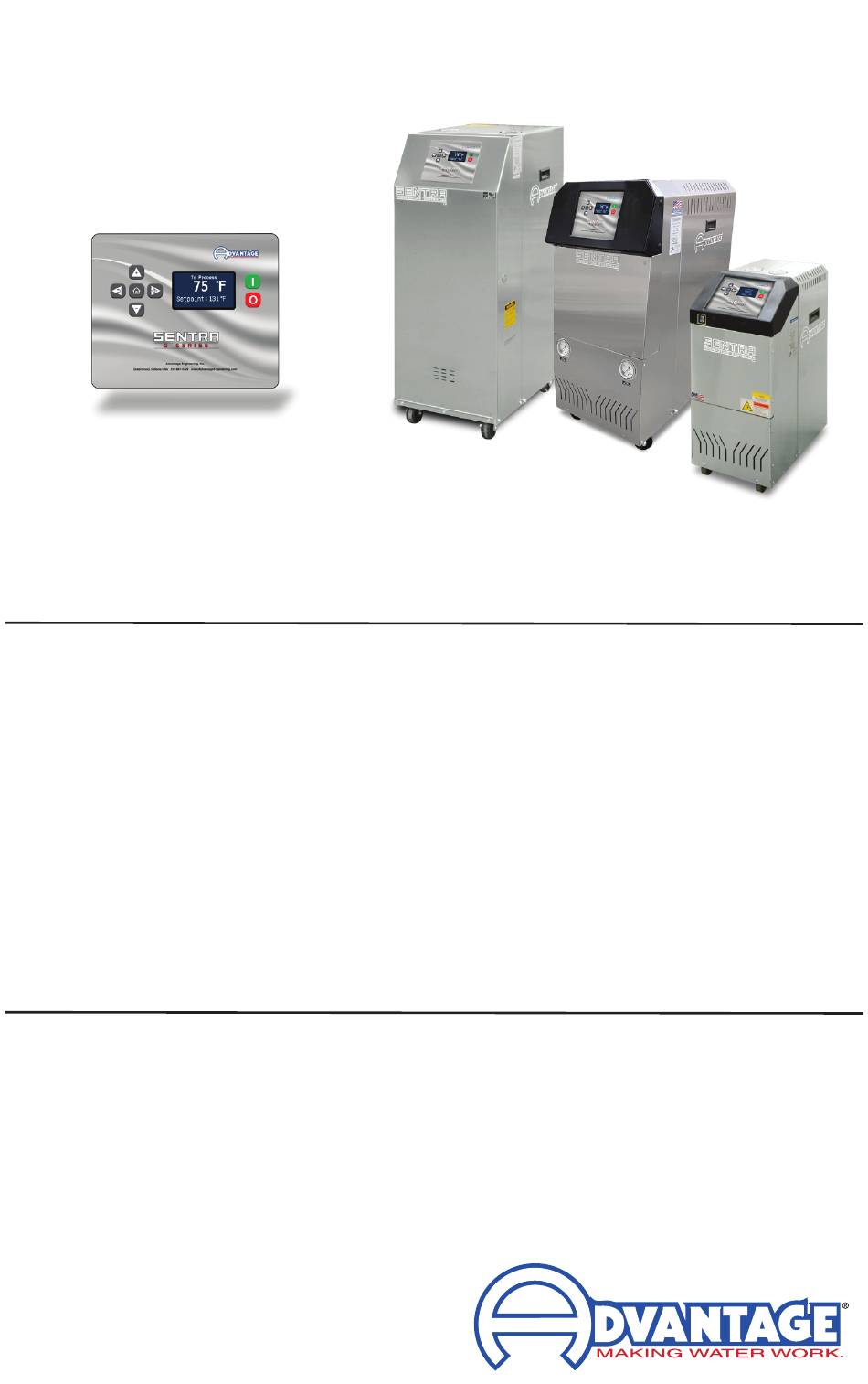

Sentra SR Series with G Control Instrument
REFERENCE GUIDE
INSTALLATION • OPERATION • TROUBLESHOOTING
Refer to the Manual for complete details on Installation.
