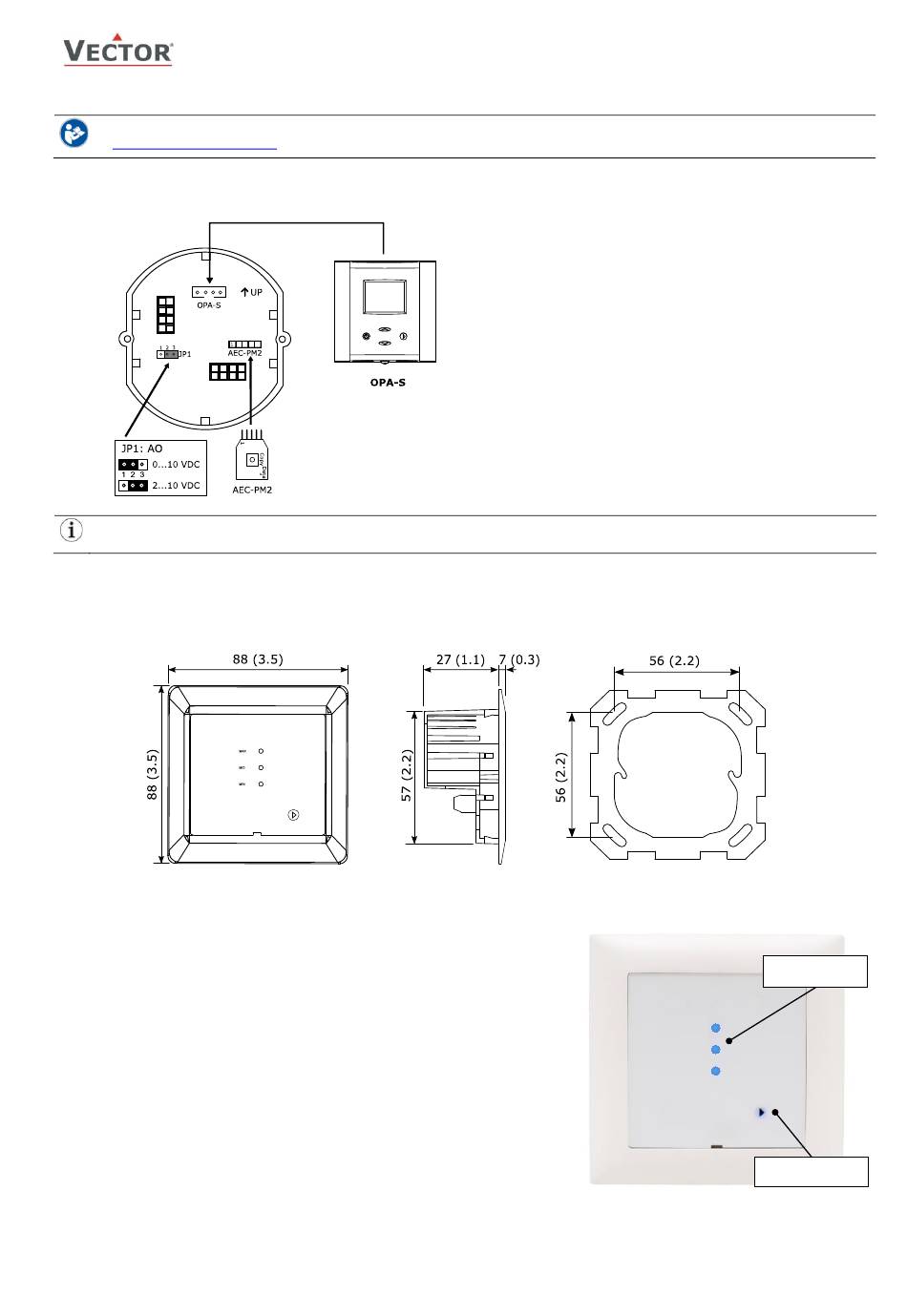

Mounting instruction

For more information on mounting, refer to MZ3-V01 Installation Manual No. 70-000833
(www.vectorcontrols.com).
View of rear part, without front panel
NOTE: For parameter programming, the OPA-S programming and display unit must be plugged in at the connector
under the front panel or on the back of the MZ3.
Dimensions mm (in)
The MZ3-V01 is so designed that it can be incorporated into a commercially available flush box (Feller EDIZIOdue® frame
and mounting plate are included).

Display and Operation

Manual operation

The following operation modes will be activated through repeated pressing
of the level button:
- Level 0 = MIN = Minimum
- Level 1 = MID = Medium
- Level 2 = MAX = Maximum
The active level is activated after 3 seconds. This prevents unnecessary
switching when setting the device. The level-indication and buttons light
up in blue.
The device is equipped with proximity detection. When approaching a
distance of approx. 10 cm, the luminosity of the LED increases. After 30
seconds without interaction, the LEDs dim down again and thus save
energy.
