Summary of Contents for NBB SR7901-F

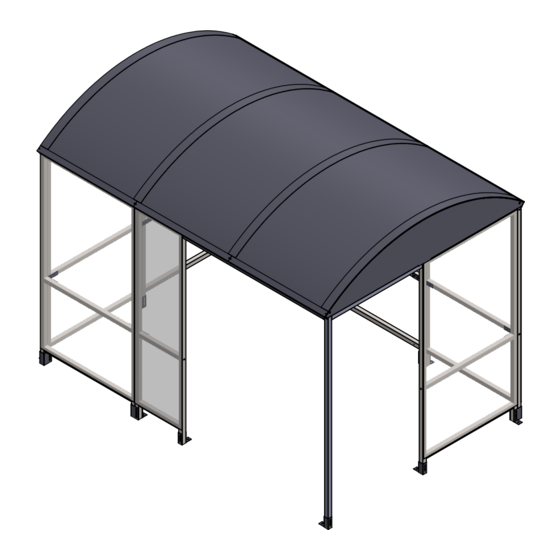

- Page 1 Assembly Instructions Shelter type: SR7901-F SR7901F-01-28102021-USA...
-
Page 2: Exploded View
EXPLODED VIEW... -
Page 3: Parts List
PARTS LIST IMAGE ITEM NO. PART NUMBER Size (inch) QTY. S1C Frame 78.74 x 40.74 S3C Frame 78.74 x 20.3 Post P1 78.75 x 40.5 ST5 Roof Tie 60.75 DR2R 92.32 DR Bracket 4.3 x 1.6 x 2 DR2I Infill Panel 85 x 15.75 DR2PO Roof Panel 92.32 x 41.54... - Page 4 FITTING AND TOOLS Fittings Bolt set M10 BTANCM12100 1.5" M10/12 x 100 mm 1" Tech Black M10 x 60mm Washer Tech screw Caps Concrete Bolt screw Amount Included (Pack A+B) Amount Included SR7901 (Pack H) Required Tools required: Drill/Screwdriver Mallet Tools included: 17mm Wrench T25 Torx bit...
- Page 5 Step 1 Assemble the S1C/S3C frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Complete the structure with the P1 Post and the ST5 tie bar. Please note 1.5" Tec Screws are for roof panels only MEASURE THE WIDTH AND DEPTH...
- Page 6 Step 2 Attach DR Brackets to the top of the frames, and bolt the DR2R rafters in place through the brackets. The infill panels DR2I must be placed into position at the same time as the end rafters and are screwed in using 1.5"...
- Page 7 Step 3 Align the DR2PO roof panels with the outer roof rafters and equaly space the DR2PI panel in the middle. Then use the DRATO and DRATI angles to attach the bottom of the panels with 1.5" Tech screws. DR2PI DR2PO DR2PO DRATO...
- Page 8 Step 4 Attach the FT1 and FT3 foot brackets to the frames. Make sure the shelter is square and in its desired position before using the anchor bolts to fix it to the the ground. Screw down the DR2T directly into the rafters as shown below, using 1.5"...
-
Page 9: Maintenance
THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
