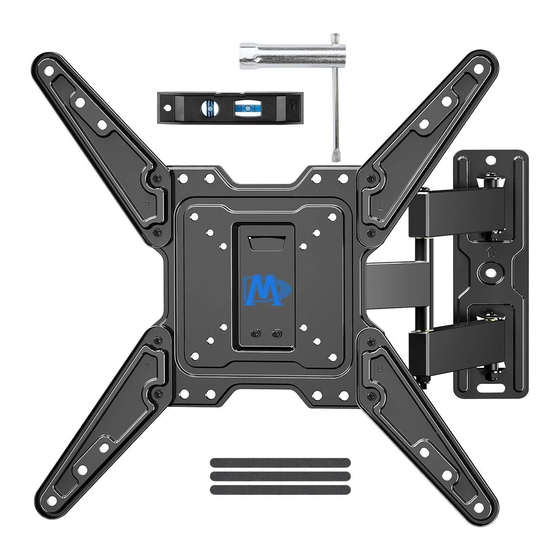

MD2413-MX-021
Für die Installationsanweisungen auf Deutsch, siehe Seite 12~13.
Pour l'instruction en Français, veuillez vous reporter à la page 14~15.
Para las instrucciones de la instalación en Español, favor vea la página 16~17.
Per le Istruzioni in Italiano, vedi pagina 18~19.
x3
INSTALLATION INSTRUCTION
x1
Max:400x400mm/16x16"
Min:75x75mm/3x3"
1
2
TV
(UK-C2)
Advertisement
Related Manuals for Mounting Dream MD2413-MX-021
Summary of Contents for Mounting Dream MD2413-MX-021
- Page 1 MD2413-MX-021 INSTALLATION INSTRUCTION Für die Installationsanweisungen auf Deutsch, siehe Seite 12~13. Pour l'instruction en Français, veuillez vous reporter à la page 14~15. Para las instrucciones de la instalación en Español, favor vea la página 16~17. Per le Istruzioni in Italiano, vedi pagina 18~19.
- Page 2 Safety Caution combined. ● Do not apply this product to any purpose not indicated by Mounting Dream. ● Incorrect installation may result in product damage or body injury. Mounting Dream shall bear no responsibility for any damage or injury resulted from incorrect installation,...
- Page 3 Parts and Hardware WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. NOTE: Not all hardware included will be used. Allen Key Spacers TV Screws M4x12mm M8x22mm M4x30mm...
- Page 4 1-2 Choose Configuration ③ ③ ② ② ① ① ① ① ② ② ③ ③ 400mm x 200mm 300mm x 300mm 400mm x 400mm ④ ④ ④ ④ 75mm x 75mm 100mm x 100mm 200mm x 300mm 100mm x 200mm 150mm x 150mm 200mm x 100mm 200mm x 150mm...
- Page 5 Extended Arms Assembly Example (For reference) TV plate TV plate 1-4 Need Spacer? 1-3 Select TV Screws No, go to PAGE 5 for detailed combination. Bracket Short Screw Washer TV back Yes, go to PAGE 5 for detailed combination. Long Screw Washer Spacer Bracket...
- Page 6 1-5 Attach TV Plate to TV Back Screw and washer Spacer(s), screw and washer Tips: If you need to combine M6(e) or M8(c/f) screw with 2.5mm spacer(j), you have to remove the inner circle.
-
Page 7: Wood Stud Installation
For wood stud installation, follow STEP 2A For concrete installation, follow STEP 2B on PAGE 8 Parts and Hardware Mounting Template Wall plate Lag Bolt M7x70mm CAUTION: Do not use in drywall or wood Fischer UX10x60 R Concrete Wall Anchor 3pcs Wood Stud Installation Min. - Page 8 Centre line Mounting Template CAUTION: To avoid potential personal injury or property damage: All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step.
-
Page 9: Solid Concrete Wall Installation
Solid Concrete Wall Installation Min. 8"(203mm) DANGER 2.9"(74mm) 3/8" (10mm) Mounting Template CAUTION: To avoid potential personal injury or property damage: All 3 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to the next step. - Page 10 Before hanging TV, please conduct "wall plate installation integrity test" first. 77 LBS (35 KG)
- Page 11 4-1 TV leveling adjustment (±4°): Loosen 2 leveling bolts on the rear of TV plate by maximum 2 turns, adjust to level, and retighten to secure. Loosen Tighten 4-2 Tilting angle adjustment (+5°/-15°) ： Pull TV to your desired angle then fasten 2 tilting bolts with Allen key Tilting bolts Tilting bolts...
- Page 12 Allen key storage: For easy adjustment, you might put the Allen key on the wall plate as illustration. MAX:400mm 68mm MAX: 400mm +5° 257mm -15° 436mm 424mm 436mm 69mm +90°/-90°...
- Page 13 ● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting Dream angegeben. ● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen an Ihrem Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch unsachgemäße Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung verursacht wurden.
- Page 14 Installationsanweisungen Warnung: Dieses Produkt enthält kleine Teile, die beim Verschlucken zur Erstickungsgefahr führen können. Bevor Sie mit der Installation beginnen, überprüfen Sie bitte, ob alle Zubehörteile und Ersatzteile vollständig und unbeschädigt sind. Hinweis: Es wird nicht das gesamte mitgelieferte Befestigungsmaterial verwendet. Schritt 1 Befestigen Sie die TV-Platte am Fernseher Siehe Seite 2 Mitgelieferte Teile und Befestigungsmaterialien...
- Page 15 ● La force portante du mur doit atteindre au moins cinq fois du poids total de votre téléviseur Consignes de et du support. ● N'utilisez pas ce produit pour des autres objectifs non désignés par Mounting Dream. sécurité ● L'installation incorrecte causera le dommage matériel ou la blessure corporelle. Mounting Dream n'assumera aucune responsabilité...
-
Page 16: Instruction D'installation
Instruction d'installation AVERTISSEMENT : Ce produit contient des petites pièces, en cas d'ingestion, des risques de suffocation y arrivera. Avant l'installation, veuillez vérifier que tous les accessoires et toutes les pièces sont complets et non défectueux. ATTENTION : Les pièces fournies ne seront pas toutes utilisées durant l'installation. Étape 1 Installer la plaque TV sur votre téléviseur Voir à... - Page 17 ● Favor NO utilizar el producto de Mounting Dream para otros usos no asignados. ● La instalación incorrecta puede producir daños al producto o lesiones al usuario. Cualquier pérdida o daño debido por la mala instalación o uso indebido, Mounting Dream no asume ninguna responsabilidad.
- Page 18 Instrucciones paso a paso de su instalación Advertencia: Este producto contiene piezas pequeñas, si por error se ingiere, puede provocar peligro de asfixia. Antes de comenzar la instalación, favor compruebe que todos los accesorios y piezas de repuesto estén completas y sin daño alguno. Atención: No todas las piezas se utilizarán.
- Page 19 ● Il muro deve essere capace di portare almeno cinque volte il peso totale del televisore e del Cautele per supporto. ● Non applicare questo prodotto ad altri scopi non indicati da Mounting Dream. sicurezza ● L'installazione errata potrebbe causare danni al prodotto o lesioni personali. Mounting Dream non si assume alcuna responsabilità...
-
Page 20: Istruzioni Di Installazione
Istruzioni di installazione Avvertenza: Questo prodotto contiene piccoli articoli che potrebbe causare il pericolo di soffocamento se ingoiati. Prima di iniziare l'installazione, controlla se tutti gli accessori e parti siano inclusi e non danneggiati. Nota: Non verranno utilizzati tutte le parti incluse. Passo 1 Installa la piastra TV alla TV Vedi pagina 2 Accessori e parti...
