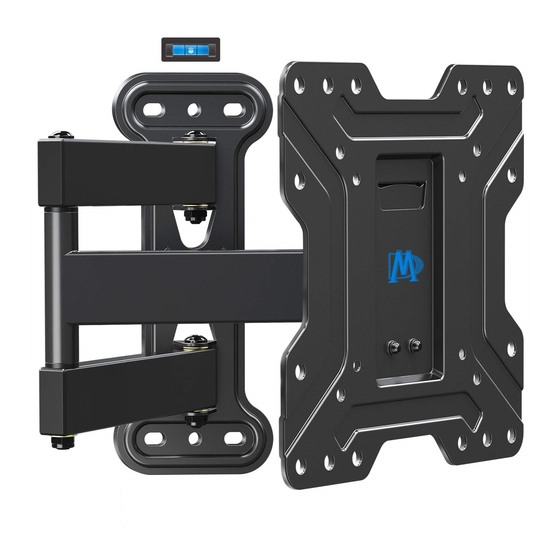

Mounting Dream MD2411-S Installation Instruction

Vesa: 100x100 mm/4x4, 200x100 mm/8x4, 200x200 mm/8x8
Hide thumbs Also See for MD2411-S:

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTION
Please read this instruction carefully before installation .
Fits for most 17-39 inches Plasma, LCD and LED TVs .
Weight capacity: 25 kg (55 LBS) .
Thank you for purchase! We strive to provide products and services of exceptional quality.
We sincerely invite you to write an unbiased review. For parts missed or installation problems,
please contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email
us by customerservice@mountingdream.com, so that we may solve the issue for you.
VESA:
100X100 mm/4X4"
200X100 mm/8X4"
200X200 mm/8X8"
MODEL ： MD2411-S
(A1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MD2411-S and is the answer not in the manual?

Questions and answers

Related Manuals for Mounting Dream MD2411-S

Summary of Contents for Mounting Dream MD2411-S

  • Page 1 VESA: 100X100 mm/4X4" 200X100 mm/8X4" 200X200 mm/8X8" MODEL ： MD2411-S Please read this instruction carefully before installation . Fits for most 17-39 inches Plasma, LCD and LED TVs . Weight capacity: 25 kg (55 LBS) . Thank you for purchase! We strive to provide products and services of exceptional quality.
  • Page 2 AVISO DE SEGURIDAD: recepción a usar el estante horizonte de aire de TV. Para garantizar un uso seguro de los modelos MD2411-S para evitar que ellos mismos y otras personas en situación de riesgo y para evitar daños a la propiedad, por favor leer antes de utilizar este manual cuidadosamente, si usted no entiende estas instrucciones o la seguridad de la instalación tiene alguna pregunta, por favor llame a un contratista calificado o...
  • Page 3 Before getting started, let's make sure this mount is perfect for you! Is your TV VESA 100x100mm/4x4in, 200x100mm/8x4in, 200x200mm/8x8in? MAX:200mm/8" Yes --- Perfect! MAX: 200mm/8" No --- This mount is NOT compatible. Does your TV (including accessories) weigh more than 55 lbs (25kg)? NO --- Perfect! 55 lbs...

  • Page 4: Part List

    For parts shortage or damage, please contact us directly by customerservice@mountingdream.com. Attention: New delivery will be timely arranged to replace missed or defective parts. Installation tools: 2M 2M Band tape Bubble level Stud finder Pencil Screwdriver 3/8" Socket wrench 5/32" Hammer Electrodrill 1/2"(13mm)
  • Page 5 TV mounting hardware ： c--M6X12 bolt a--M4X12 bolt b--M5X12 bolt d--M8X25 bolt 4pcs 4pcs 4pcs 4pcs e--M4X30 bolt f--M5X30 bolt g--M6X35 bolt h--M8X50 bolt 4pcs 4pcs 4pcs 4pcs i--M5/M6 spacer j--M8 spacer k--M5/M4 l--M6 washer m--10mm spacer n--2.5mm spacer 4pcs 4pcs washer 4pcs 4pcs...
  • Page 6 Step 2 Wall plate installation : Option 1 Wall plate installation in wood stud To avoid potential body injury or property damage: 1. Wall mount must be installed into wood stud's center, not drywall alone. 2. Drywall covering the wood stud must not exceed 16 mm (5/8 in.). 3.
  • Page 7 Option 2 Wall plate installation on concrete wall To avoid potential personal injury or property damage: 1. Make sure the BOLT HEAD on the wall plate is upward as the picture shows. 2. Solid concrete wall's thickness should be more than 100mm/4", and the wall must be CAUTION capable of supporting five times the weight of the TV plus the mount.
  • Page 8 Step 3 Select TV hardware (diameter / length / combination) Bolt diameter: hand thread bolts into threaded inserts on the back of TV to determine correct bolt diameter (M4, M5, M6, M8). Bolt length: verify adequate thread engagement with bolts or bolts/spacers combination.
  • Page 9 Step 4 Attach TV plate to the back of TV If the VESA dimension is 100 mm x 100 mm(4 in x 4 in), 200 mm x 100 mm(8 in x 4 in) or 200 mm x 200mm (8 in x 8 in), take the following image as reference. 200mm 200mm 100mm 100mm...
  • Page 10 ② For TV with inset mounting holes, mount the wall plate with bolt/washer/spacer combination. (Spacers are highly recommended to be added, thus enlarge the space between TV and brackets for better functionality.) Bolt/spacer/washer combination options (only for reference) options spacer options spacer Tips: You have to remove the inner circle of 2.5mm washer (n) in order to fit the M6 (g)
  • Page 11 Step 5 Hang the pre-assembled TV unit on the wall plate. Attention: Cables are highly recommended to plug in before hanging the TV on the wall plate. Two people are recommended to hold and position the TV . Step 6 Make sure the TV unit is horizontal, you can adjust the TV plate a little bit (+/-5 degrees) to level the TV, then fasten TV plate by bolts...
  • Page 12 Step 7 Adjustment of tilting and swivel angles Adjust the tilting angle (+5/-15°) : You may need to loosen the bolt with Allen key to adjust TV to your desired angle. Please remember to fasten the bolt tightly after adjustment. Adjust the swivel angle(±90°): Grab the sides of the TV with two hands and slide the TV in the desired direction until it is in your desired angle.

  • Page 13: Product Dimensions

    Product dimensions: 302mm MAX:200mm MIN:100mm +5° MAX:200mm MIN:100mm -15° 218mm 225mm 68mm +90°/-90° If you have any questions about the installation, please feel free to contact us at telephone (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific time) or email us by customerservice@mountingdream.com . For more information, please visit our website:www.mountingdream.com...
