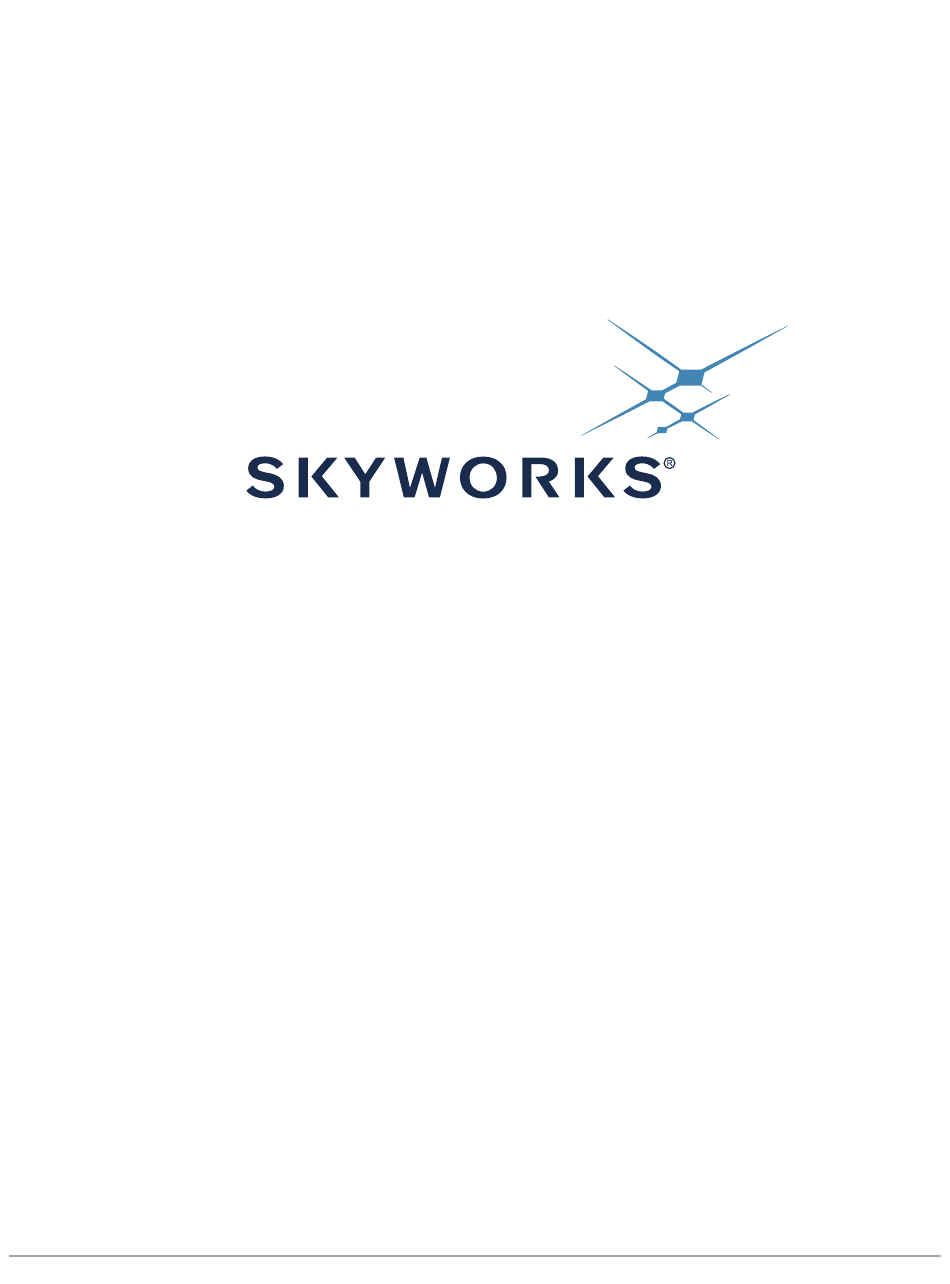

Skyworks Si5338 Reference Manual

Hide thumbs Also See for Si5338:
Table of Contents

Advertisement

Quick Links

Download this manual
S i 5 3 3 8 R
M
E F E R E N C E
A N U A L
C
S i 5 3 3 8 W
O N F I G U R I N G T H E
ITHO UT
C
B
P
L O C K
U I L D E R
RO
T
HIS DO CU MEN T R EP L AC ES
" A N 4 11: C
Si5338
C
B
D
"
ONFI GUR IN G T HE
W I T H O U T
L O C K
UI LD ER
ES K TO P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Si5338 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Skyworks Si5338

Summary of Contents for Skyworks Si5338

  • Page 1 L O C K U I L D E R HIS DO CU MEN T R EP L AC ES “ A N 4 11: C Si5338 " ONFI GUR IN G T HE W I T H O U T...
  • Page 2 Si5338-RM Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 3: Table Of Contents

    10.1. Assembling the Si5338 Register Map ........28...

  • Page 4: Introduction

    This application note provides details on configuring the Si5338 by accessing its RAM space through the I C bus. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 5: Overview Of Configuring The Si5338

    With the assembled register map, follow the procedure in Figure 9 of the Si5338 data sheet. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 6: Configuring The Si5338

    Note: Spread spectrum clocking and phase and frequency adjustments cannot be used on output frequencies greater than f divided by 8. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 7 Using 64-bit unsigned numbers yields high precision in the fraction and more than what the Si5338 supports. Additionally, use this data structure to store the input and output frequencies, MultiSynth values, VCO frequency, and phase detector frequency.

  • Page 8: Calculating Multisynth Values

    In order for an output to be at a frequency of fvco/4 or fvco/6, a bit in Register51[7:4] must be set. See the description for these bits in "10. Si5338 Registers" on page 28. In some cases, a very slight improvement in output jitter may be obtained by setting MSn (feedback MultiSynth) to an integer value.
  • Page 9 The equations are identical. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 10 Figure 4. MultiSynth Registers (MS0, MS1) Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 11 Figure 5. MultiSynth Registers (MS2, MS3, MSN) Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 12: Configuring The Input Selection

    (XTAL). The XTAL allows the Si5338 to generate its own free-running reference clock. A block diagram of the input configuration of the Si5338 is shown in Figure 6. The Si5338 uses pins IN1/IN2, or IN3 as its main input. Inputs IN5/IN6, and IN4 can serve as an external feedback path for zero delay mode, or as additional clock inputs if the device is operating in internal feedback mode.* The following sections describe how each of the inputs are...

  • Page 13: Reference Clock Select

    Figure 7. Reference Input Configuration Registers Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 14: Feedback Clock Select

    Figure 8. Feedback Input Configuration Registers When the Si5338 is used in the zero delay mode, set the PFD_EXTFB bit = 1 (register 48[7] = 1). When the Si5338 is not in the zero delay mode, set the PFD_EXTFB bit = 0 (register 48[7] = 0).

  • Page 15: Configuring Pll Parameters

    Set MS_PEC[2:0] to 111 Figure 9. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 16: Configuring The Frequency Increment/Decrement

    MultiSynth Values" on page 8 are used to calculate the Finc/Fdec parameters. Note that the Fout term in Equations 2 and 3 is a constant as defined by the equations in "3. Configuring the Si5338" on page 6. In other words, if a step size (Fstep) of 10 kHz is programmed, the step size will stay 10 kHz regardless of the number of increments or decrements that have occurred.

  • Page 17: Configuring Initial Phase Offset And Phase Step Size

    Where: Fvco is in Hz Equation 5. Phase Inc/Dec Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 18 122[5:0] MS3_PHSTEP[13:0] Figure 10. PINC_PDEC Registers Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 19: Configuring Spread Spectrum

    MSx_SSUPP3 = 1 Equation 6. SSC Down-Spread Equations Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 20: Center Spread

    GCD (x, y Equation 7. SSC Center-Spread Equations Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 21: Spread Spectrum Register Precision

    Note: Truncation of the SSC values will not change the reduction in measurable carrier power. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 22: Configuring The Output Drivers

    Figure 11. Setting Output Signal Type The Si5338 has a CML driver that can be used to replace an LVPECL driver in AC coupled applications and save ~15 mA for each output driver in the process. The output voltage swing of the CML driver is very similar to the LVPECL driver.

  • Page 23: Output Voltage

    9.2. Output Voltage Each of the output drivers can operate from a different VDDO supply. See Register 35 in the Si5338 Data Sheet to know which supply voltage settings can be used with each output driver format. Register 35 is used to configure VDDO as 3.3 V, 2.5 V, 1.8 V, or 1.5 V as shown in Figure 12.

  • Page 24: Output Driver Enable/Disable

    Figure 15. Setting Output Drive State Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 25: Output Clock Invert

    Differential outputs (LVPECL, LVDS, HCSL, CML) are always complimentary even when inverted. Upon power up or a soft_reset, the Si5338 synchronizes the output clocks. With normal output polarity (no output clock inversion), the Si5338 synchronizes the output clocks to the falling, not rising, edge. Synchronization at the rising edge can be done by inverting all the clocks that are to be synchronized.

  • Page 26: Output Clock Select

    (MSx) or bypass the PLL and output any of the input clocks directly. This allows the Si5338 to operate as a PLL, a clock buffer, or a combination of both. Any active output buffer that does not receive its clock from the PLL should have its disable state (“9.6.

  • Page 27: Output Clock Dividers

    Figure 18. Setting Output Clock Dividers Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 28: Si5338 Registers

    With the register information from 10.1 and 10.2, assemble the register map, and follow the procedure in Figure 9 of the Si5338 data sheet. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 29: Register Write-Allowed Mask

    10.3. Register Write-Allowed Mask The masks listed in Table 1 indicate which bits in each register of the Si5338 can be modified and which bits cannot. Therefore, these masks are write-allowed or write-enabled bits. These masks must be used to perform a read-modify-write on each register.
  • Page 30 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 31 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 32 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 33 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 34 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 35 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 36 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 37 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 38 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 39 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 40 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 41 C code header file from ClockBuilder Pro. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 42: Register Categories

    MultiSynth2 frequency Configuration 86–94 MultiSynth3 frequency Configuration Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 43 Reserved - set to 0x65 if not factory-programmed. MultiSynth0 spread spectrum Configuration Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 44 MultiSynth1 spread spectrum Configuration MultiSynth2 spread spectrum Configuration Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 45 Bits Function MultiSynth3 spread spectrum Configuration Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 46: Register Summary

    MS0_P1[7:0] MS0_P1[15:8] MS0_P2[5:0] MS0_P1[17:16] MS0_P2[13:6] MS0_P2[21:14] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 47 MS3_P2[21:14] MS3_P2[29:22] MS3_P3[7:0] MS3_P3[15:8] MS3_P3[23:16] MS3_P3[29:24] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 48 MS0_FIDP1[51:48] MS0_FIDP2[51:48] MS0_FIDP2[47:40] MS0_FIDP2[39:32] MS0_FIDP2[31:24] MS0_FIDP2[23:16] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 49 MS2_FIDP1[7:0] MS2_FIDP1[15:8] MS2_FIDP1[23:16] MS2_FIDP1[31:24] MS2_FIDP1[39:32] MS2_FIDP1[47:40] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 50 MS3_FIDP3[23:16] MS3_FIDP3[31:24] MS3_FIDP3[39:32] MS3_FIDP3[47:40] MS3_FIDP3[55:48] MS3_FIDP3[62:56] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 51 MS1_SSDNP2[7:0] MS1_SSDNP2[14:8] MS1_SSDNP3[7:0] MS1_SSDNP3[14:8] MS1_SSDNP1[7:0] MS1_SSDNP1[11:8] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 52 MS3_SSDNP2[7:0] MS3_SSDNP2[14:8] MS3_SSDNP3[7:0] MS3_SSDNP3[14:8] MS3_SSDNP1[7:0] MS3_SSDNP1[11:8] Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 53: Register Descriptions

    See "10.6.1. Example Part Number for Device ID Registers" on page 55 for complete part number example. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 54 See "10.6.1. Example Part Number for Device ID Registers" on page 55 for complete part number example. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 55 Please refer to the Si5338 data sheet's Ordering Guide section for detailed information about ordering part numbers. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 56 1:PLL self-calibration ignored in generating interrupt output. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 57 Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 58 10b: 19–26 MHz 3: 26–30 MHz Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 59 All other bit values are reserved. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 60 All other bit values are reserved. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 61 1: R0 output divider and CLK0 driver powered down Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 62 1: R1 output divider and CLK1 driver powered down Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 63 1: R2 output divider and CLK2 driver powered down Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 64 1: R3 output divider and CLK3 driver powered down Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 65 Note: If the VDDOx voltage is more than 15% below the programmed voltage setting in Register 35, the output driver may not turn on. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 66 101b: CML 110b: LVDS 111b: HCSL Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 67 101b: CML 110b: LVDS 111b: HCSL Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 68 101b: CML 110b: LVDS 111b: HCSL Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 69 Clockbuilder Pro sets these values automatically. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 70 Clockbuilder Pro sets these values automatically. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 71 FCAL_OVRD[17:16] Bits 17:16 of the Override Frequency Calibration for the VCO. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 72 Clockbuilder Pro sets these values automatically. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 73 Clockbuilder Pro sets these values automatically. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 74 All non-factory programmed devices must have 111b written to these bits. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 75 11b: Phase decrement on MS0, self clearing Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 76 This 18-bit number is an encoded representation of the integer part of the Multi- Synth0 divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 77 MultiSynth0 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 78 MultiSynth0 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 79 MultiSynth0 divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 80 MultiSynth0 divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 81 11b: Phase decrement on MS1, self clearing Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 82 This 18-bit number is an encoded representation of the integer part of the Multi- Synth1 divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 83 This 30-bit number is an encoded representation of the numerator for the fractional part of the MultiSynth1 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 84 This 30-bit number is an encoded representation of the denominator for the fractional part of the MultiSynth1 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 85 MultiSynth1 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 86 11b: Phase decrement on MS2, self clearing Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 87 This 18-bit number is an encoded representation of the integer part of the Multi- Synth2 divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 88 This 30-bit number is an encoded representation of the numerator for the fractional part of the MultiSynth2 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 89 MultiSynth2 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 90 MultiSynth2 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 91 MultiSynth2 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 92 10b: Phase increment on MS3 11b: Phase decrement on MS3 Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 93 This 18-bit number is an encoded representation of the integer part of the Multi- Synth3 divider Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 94 MultiSynth3 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 95 This 30-bit number is an encoded representation of the denominator for the fractional part of the MultiSynth3 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 96 MultiSynth3 Divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 97 This 18-bit number is an encoded representation of the integer part of the MultiSynth Feedback divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 98 MultiSynth Feedback divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 99 MultiSynth Feedback divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 100 MultiSynth Feedback divider. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 101 Tvco/128 where Tvco is the period of the VCO in seconds. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 102 A phase increment will delay the clock edge. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 103 Tvco/128 where Tvco is the period of the VCO in seconds. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 104 63[1:0] will control the stepping of phase. A phase increment will delay the clock edge. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 105 Tvco/128 where Tvco is the period of the VCO in seconds. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 106 74[1:0] will control the stepping of phase. A phase increment will delay the clock edge. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 107 MS3_PHOFF[14:0] x Tvco/128 where Tvco is the period of the VCO in seconds. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 108 85[1:0] will control the stepping of phase. A phase increment will delay the clock edge. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 109 MS0_FIDP1[7:0] MultiSynth0 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 110 MS0_FIDP1 [31:24] MultiSynth0 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 111 MS0_FIDP1[51:48] MultiSynth0 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 112 MS0_FIDP2 [39:32] MultiSynth0 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 113 MS0_FIDP2 [15:8] MultiSynth0 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 114 MS0_FIDP3 [15:8] MultiSynth0 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 115 MS0_FIDP3 [39:32] MultiSynth0 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 116 MS0_FIDP3[62:56] MultiSynth0 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 117 MS1_FIDP1[23:16] MultiSynth1 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 118 MS1_FIDP1[47:40] MultiSynth1 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 119 MS1_FIDP2[47:40] MultiSynth1 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 120 MS1_FIDP2[23:16] MultiSynth1 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 121 MS1_FIDP3[7:0] MultiSynth1 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 122 MS1_FIDP3[31:24] MultiSynth1 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 123 MS1_FIDP3[55:48] MultiSynth1 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 124 MS2_FIDP1[15:8] MultiSynth2 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 125 MS2_FIDP1[39:32] MultiSynth2 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 126 MS2_FIDP2[51:48] MultiSynth2 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 127 MS2_FIDP2[31:24] MultiSynth2 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 128 MS2_FIDP2[7:0] MultiSynth2 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 129 MS2_FIDP3[23:16] MultiSynth2 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 130 MS2_FIDP3[47:40] MultiSynth2 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 131 MS3_FIDP1[7:0] MultiSynth3 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 132 MS3_FIDP1[31:24] MultiSynth3 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 133 MS3_FIDP1 [51:48] MultiSynth3 Frequency Increment/Decrement Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 134 MS3_FIDP2[39:32] MultiSynth3 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 135 MS3_FIDP2[15:8] MultiSynth3 Frequency Increment/Decrement Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 136 MS3_FIDP3[15:8] MultiSynth3 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 137 MS3_FIDP3[39:32] MultiSynth3 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 138 MS3_FIDP3[62:56] MultiSynth3 Frequency Increment/Decrement Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 139 = 0x04 or 0x00. All Multisynth blocks will remain in reset until a 0 is writ- ten to this bit. Reserved Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 140 Bits 7:0 of the Frequency Calibration for the VCO. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 141 C Programming Procedure in the Si5338 data sheet for when to write this register. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 142 Reading this bit after a soft reset will return a Reserved Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 143 “0” to this bit will clear it. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 144 MultiSynth0 Spread Spectrum Up Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 145 MultiSynth0 Spread Spectrum Up Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 146 MultiSynth0 Spread Spectrum Up/Down Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 147 MultiSynth0 Spread Spectrum Down Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 148 MultiSynth0 Spread Spectrum Down Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 149 MultiSynth1 Spread Spectrum Up Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 150 MultiSynth1 Spread Spectrum Up Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 151 MultiSynth1 Spread Spectrum Down Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 152 MultiSynth1 Spread Spectrum Down Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 153 MultiSynth2 Spread Spectrum Up Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 154 MultiSynth2 Spread Spectrum Up Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 155 MultiSynth2 Spread Spectrum Down Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 156 MultiSynth2 Spread Spectrum Down Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 157 MultiSynth3 Spread Spectrum Up Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 158 MultiSynth3 Spread Spectrum Up Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 159 MultiSynth3 Spread Spectrum Up/Down Parameter 2. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 160 MultiSynth3 Spread Spectrum Down Parameter 3. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 161 MultiSynth3 Spread Spectrum Down Parameter 1. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 162: Revision History

    Removed Register 241 = 0x65 as this is already detailed in the 5338 data sheet Figure 9.  Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...
  • Page 163 Removed “13. VCO Calibration and Soft Reset” section.  Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 1.4 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • 2021...

  • Page 164: Contact Information

    Information in this document is provided in connection with Skyworks Solutions, Inc. (“Skyworks”) products or services. These materials, including the information contained herein, are provided by Skyworks as a service to its customers and may be used for informational purposes only by the customer.

Table of Contents
