LEGRAND Valena Life Operation

Valena Life
TM

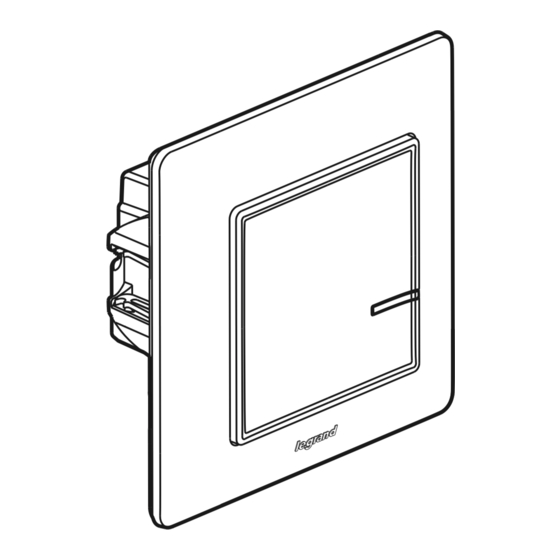

Connected switch without neutral
with dimmer option

1. USE

Connected switch without neutral with dimmer option, configured by
default as ON/OFF.
Can be combined with one or more wireless lighting controls (dimmer
mode can be activated from the Home + Control app).
For local or remote control of your lighting.
Supplied with an active power compensator (Cat. No. 0 401 49), mandatory
to ensure optimum operation with commercially-available lamps. One
compensator per lighting circuit is sufficient.
Easy to install in place of a standard switch in a box 40 mm deep
(minimum).
Claw and/or screw fixing.

2. RANGE

Description
Product for use in conjunction with the starter pack.
With LED indicator (configuration) and RESET button
(hidden) used to return to factory settings.
Supplied complete with claws and site protection
cover.

3. DIMENSIONS (mm)

B
A B
86 86

4. CONNEXION

Type de bornes : à vis
Capacité des bornes : 2 x 1,5 mm
Longueur de dénudage : 8 mm
Tournevis plat : 3 mm
Technical data sheet: F02601EN/01
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tél.: 0 (+33) 5 55 06 87 87 - Fax: 0 (+33) 5 55 06 88 88
www.legrand.com
7 521 84
White Ivory Aluminium
7 521 84 7 522 84 7 523 84
C
D
C D
45 11.5
ou 1 x 2,5 mm
2 2
Updated: 03/09/2020
Cat. Nos: 7 521 84 - 7 522 84 - 7 523 84

5. OPERATION

OFF when pressed at the top and dimming when held
down until released.
LED indicator:
- useful during installation
- blue LED illumination function can be activated from the
Home + Control app.
ON when pressed at the bottom and dimming when held
down until released.
OFF
RESET button
used to return to factory settings.
ON

6. TECHNICAL CHARACTERISTICS

 6.1 Mechanical characteristics

Protection against impacts: IK 04
Protection against solid bodies/liquids: IP 41 assembled product

 6.2 Material characteristics

Plate: ABS
Sub-plate: PC
Rocker plate: ABS
Colours: White RAL 9003
Ivory RAL 1013
Mechanism casing: PC
Support: PC grey RAL 7016 + metal
Halogen-free
UV-resistant
Self-extinguishing:
850°C/30 s for insulating parts holding live parts in place.
650°C/30 s for the other insulating components.
0 401 49
Created: 27/02/2018
1/2
