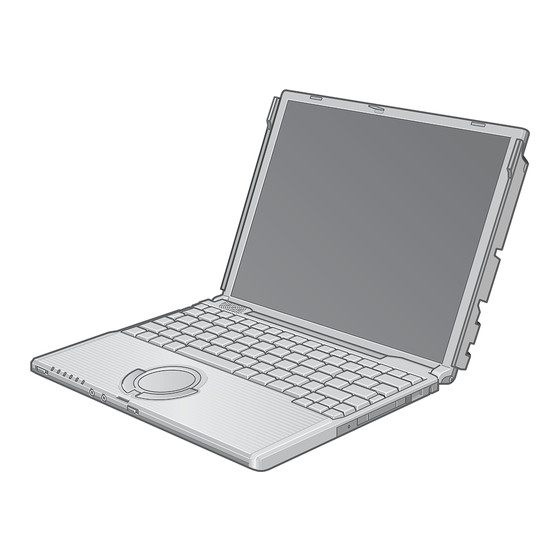

Panasonic Toughbook CF-T2FWATZBM Operating Instructions Manual

Panasonic toughbook cf-t2fwatzbm: user guide

Hide thumbs

Table of Contents

Quick Links

Download this manual

[Additional Manual]

Reference Manual

This manual can be accessed on your computer. Re-

fer to page 20 on how to access the Reference Manual.

Please read these instructions carefully before using this product and save this manual for future use.

OPERATING INSTRUCTIONS

Model No.

Contents

Getting Started

Read Me First .................................................

Names and Functions of Parts ........................

First-time Operation ......................................

Operation

Starting Up/Shutting Down............................

Touch Pad .....................................................

Reference Manual .........................................

RAM Module .................................................

Useful Information .........................................

Troubleshooting

List of Error Codes .........................................

Dealing with Problems

Reinstalling Software ....................................

Appendix

LIMITED USE LICENSE AGREEMENT .......

Hard Disk Backup Function ...........................

Hard Disk Data Erase Utility..........................

Specifications ................................................

LIMITED WARRANTY ...................................

Personal Computer

CF-T2

Series

...................

(Summary)

Page

Table of Contents

Summary of Contents for Panasonic Toughbook CF-T2FWATZBM

Page 1: Table Of Contents
[Additional Manual] Reference Manual This manual can be accessed on your computer. Re- fer to page 20 on how to access the Reference Manual. Please read these instructions carefully before using this product and save this manual for future use. OPERATING INSTRUCTIONS Model No.
Page 2 For the Model No., insert the 12 digit number (for example, CF-T2FWATZBM) located on the bottom of the computer. Introduction Thank you for purchasing the Panasonic computer. Read the operating instructions thoroughly for proper operation of your new computer. Illustrations and Terminology in this Manual NOTE: NOTE provides a useful fact or helpful information.
Page 3: Read Me First
Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the Panasonic Service Center or an experienced ra- dio/TV technician for help. Warning To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral.
Page 4 Read Me First 9. The Telephone Consumer Protection Act of 1991 makes it un- lawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmis- sion, the date and time it is sent and an identification of the business or other entry, or other individual sending the mes-...
Page 5 Industry Canada This product complies with RSS210 Industry Canada. Operation is subject to the following two conditions; (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. Important Safety Instructions / Importantes Mesures De Sécurité...
Page 6 Read Me First Precautions Usage Avoid Extreme Heat and Cold Do not store or use the computer in locations exposed to heat, direct sunlight, or extreme cold. Avoid moving the computer between locations with large temperature difference. Operation: 5 C to 35 Storage: C to 60 Avoid Direct Sunlight on the LCD Panel...
Page 7 Precautions (Battery Pack) Care should be exercised with regard to the following in order to avoid the possibility of overheating, fire or dam- age. Avoid Heat Do not throw the battery pack into a fire or expose it to excessive heat. Keep Articles Away Do not place the battery pack together with ar- ticles such as necklaces or hairpins when carry-...
Page 8: Names And Functions Of Parts
Names and Functions of Parts Speaker To adjust the volume: Fn + F5 / Fn + F6 Speaker on/off : Fn + F4 CAUTION Do not allow metallic objects or magnetic me- dia to come near the speaker. Keyboard LED Indicators “Confirm the Status Using the LEDs”) Power status...
Page 9 Wireless LAN page 27, “Wireless LAN”) DC-IN Jack DC IN 16V External Display Port “External Display”) USB Ports “USB Devices (External Mouse etc.)”) “LAN”) CAUTION Do not connect the modem telephone cable into the LAN port. Modem “Modem”) Battery Pack “Battery Power”) CAUTION Do not cover the computer with a thick cloth, such as a blanket.
Page 10 Names and Functions of Parts Using the Tether Before Using the Stylus The tether prevents the stylus (included) from falling accidentally. It can be attached to the stylus holder ( page 11). Attaching the Tether Tether CAUTION Do not carry the computer by gripping the tether. The computer is supplied with the stylus holder attached to the right side of the internal display.
Page 11 Attaching and Stowing the Stylus At the time of purchase, the stylus is not attached to the stylus holder. With the stylus holder attached, use the following method to attach the supplied stylus to the stylus holder. Thread the stylus strap of the tether (a) from (A) in the direction of the arrow, and fasten it to ①...
Page 12: First-Time Operation
First-time Operation Battery Pack Latches Read the steps below to help you learn what parts are included, and to gain an understanding of some basic computer-related operations. Confirm the inclusion of all parts. Make sure the parts shown in the figure have been supplied. If any of these items are missing or is not working properly, contact your technical support office ( AC adaptor ...
Page 13 Connect your computer to a power outlet. The battery pack will be charged automatically. Charging Time: Approx. 3 hours (Varies depending on the usage conditions.) CAUTION Be sure the AC adaptor is connected until completing the first-time use opera- tion. When using the computer for the first time, do not connect any peripheral de- vice except the battery pack and AC adaptor to the computer.
Page 14 First-time Operation Enter your computer name and administrator password and then click [Next]. CAUTION Remember this password! If the password is forgotten, Windows cannot be operated. Set the correct date, time and the time zone, then click [Next]. NOTE It may take some time before the computer restarts and the screen of step 7 is displayed.
Page 15 If the characters or icons on the screen are too small and difficult to see, after completing step 8, click [start] - [All Programs] - [Panasonic] - [Icon Enlarger]. This will allow you to magnify the display of characters and icons on the screen.
Page 16: Starting Up/Shutting Down
Starting Up/Shutting Down Starting Up Open the display. Slide the latch (A) located at the front. Lift open the display. CAUTION Do not open the display wider than necessary (160° or more). Do not apply excessive pressure to the LCD. Also, do not hold the LCD when opening or closing the display.
Page 17 NOTE If the screen on the left is displayed immediately after you turn on the power... A password has been set to ensure the computer’s security. Enter your password* How to Use the Hand Strap The hand strap is convenient for computing while standing. To carry the computer, put your hand between the computer and the hand strap to prevent it from falling, and firmly hold the computer when using it.
Page 18 Starting Up/Shutting Down Shutting Down (power off your computer) Save important data and close each application. Click [start] - [Turn Off Computer]. Click [Turn Off]. Your computer will power off automatically. Restarting your computer (without shutting down): Click [Restart]. To shut down using the keyboard: , U , and select [Turn Off] with Press Enter .
Page 19: Touch Pad
Touch Pad Use the touch pad to move the cursor on the screen and perform computer operations. A. Work Surface (Touch Pad) B. Left Button C. Right Button Function Moving the Cursor Tapping/Clicking Double-Tapping/ Double-Clicking Dragging Vertical Scroll Horizontal Scroll Operation tapping To right-click: Can only be performed by clicking the right but-...
Page 20: Reference Manual
Double-click on the desktop. Important Tips can also be accessed from [start] - [All Programs] - [Panasonic] - [On- Line Manuals] - [Important Tips]. When the Reference Manual or Important Tips is accessed for the first time, the License Agree- ment of the Adobe Reader may be displayed.
Page 21: Ram Module
RAM Module Use a RAM module meeting the RAM module specifications below. If a module is used that does not meet the specifications, there are cases in which data may become unusable or the computer may not operate properly. RAM module specifications: ( 172 pins, Micro DIMM, 2.5 V, DDR SDRAM, PC2100 Contact your technical support office to confirm recommended RAM module.
Page 22 RAM Module 2 Place the RAM module lightly in parallel with a slot. (The gold terminals (F) are visible) 3 Insert the module parallel to the slot and press firmly until the gold terminals are no longer visible. The slot may be damaged if the following procedure is performed without inserting the module firmly.
Page 23 Removing the RAM module 1 Gently open the left and right hooks (H). The RAM module will be raised at an angle. 2 Gently remove the RAM module from the slot. Put the cover back in place. 1 Insert the cover at an angle, then fit it into place. 2 Fasten the screw.
Page 24: Useful Information
Useful Information Usage Environment Environment Place the computer on a flat stable surface. Do not place the computer upright or allow it to tip over. When the computer receives extremely strong shock after falling, the hard disk may become inoperable. Operation: Temperature: 5 °C to 35 °C {41 °F to 95 °F} Humidity : 30% to 80% RH (No condensation)
Page 25 CAUTION Do not touch or use a touchscreen before you re-attach a Protective Film, as you may leave a mark or a scratch on the touchscreen. Do not use benzene, thinner, or rubbing alcohol. Doing so may adversely affect the surface, e.g., discoloration. In addition, do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to the surface.
Page 26 Useful Information When Changing Hard Disk Partitions Security of the Computer When using the hard disk backup function, divide the hard disk into partitions when a backup area is created ( page 38). If you divide the hard disk into partitions before creating the backup area, the backup area cannot be created.
Page 27 Computer Viruses Users are advised to purchase the latest versions of virus protection software and use them regularly. We recommend you run the software: When booting your computer. After receiving data. We recommend that you check data received on disks or from external sources, such as data downloaded from the Internet, e-mail, etc.
Page 28: List Of Error Codes
How to run the Setup Utility Restart the computer. Press F2 while [Panasonic] boot screen is displayed soon after the computer begins the startup procedure. If an external keyboard is connected, disconnect these devices. An error has occurred in the memory that stores the Setup Utility settings. This error occurs when the memory content is changed through some inadvertent operation by a program or other function.
Page 29: Dealing With Problems (Summary)
Dealing with Problems When a problem occurs, refer to this page. The “Reference Manual” also contains detailed information. If a problem appears to be related to a software application, read the software related manual. If you still cannot troubleshoot the problem, contact your technical support office ( page 45).
Page 30 Windows Advanced Option Menu is displayed. Start the computer in Safe Mode, and confirm the details of the error. When [Password on boot] is set to [Enable], [Enter Password] appears after the [Panasonic] boot screen disappears. Hold down F8 soon after inputting the password and pressing Enter .
Page 31: Shutting Down
Display (continued) The external display no When an external display not compatible with the power saving mode is used with the longer displays properly computer, the display may not function correctly when the computer enters the power saving mode. In such cases, turn off the power to the external display. However, in the case of some external displays, the screen display may be distorted or the mouse cursor may not be properly displayed depending on the settings.
Page 32: Battery Indicator
Confirm that the check mark is added to [Use Touch Pad function] in [start] - [All Pro- grams] - [Panasonic] - [Touch Pad utility settings] - [General settings]. When a screen cannot scroll horizontally, add a check mark for [Use horizontal scroll function] in the [General settings] screen described above, and click [OK].
Page 33 Fast User Switching Function When switching to a different user with the Fast User Switching function, the following Some applications may not problems may occur. work properly • Some applications may not work properly. • Key combination with Fn may not work. •...
Page 34: Reinstalling Software
Before Reinstallation Preparing • Product Recovery CD-ROM (included) • Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W, CF-VDRRT3W) Important Before the reinstallation procedure, remove all peripherals (except for the DVD-ROM & CD-R/RW drive). Be sure the AC adaptor is connected until the reinstallation procedure is completed.
Page 35 10 At the confirmation message, press Y . The operation of reinstallation for the hard disk starts auto- matically. (The operations take about an hour.) CAUTION Do not interrupt the reinstallation procedure before completion, for example by turning off the computer or pressing Ctrl + Alt + Del , as this may prevent Windows from starting up, or may cause data to be lost so that the reinstallation procedure cannot...
Page 36: Limited Use License Agreement
LIMITED USE LICENSE AGREEMENT THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Page 37 Contrat de licence d’usage limité Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic licence à l'utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles ci- dessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions des présentes.
Page 38: Hard Disk Backup Function
Preparing Product Recovery CD-ROM (included) Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W, CF- VDRRT3W) Before Using a Hard Disk Backup Function Disconnect or remove all peripheral devices (except for the DVD-ROM & CD-R/RW drive), SD memory cards, and MultiMedia Cards.
Page 39 Create a Backup Area 1 Turn off the computer and connect the DVD-ROM & CD-R/RW drive to the computer. 2 Turn the computer on, and press F2 while [Panasonic] boot screen is displayed. The Setup Utility will start up. If a password has been set, enter the Supervisor Password.
Page 40 12 After logging on to Windows, a message will appear advising that a new device has been installed Backing Up and Restoring Data 1 Turn the computer on, and press F2 while [Panasonic] boot screen is displayed. 2 Select [Exit] menu, then select [Hard Disk Backup / Restore] and press Enter .
Page 41 4 When the message [[Backup] is complete] or [[Restore] is complete] is displayed, press Ctrl + Alt + Del to restart the computer. • If the backup or restore process was interrupted before completion, for example if the power was turned off, execute the process again. •...
Page 42: Hard Disk Data Erase Utility
Preparing • Product Recovery CD-ROM (included) • Panasonic DVD-ROM & CD-R/RW drive (optional: CF-VDRRT1M, CF-VDRRT2W, CF-VDRRT3W) NOTE Be sure the AC adaptor is connected until the procedure is completed. This utility can only be used for internal hard disk. It cannot be used to erase data from external hard disks.
Page 43: Specifications
A PC2700-compliant RAM module added to this computer, operates at the same speed as a PC2100-compliant RAM module. Operation has been confirmed for Panasonic SD memory cards with up to 1 GB capacity. Varies depending on the usage conditions, CPU speed, etc.
Page 44: Wireless Lan
Specifications Wireless LAN Data Transfer Rates Standards Supported Transmission Method Wireless Channels Used RF Frequency Band These are speeds specified in IEEE802.11a+b+g standards. Actual speeds may differ. IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)* IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)* IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)* IEEE802.11a/IEEE802.11b/IEEE802.11g OFDM system, DSSS system IEEE802.11a: channels 36/40/44/48/52/56/60/64/149/153/157/161/165...
Page 45: Limited Warranty
God. In addition, Panasonic shall have no obligation for any defects in the disk(s) or other media if you have modified, or attempted to modify any Program.
Page 46 No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product, or in environ- mental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God.
Page 47 Memo...
Page 48 The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations. Panasonic Computer Solutions Company 50 Meadowlands Parkway, Panazip 2F-5, Secaucus, NJ 07094 © 2005 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
