Ankom XT15 Service Procedure

Extractor sight glass assembly

Hide thumbs Also See for XT15:

Table of Contents

Download this manual

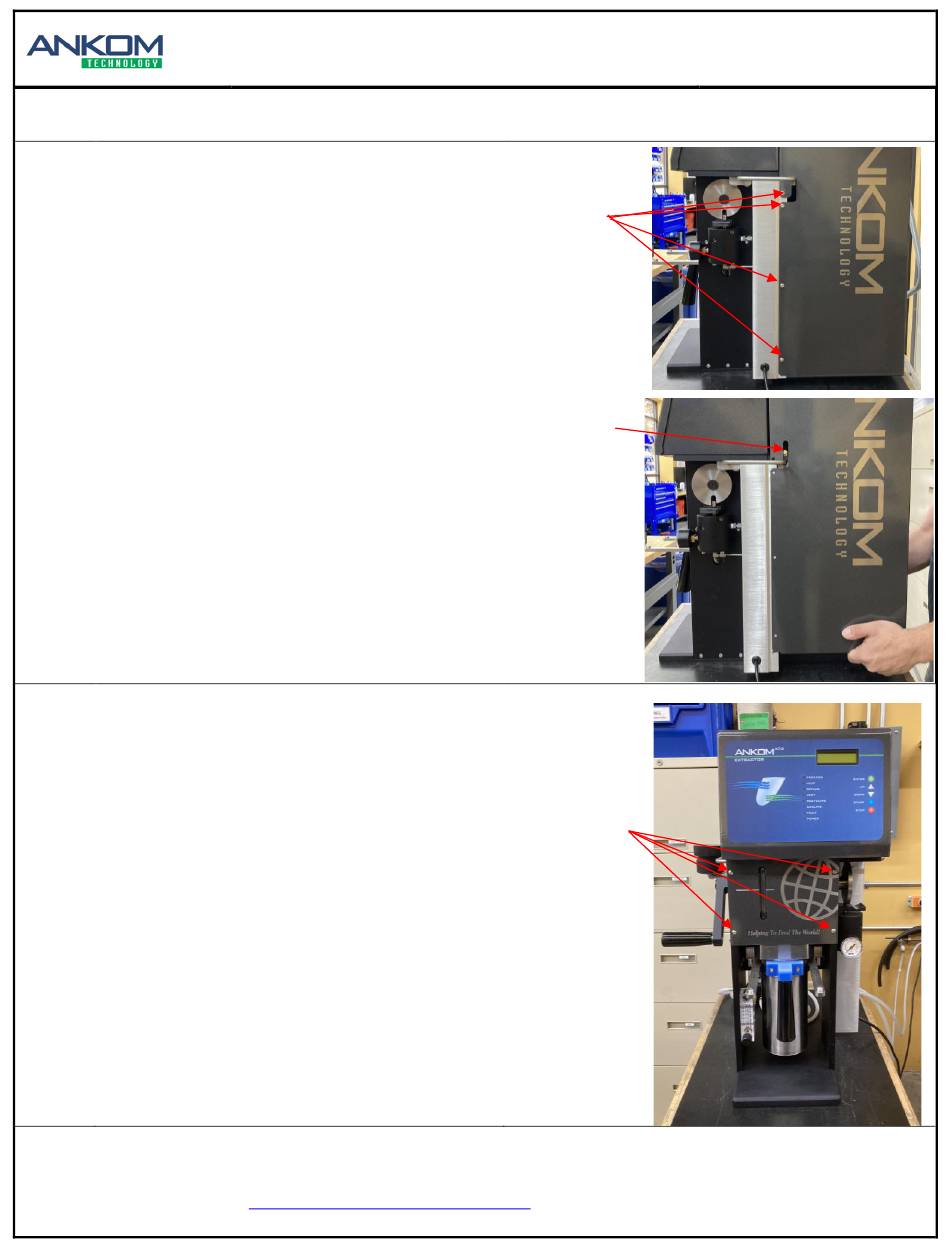

Remove the back cabinet.

a. Remove the eight screws (four on each side of the

instrument) that secure the back cabinet onto the

instrument using a 1/8" Allen wrench. Set aside

the screws for later use.

b. Lift up, then pull back so the handles on each side

slide out of the notched groove.

Remove the front plate by unscrewing the four

attachment screws with a 1/8inch Allen wrench. Set

the screws aside.

ANKOM Technology • 2052 O'Neil Road •

Sight Glass Assembly (X85)

XT15/XT15I

https://www.ankom.com/contact/technical-services

Screws

Notched groove

Front

plate

screws

• Phone: 315-986-8090

#021

Service Procedure

Revised: 11/1/22

pg. 1 of 5

Table of Contents

Do you have a question about the XT15 and is the answer not in the manual?

Page 1 Notched groove Remove the front plate by unscrewing the four attachment screws with a 1/8inch Allen wrench. Set the screws aside. Front plate screws ANKOM Technology • 2052 O’Neil Road • • Phone: 315-986-8090 https://www.ankom.com/contact/technical-services pg. 1 of 5...
Page 2 Sight Glass Assembly’s tri-fold tubing. Zip ties Use a boxcutter to cut small slits in the tubing to remove all three from their connections. ANKOM Technology • 2052 O’Neil Road • • Phone: 315-986-8090 https://www.ankom.com/contact/technical-services pg. 2 of 5...
Page 3 Select the new Sight Glass Assembly (X85) Note: Be sure not to bend or twist the tube, as kinks can cause damage to the line. ANKOM Technology • 2052 O’Neil Road • • Phone: 315-986-8090 https://www.ankom.com/contact/technical-services pg. 3 of 5...
Page 4 There are two types of tubing in this assembly. Ensure not to crinkle the inner linings during handling and installation. ANKOM Technology • 2052 O’Neil Road • • Phone: 315-986-8090 https://www.ankom.com/contact/technical-services pg. 4 of 5...
Page 5 #021 Sight Glass Assembly (X85) Service Procedure XT15/XT15I Revised: 11/1/22 11. Reinstall the front plate with the original screws earlier set aside. Front plate screws ANKOM Technology • 2052 O’Neil Road • • Phone: 315-986-8090 https://www.ankom.com/contact/technical-services pg. 5 of 5...
