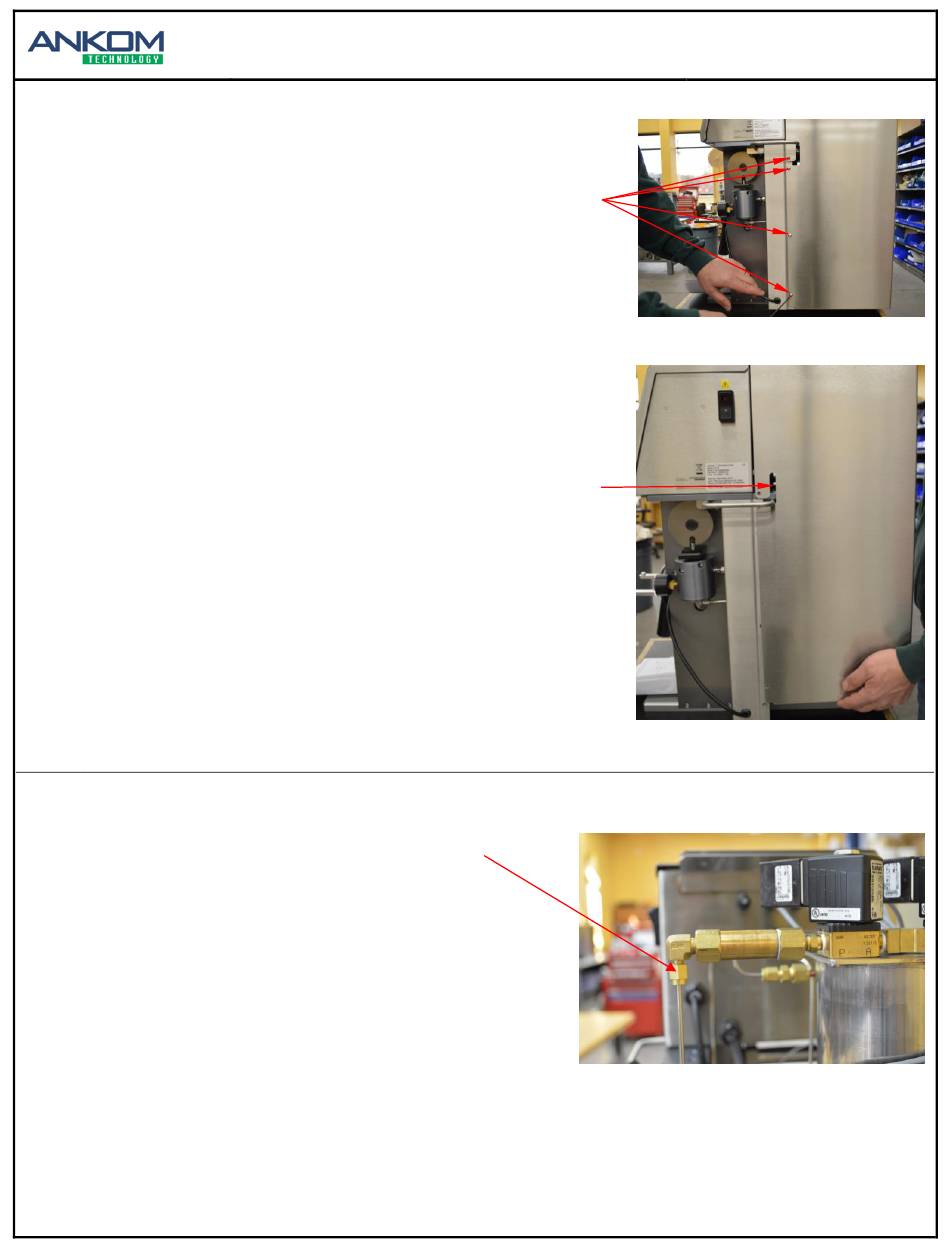

1.
Remove the back cabinet.
a. Remove the eight screws (four on each side of
the instrument) that secure the back cabinet
onto the instrument using a 1/8" Allen wrench.
Set aside the screws for later use.
b. Lift up then pull back so the handles on each
side slide out of the notched groove.
2.
Unscrew The Compression Fitting using a 9/16 wrench.
ANKOM Technology • 2052 O'Neil Road • Email: service@ankom.com • Phone: 315-986-8090 • Fax: 315-986-8091
Solvent filter cleaning

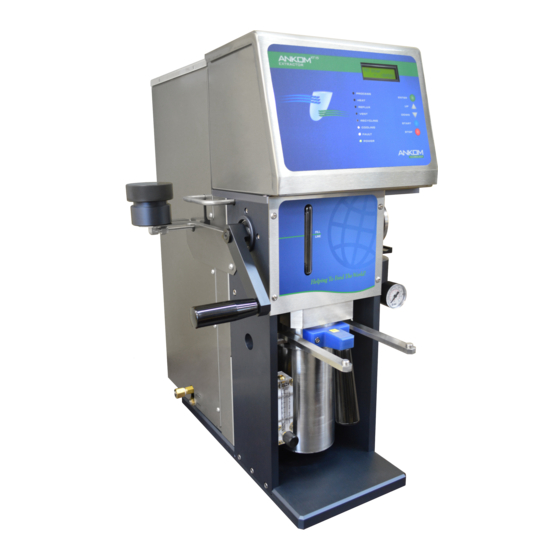

XT10/XT10I and XT15/XT15I
Service Procedure
Screws
Notched
groove
Figure 3
XTS016
JAD 1/19/2018
Figure 1
Figure 2
pg. 1 of 4
Advertisement
Table of Contents
Related Manuals for Ankom XT10
Summary of Contents for Ankom XT10
- Page 1 Figure 1 Notched groove Figure 2 Unscrew the compression fitting using a 9/16 wrench. Figure 3 ANKOM Technology • 2052 O’Neil Road • Email: service@ankom.com • Phone: 315-986-8090 • Fax: 315-986-8091 pg. 1 of 4...
- Page 2 Remove the Solvent Filter Element (part # 146.1) by unscrewing it from the body. ANKOM Technology • 2052 O’Neil Road • Email: service@ankom.com • Phone: 315-986-8090 • Fax: 315-986-8091 pg. 2 of 4...
- Page 3 If the fitting on the body installs past vertical it’s time to replace the PTFE washer (see the procedure on the next page). Correct Installation Incorrect Installation ANKOM Technology • 2052 O’Neil Road • Email: service@ankom.com • Phone: 315-986-8090 • Fax: 315-986-8091 pg. 3 of 4...
- Page 4 Install a new washer by sliding it over the mesh screen and placing it next to the body. ANKOM Technology • 2052 O’Neil Road • Email: service@ankom.com • Phone: 315-986-8090 • Fax: 315-986-8091 pg. 4 of 4...
