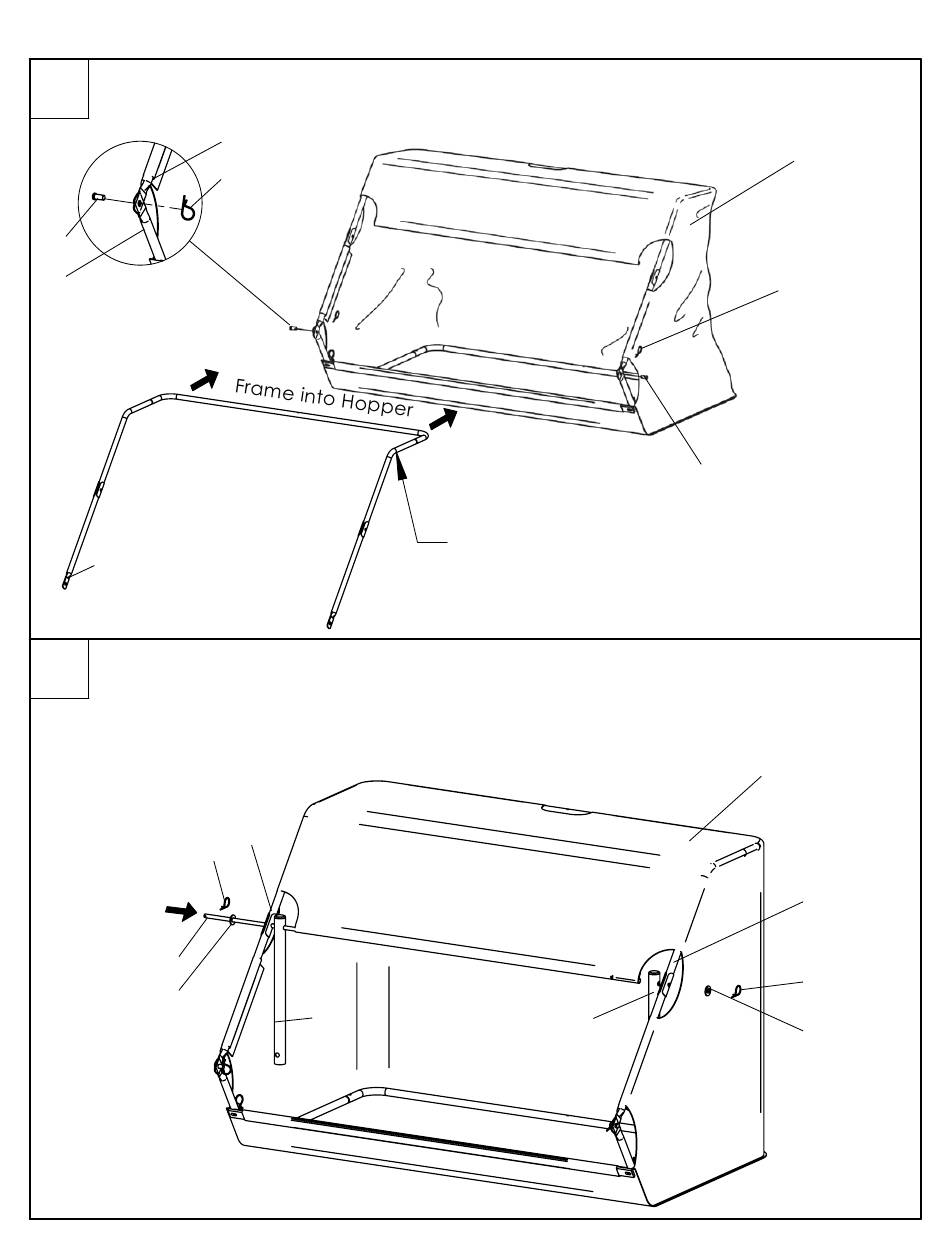

First, Place top frame assembly into Hopper Bag (38). Second, Install
Clevis Pins (45) through Top Frame Tubes (40) and Bottom Frame Tubes (39)
and secure with Hairpins (49).
45
39
39
10
Slide Hopper Pivot Rod (43) through Top Frame Tube (40) and Connecting Tube (37),
then through pocket of Hopper Bag (38), and then through
both Connecting Tube (37) and Top Frame Tube (40) on other side.
Secure both ends with Washer (47) and Hairpin (49).
