Philips Consumer Lifestyle

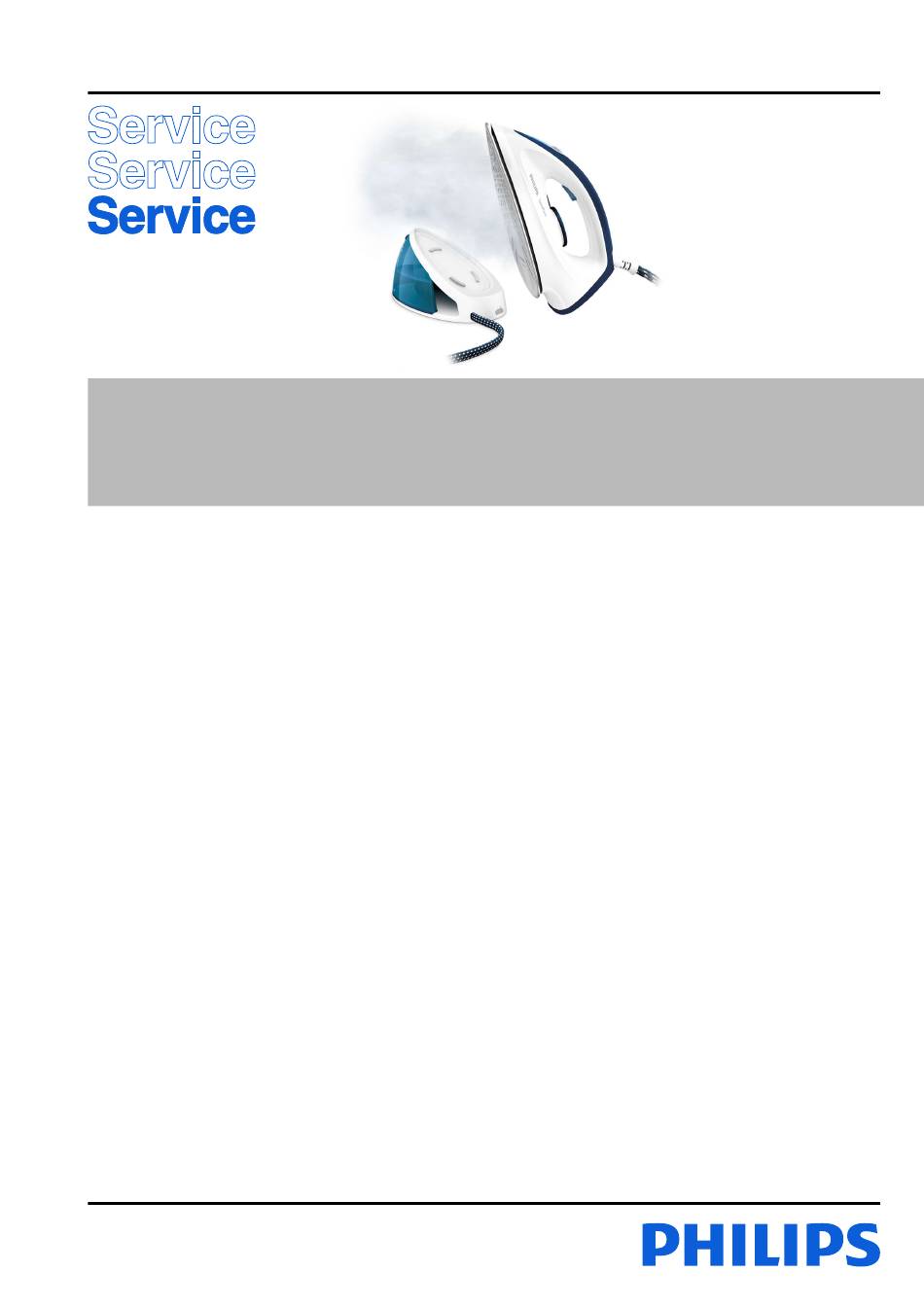

Service Manual
Product information
Fast & powerful crease removal
• Soleplate: Non-stick
• Vertical steam
• Steam Pressure: Max 4.3 bar
• Power: 2400 W
• Continuous Steam up to: 95 g/min
Easy to use
• Water tank capacity: 1200 ml
• Filling and emptying water: Extra large filling hole
• Refill any time
• Heat-up time: 2 min
• Hose storage: Hose storage compartment
• Cord freedom (swivel): 180 degree cord freedom
• Hose length: 1.6 m
• Power cord length: 1.8 m
Calc management
• Suitable for tap water
• Calc clean solution: Smart Calc Clean
• Calc clean reminder
• Filtered water recommended
Safety Information
• This product meets the requirements regarding
interference suppression on radio and TV.
• After the product has been repaired, it should function
properly and has to meet the safety requirements
and legal regulations as officially laid down at this
moment.
Published by Philips Consumer Lifestyle
15/08
SpeedCare Steam Generator
Technical information
• Weight of iron
• Weight of iron + base
• Product dimensions
• Packaging dimensions
• Voltage
• Frequency
• Power
Printed in the Netherlands
GC6603/20
: 1.1 kg
: 2.6 kg
: 19.8 x 21.7 x 34.6 cm
: 26.4 x 30.3 x 40.4 cm
: 220 - 240 V
: 50 - 60 Hz
: 2400 W
© Copyright reserved
Subject to modification
Advertisement
Related Manuals for Philips SpeedCare GC6603/20
Summary of Contents for Philips SpeedCare GC6603/20
- Page 1 • After the product has been repaired, it should function properly and has to meet the safety requirements and legal regulations as officially laid down at this moment. Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification...
- Page 2 Disassembly advice - Iron GC6603/20 BUTTON 23 WIRE CONNECTOR 28 TOP COVER 17 CONNECTION WIRE ASM 24 CORD BUSHING 15 BASE 29 CONTROL & POWER PCBA 1, 18 SOLEPLATE ASSY 8 Screw A1, A2 STEAM KNOB 2 Remove Remove BUTTON 23 DIAL KNOB 16 Remove Screw B1...
- Page 3 Disassembly advice - Stand GC6603/20 SCREW CAP 57 PUMP BRACKET 41, 44 SILICON CUSHION 56 PUMP ASSY 42 INSULATION BASE 55 CORD CLAMP 45 UNIT BASE COVER 51 CORD BOX COVER 50 BOTTOM FOOT 40 TERMINAL BLOCK 46 WATER TANK ASM 36 SWITCH ASM 47 UNIT BASE BODY 43 POWER CORD ASM 52...
- Page 4 Part lists & Electrical diagram - Iron/Stand GC6603/20 Service code Description Service code Description 9965 100 73706 Control PCB Box 9965 100 73699 Control PCB Assy 9965 100 70251 Control PCB Box 9965 100 73681 Steam Knob 9965 100 73712 Spring 3 9965 100 73687 Housing...
- Page 5 Exploded view - Iron GC6603/20...
- Page 6 Exploded view - Stand GC6603/20...
-
Page 7: Repair Instruction
Repair Instruction GC6603/20 • Due to the high wattage of the iron, only the specified cord set must be used. • Should damage be observed on the POWER CORD ASM 52, it must be replaced. • Continued usage is not allowed. •...
