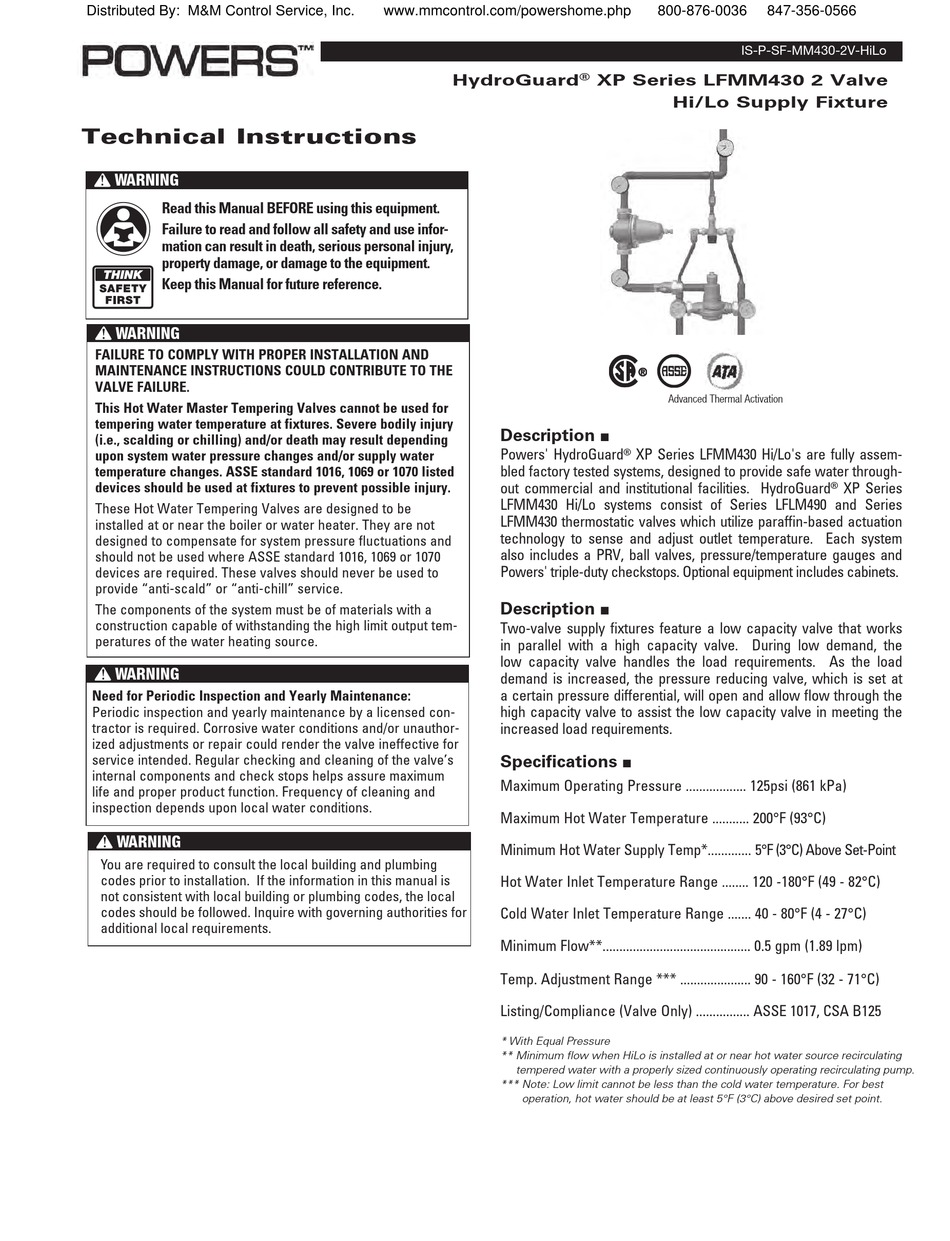

Powers HydroGuard XP LFMM430 Series Technical Instructions

Distributed By: M&M Control Service, Inc.
Technical Instructions
WARNING
!
Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use infor-
mation can result in death, serious personal injury,
property damage, or damage to the equipment.
Keep this Manual for future reference.
WARNING
!
FAILURE TO COMPLY WITH PROPER INSTALLATION AND
MAINTENANCE INSTRUCTIONS COULD CONTRIBUTE TO THE
VALVE FAILURE.
This Hot Water Master Tempering Valves cannot be used for
tempering water temperature at fixtures. Severe bodily injury
(i.e., scalding or chilling) and/or death may result depending
upon system water pressure changes and/or supply water
temperature changes. ASSE standard 1016, 1069 or 1070 listed
devices should be used at fixtures to prevent possible injury.
These Hot Water Tempering Valves are designed to be
installed at or near the boiler or water heater. They are not
designed to compensate for system pressure fluctuations and
should not be used where ASSE standard 1016, 1069 or 1070
devices are required. These valves should never be used to
provide "anti-scald" or "anti-chill" service.
The components of the system must be of materials with a
construction capable of withstanding the high limit output tem-
peratures of the water heating source.
WARNING
!

Need for Periodic Inspection and Yearly Maintenance:

Periodic inspection and yearly maintenance by a licensed con-
tractor is required. Corrosive water conditions and/or unauthor-
ized adjustments or repair could render the valve ineffective for
service intended. Regular checking and cleaning of the valve's
internal components and check stops helps assure maximum
life and proper product function. Frequency of cleaning and
inspection depends upon local water conditions.
WARNING
!
You are required to consult the local building and plumbing
codes prior to installation. If the information in this manual is
not consistent with local building or plumbing codes, the local
codes should be followed. Inquire with governing authorities for
additional local requirements.
www.mmcontrol.com/powershome.php
HydroGuard

Description

Powers' HydroGuard
bled factory tested systems, designed to provide safe water through-
out commercial and institutional facilities. HydroGuard
LFMM430 Hi/Lo systems consist of Series LFLM490 and Series
LFMM430 thermostatic valves which utilize paraffin-based actuation
technology to sense and adjust outlet temperature. Each system
also includes a PRV, ball valves, pressure/temperature gauges and
Powers' triple-duty checkstops. Optional equipment includes cabinets.
Description
Two-valve supply fixtures feature a low capacity valve that works
in parallel with a high capacity valve. During low demand, the
low capacity valve handles the load requirements. As the load
demand is increased, the pressure reducing valve, which is set at
a certain pressure differential, will open and allow flow through the
high capacity valve to assist the low capacity valve in meeting the
increased load requirements.

Specifications

Maximum Operating Pressure .................. 125psi (861 kPa)
Maximum Hot Water Temperature ........... 200°F (93°C)
Minimum Hot Water Supply Temp*............. 5°F (3°C) Above Set-Point
Hot Water Inlet Temperature Range ........ 120 -180°F (49 - 82°C)
Cold Water Inlet Temperature Range ....... 40 - 80°F (4 - 27°C)
Minimum Flow**............................................ 0.5 gpm (1.89 lpm)
Temp. Adjustment Range *** ..................... 90 - 160°F (32 - 71°C)
Listing/Compliance (Valve Only) ................ ASSE 1017, CSA B125
* With Equal Pressure
** Minimum flow when HiLo is installed at or near hot water source recirculating
tempered water with a properly sized continuously operating recirculating pump.
*** Note: Low limit cannot be less than the cold water temperature. For best
operation, hot water should be at least 5°F (3°C) above desired set point.
800-876-0036
IS-P-SF-MM430-2V-HiLo
XP Series LFMM430 2 Valve
®
Hi/Lo Supply Fixture
Advanced Thermal Activation
n
XP Series LFMM430 Hi/Lo's are fully assem-
®
n
n
847-356-0566
XP Series
®
