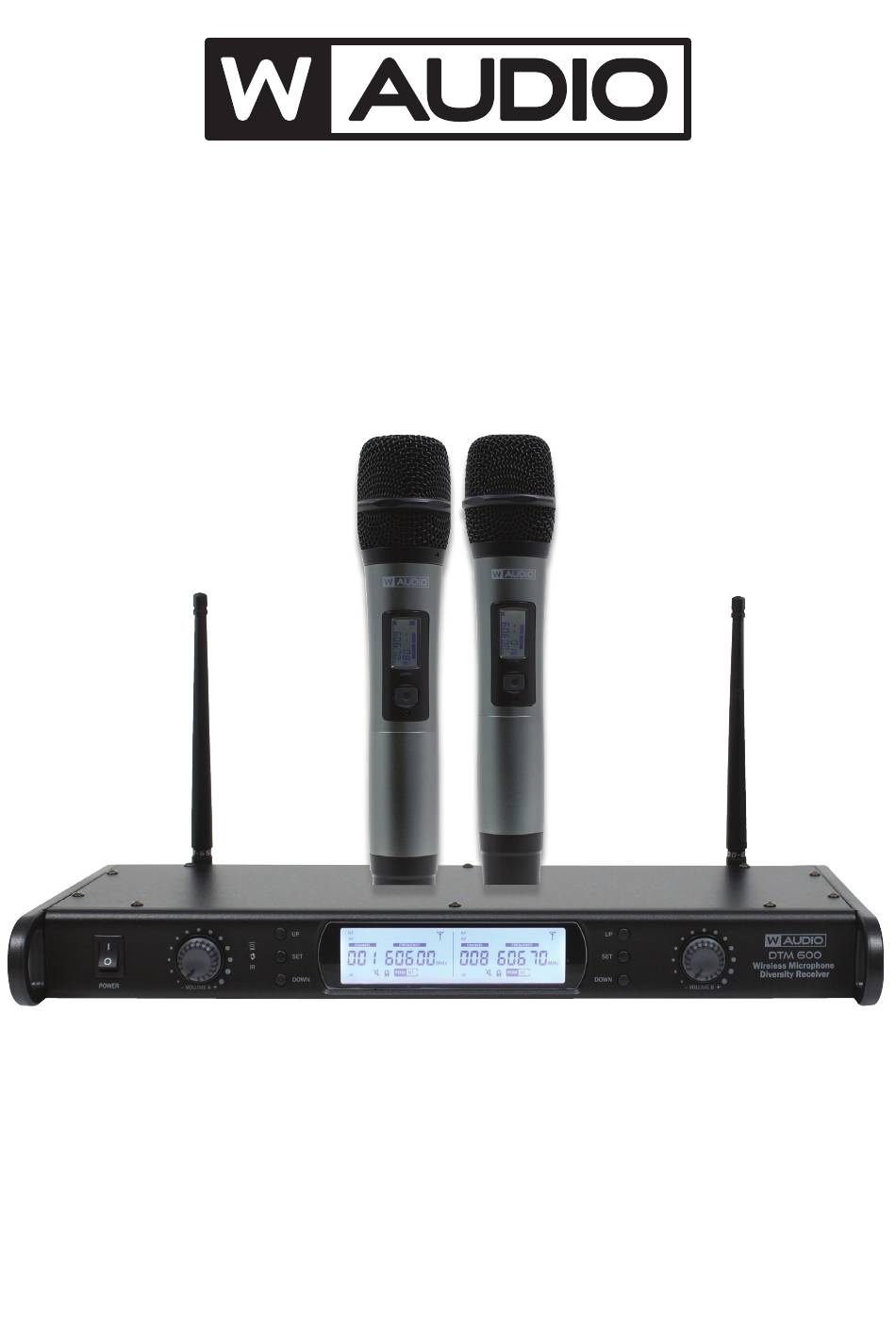

- Page 1 DTM Series Diversity Systems User Manual Order codes inc V1 & V2 software versions: MIC70/70V2 - DTM 800H 863.0Mhz-865.0Mhz MIC72/72V2 - DTM 600H 606.0Mhz-614.0Mhz MIC70A/70AV2 - DTM 800 863.0Mhz-865.0Mhz MIC72A/72AV2 - DTM 600 606.0Mhz-614.0Mhz...
-
Page 2: Safety Advice
In case of malfunction this unit should be returned for service or inspection. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk DTM Series User Manual... - Page 3 Mic Versions Explained How to identify software versions within DTM 600 and DTM 800 radio microphones. Important! V1 software versions will not sync with V2 software versions. Transmitters with a small white sticker = V2 software Transmitters without a sticker = V1 software Going forward we will add V1 or V2 onto the end of the serial number for easier identification.
- Page 4 Product overview & technical specifications DTM Series Diversity Systems DTM series wireless microphones feature twin UHF belt pack or handheld systems with 20 (863-865Mhz) or 80 (606-614Mhz) selectable frequencies. Available in either Channel 38 (606-614Mhz) for the DTM600 or Channel 70 (863-865Mhz) for the DTM800;...
- Page 5 High power electrical equipment can High power electrical equipment can RF status and battery level. cause unwanted interference. cause unwanted interference. www.prolight.co.uk DTM Series User Manual...
-
Page 6: Display Identification
Due to the DTM series utilising a pilot tone type link between the transmitter and receiver, if amy transmitter is to be replaced or swapped, the IR sync must be completed before operation. - Page 7 The microphone is now ready for use. Note: The beltpack transmitter IR transceiver is located inside the battery compartment, as a result the battery compartment door must be open fully before IR sync is carried out. IR SYNC IR SYNC www.prolight.co.uk DTM Series User Manual...
- Page 8 Version 1 or Version 2. V1 Software per the photo below. PL082017**** (fixed antenna) PL062018**** (fixed antenna) PL122018**** (BNC antenna) V2 Software PL052019**** (BNC antenna) PL032020**** (BNC antenna) All on-going versions will be Version 2 www.prolight.co.uk DTM Series User Manual...
-
Page 9: Weee Notice
CH62 - 612.10MHZ CH78 - 613.70MHZ CH15 - 607.40MHZ CH31 - 609.00MHZ CH47 - 610.60MHZ CH63 - 612.20MHZ CH79 - 613.80MHZ CH16 - 607.50MHZ CH32 - 609.10MHZ CH48 - 610.70MHZ CH64 - 612.30MHZ CH80 - 613.90MHZ www.prolight.co.uk DTM Series User Manual... - Page 10 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk DTM Series User Manual...
- Page 11 DTM Series User Manual...
- Page 12 DTM Series User Manual...
