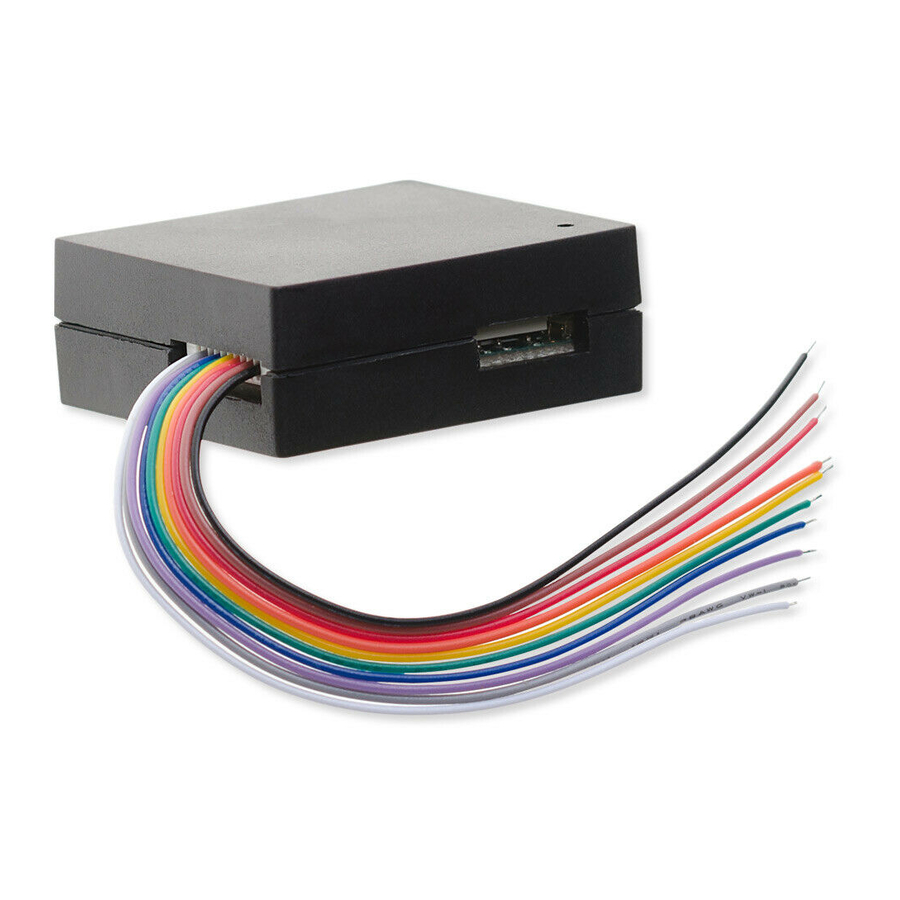

- Page 1 Universal Module V3 www.danalock.com...
-
Page 3: Specifications
Specifications Operating voltage range 12-24V DC Max input (at 24V) 100mA Number of relays Type of relays Potential-free contacts (NO/NC) Max relay voltage Bluetooth® range 5 - 10 meters... - Page 4 Use relay 1 before relay 2 if possible. Power output: Ground Power output: 12-24v DC 100mA Relay 2: Normally open Relay 2: Common Relay 2: Normally closed Universal Module V3 Relay 1: Normally open Relay 1: Common Relay 1: Normally closed Power input: 12-24v DC 100mA...
- Page 5 Now the module is in ex/inclusion mode and you have 30 seconds to pair or unpair it with a gateway. Reset the Danalock Deletes all settings and all keys on the Universal Module. The Universal Module will respond by blinking red.
-
Page 6: Led Signals
LED signals LED mode LED color Status indication 3 sec constant white Power on Constant purple Firmware update activated Blinking blue light Settings changed 5 sec blinking white light Identify 5 sec constant red Factory reset 5 sec constant green followed by Inclusion mode activated green blinks... -
Page 8: Simple Guidelines
Simple Guidelines Category of use The Universal Module V3 unit is an electronic port lock controller meant for garage doors mounted in conjunction with the Please follow these guidelines when confi guring, using or standard garage door motor. recycling the Universal Module V3. Violating these guidelines may be dangerous, illegal or otherwise detrimental. - Page 9 CE mark The Universal Module V3 complies with the essential requirements of the RED directive 2014/53/EU directive with respect to the radio spectrum, EMC, Health and safety. EU Certifi cate and Declaration of conformity (DOC) statements can be downloaded from the homepage:...
- Page 10 Danalock Universal Module V3-BT NOTICE statements according to CFR 47 Part 15.21: Changes or modifi cations made to this equipment not expressly approved by Danalock Aps may void the FCC authorization to Product specifi cations operate this equipment. Supply Voltage...
- Page 11 Japan The product is approved in Japan with the certifi cate ID n°: [R] 204-720646 REACH RoHS COMPLIANT This device is granted pursuant to the Japanese Radio Law ( 2011/65/EU 電波法) Amendment 2015/863/EU =当該機器には電波法に基づく、 技術基準適合証明等を受けた特 FCC ID: 2ADSH-UMV3BT 定無線設備を装着 204-720646 IC:12588A-UMV3BT している...
- Page 12 Danalock Universal Module V3-BTZB NOTICE statements according to CFR 47 Part 15.21: Changes or modifi cations made to this equipment not expressly approved by Danalock Aps may void the FCC authorization to Product specifi cations operate this equipment. Supply Voltage...
- Page 13 AUS/NZ The product complies with the AS/NZS 4268 requirements for Bluetooth LE and Zigbee transceiver under the REACH Radiocommunications Act 1992; Radio communications (Low RoHS COMPLIANT Interference Potential Devices) Class License 2015 compilation 2011/65/EU Amendment 2016 May 4. 2015/863/EU The product complies with the requirements of the relevant FCC ID: 2ADSH-UMV3BTZB standards under Section 134 (1) (g) of the New Zealand 204-720647...
- Page 14 Danalock Universal Module V3-BTZE Product specifi cations Supply Voltage Via USB 12V DC, 1A Temperature Active operating mode -20ºC to +40ºC range Storage 5ºC to +50ºC Mechanical Dimensions (W x H x L) 17 mm x specifi cations 38 mm x 35 mm...
- Page 15 電波法) Danalock Universal Module V3-BTZH =当該機器には電波法に基づく、 技術基準適合証明等を受けた特 定無線設備を装着 Product specifi cations している Supply Voltage Via USB 12V DC, 1A This device should not be modifi ed (otherwise the granted Temperature range Active operating mode -20ºC to designation number will +40ºC Storage 5ºC to +50ºC...
- Page 16 Danalock V3 BTZU NOTICE statements according to CFR 47 Part 15.21: Changes or modifi cations made to this equipment not expressly approved by Danalock Aps may void the FCC authorization to Product specifi cations operate this equipment. Supply Voltage Via USB 12V DC, 1A Statements according to CFR 47 Part 2.1091 and...
- Page 17 FCC part 15B note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 20 Danalock ApS Gammel Stillingvej 427C 8462 Harlev, DK +45 4242 8122 info@danalock.com www.danalock.com UMV3-EN-2021/01/11...
