Universal Module V3
www.danalock.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Universal Module V3 and is the answer not in the manual?

Questions and answers

Related Manuals for danalock Universal Module V3

Summary of Contents for danalock Universal Module V3

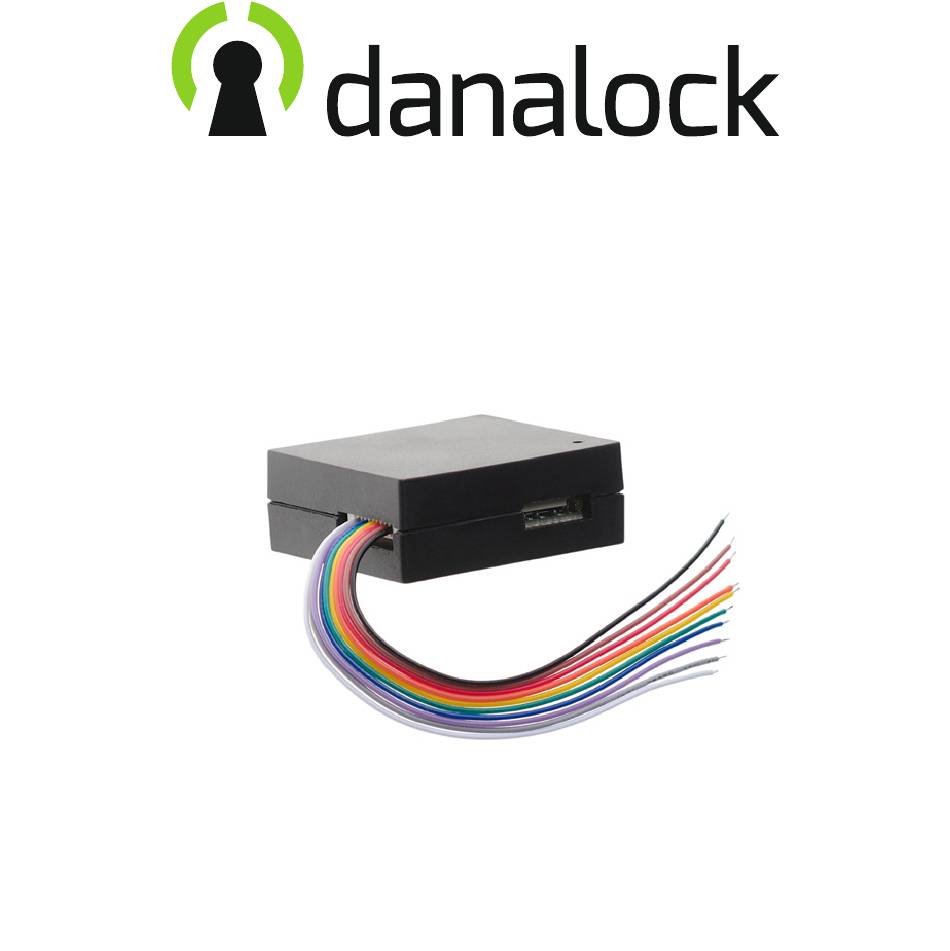

  • Page 1 Universal Module V3 www.danalock.com...

  • Page 2: Specifications

    Specifications Operating voltage range 12-24V DC Max input (at 24V) 100mA Number of relays Type of relays Potential-free contacts(NO/NC) Power output +4dBm Max relay voltage Wireless communication Bluetooth® 4.2 Low Energy Bluetooth® range 5 - 10 meters...
  • Page 3 Now the module is in ex/inclusion mode and you have 30 seconds to Relay 1: Normally closed pair or unpair it with a gateway. Reset the Danalock Power input: 12-24v DC 1amp Deletes all settings and all keys on the Universal Module. The Universal Module will Ground respond by blinking red.
  • Page 4 LED signals LED mode LED color Status indication 3 sec constant white Power on Constant purple Firmware update activated Blinking blue light Settings changed 5 sec blinking white light Identify 5 sec constant red Factory reset 5 sec constant green followed by Inclusion mode activated green blinks...
  • Page 5 Danalock International ApS Gammel Stillingvej 427C 8462 Harlev, DK +45 4242 8122 info@danalock.com www.danalock.com UMV3-EN-2018/09/14...
