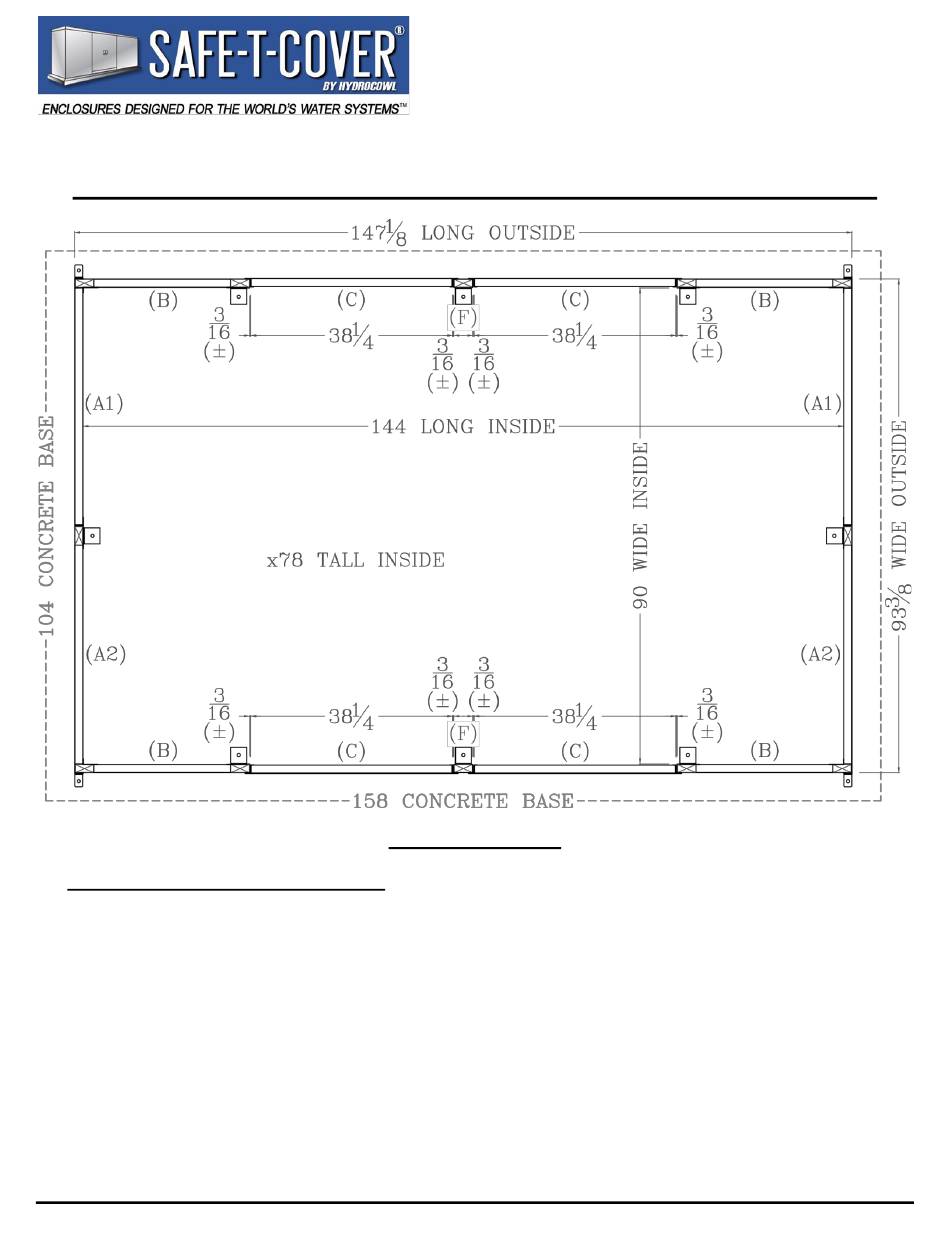

Model No. 1000D-AL (3/22/23) ASSEMBLY INSTRUCTIONS - PLEASE READ CAREFULLY Enclosure Plan View 1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film will protect the enclosure’s outer finish during installation. 2. The concrete base should be 6” thick, 158” long and 104” wide. Please note that the concrete base should be level, or the “C”...
Page 2
(3) Hex Head Screws. 8. Insert an Inside Roof Clip into the “D1” (roof) panel at the “A2” panel stud (Fig. 2C) and then attach it as shown using one (1) Hex Head Screw. Page 2 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
Page 3
11. Position the “D2” (roof) middle panel (Fig. 3) between the “D1” (roof) end panels and set it in place. Place Inner Roof Connection Brackets under both “D1-D2” rafter panel connections on the inside and then fasten them into place (Fig. 2E) using Hex Head Screws. FIG. 3 Page 3 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
Page 4
23. REMOVE THE PVC MASKING FILM IMMEDIATELY AFTER INSTALLATION. If the panels get wet with the masking film in place, water will irreversibly stain the panels. Summertime heat will bake the masking film onto the panels. Page 4 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
Page 5
Model No. 1000D-AL CONTENTS 1. Assembly parts included: A. 2- “A1” (end) Panels B. 2- “A2” (end) Panels C. 4- “B” (corner side) Panels D. 2- “C” (access) Panels E. 2- “C” (access) Panels with Drain Flaps F. 2- “D1” (roof) Panels G.
