ASSEMBLY INSTRUCTIONS - PLEASE READ CAREFULLY
1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film
will protect the enclosure's outer finish during installation.
2. The concrete base should be 6" thick, 188" long and 54" wide. Please note that the concrete base should
be level, or the "C" (access) panels may be difficult to install.
NOTE: the "F" posts have been replaced with "B" (middle) panels, see the Enclosure Plan View.
Page 1
Model No. 1000S-AL (12/28/22)

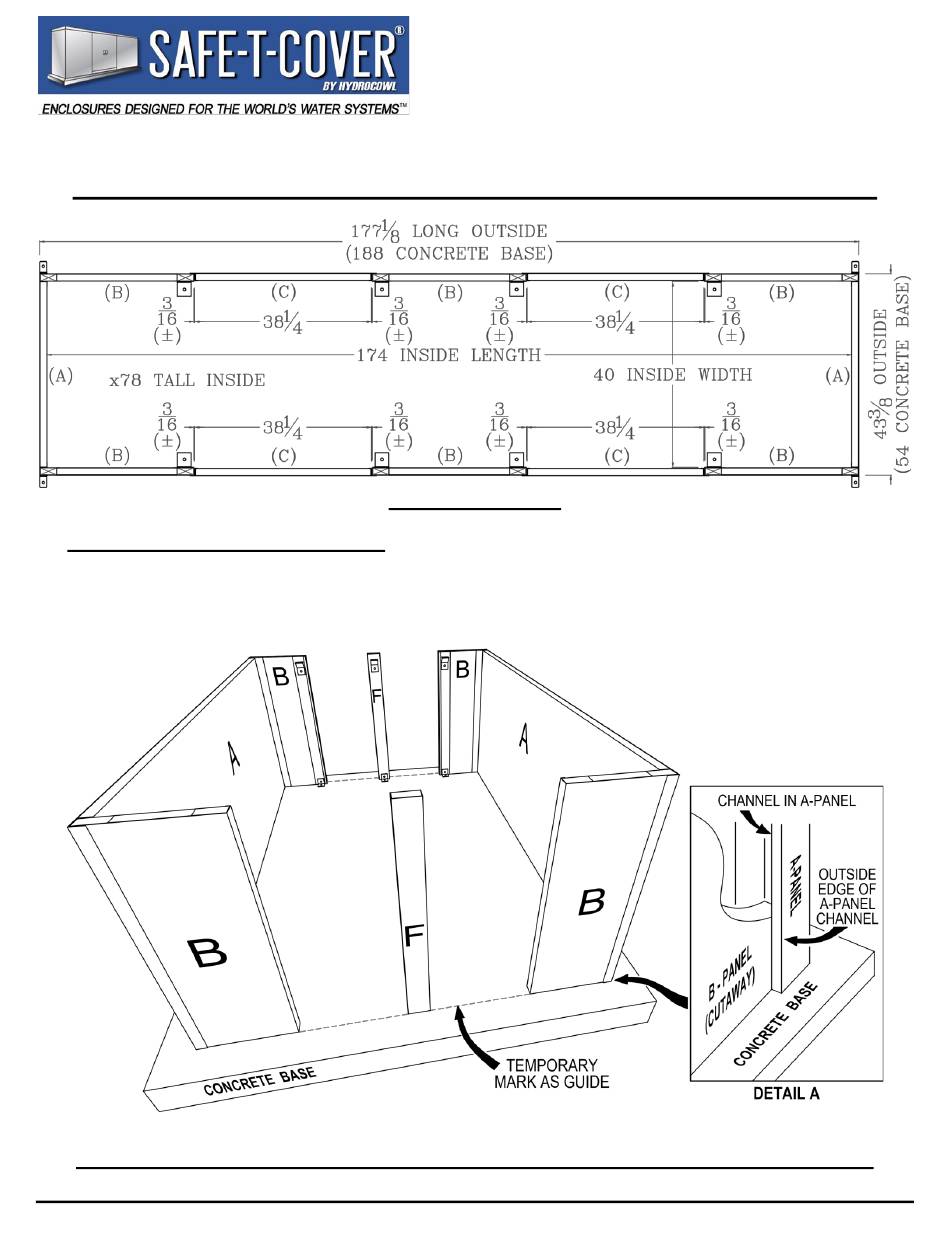

Enclosure Plan View
FIG. 1
www.safe-t-cover.com
1-800-245-6333
Version 2.0
