ASSEMBLY INSTRUCTIONS - PLEASE READ CAREFULLY
1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film
will protect the enclosure's outer finish during installation.
2. The concrete base should be 6" thick, 188" long and 54" wide. Please note that the concrete base should
be level, or the "C" (access) panels may be difficult to install.
3. Mark the concrete base for outside the enclosure (43
Page 1
Model No. 1000TS-AL (3/20/23)

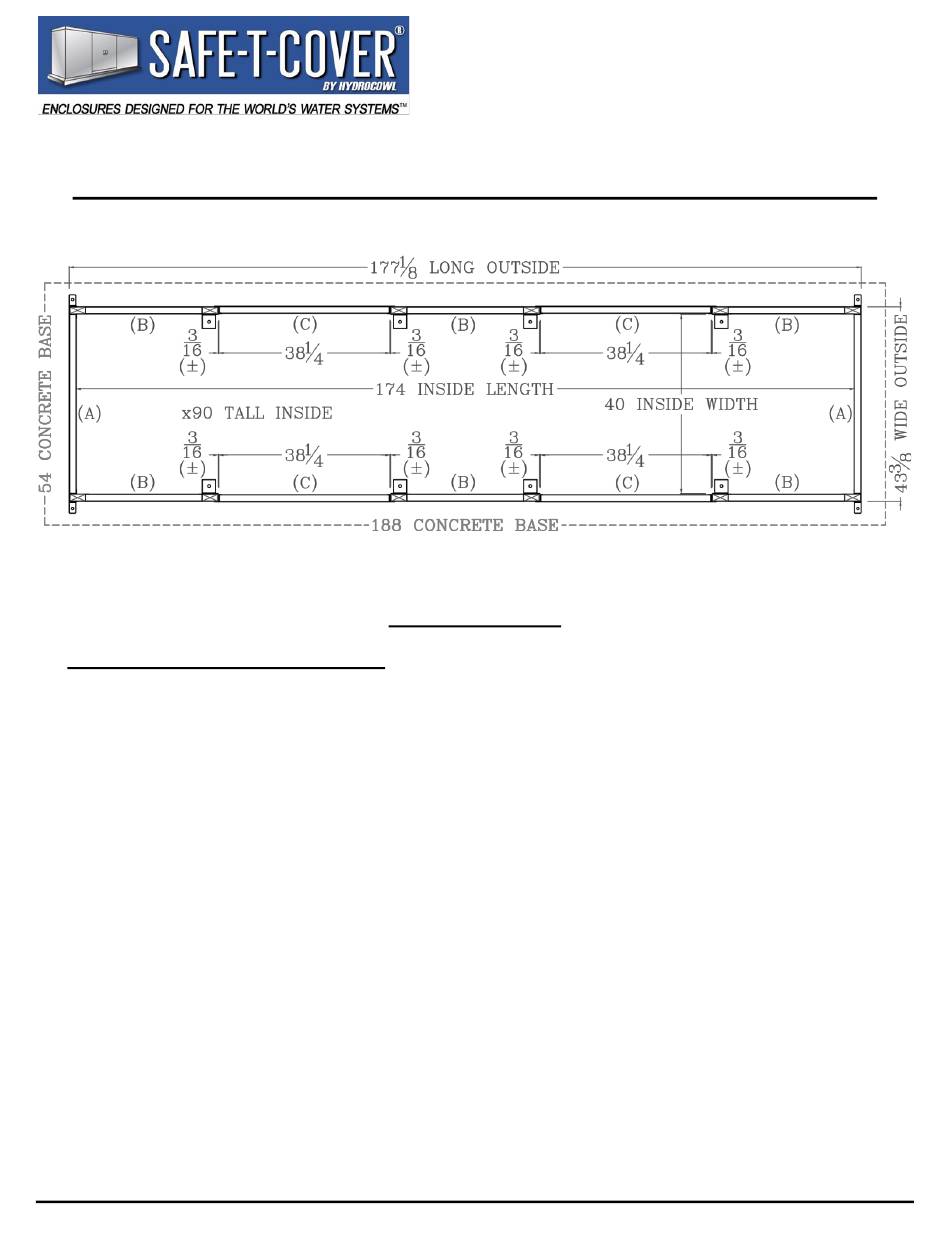

Enclosure Plan View
www.safe-t-cover.com
" wide by 177
" long).
3
1
/
/
8
8
1-800-245-6333
Version 2.0
Advertisement
Related Manuals for Safe-t-Cover 1000TS-AL
Summary of Contents for Safe-t-Cover 1000TS-AL
- Page 1 Model No. 1000TS-AL (3/20/23) ASSEMBLY INSTRUCTIONS - PLEASE READ CAREFULLY Enclosure Plan View 1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film will protect the enclosure’s outer finish during installation. 2. The concrete base should be 6” thick, 188” long and 54” wide. Please note that the concrete base should be level, or the “C”...
- Page 2 If the length does not match the Enclosure ” gaps until the inside length is Plan View, compensate by increasing or decreasing the suggested correct. Try to maintain the same gap at all gap locations. Page 2 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
- Page 3 9. Place the Inner Roof Connection Bracket under the “D1-D2” 2x4 panel connection on the inside and then fasten it into place (Fig. 2E) using Hex Head Screws. Page 3 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
- Page 4 19. REMOVE THE PVC MASKING FILM IMMEDIATELY AFTER INSTALLATION. If the panels get wet with the masking film in place, water will irreversibly stain the panels. Summertime heat will bake the masking film onto the panels. Page 4 www.safe-t-cover.com 1-800-245-6333 Version 2.0...
- Page 5 Model No. 1000TS-AL CONTENTS 1. Assembly parts included: A. 2- “A” (end) Panels B. 6- “B” (side middle corner) Panels C. 3- “C” (access) Panels D. 1- “C” (access) Panel with Drain Flap E. 1- “D1” (roof) Panel 1- “D2” (roof) Panel G.
