Safe-t-Cover 800 Series Assembly Instructions

ASSEMBLY INSTRUCTIONS PLEASE READ CAREFULLY

Model No.

800 Series

800T Series

1. Do not remove the PVC masking film until the enclosure is fully assembled. The PVC masking film

will protect the finish of the metal panels during installation.

2. The concrete pad should be 6" thick x 14" longer than enclosure ID x 14" wider than enclosure ID.

Please note - the concrete pad should be level, or the access panels may be difficult to install.

3. Mark the concrete pad for the outside of the enclosure using the dimensions in the table above.

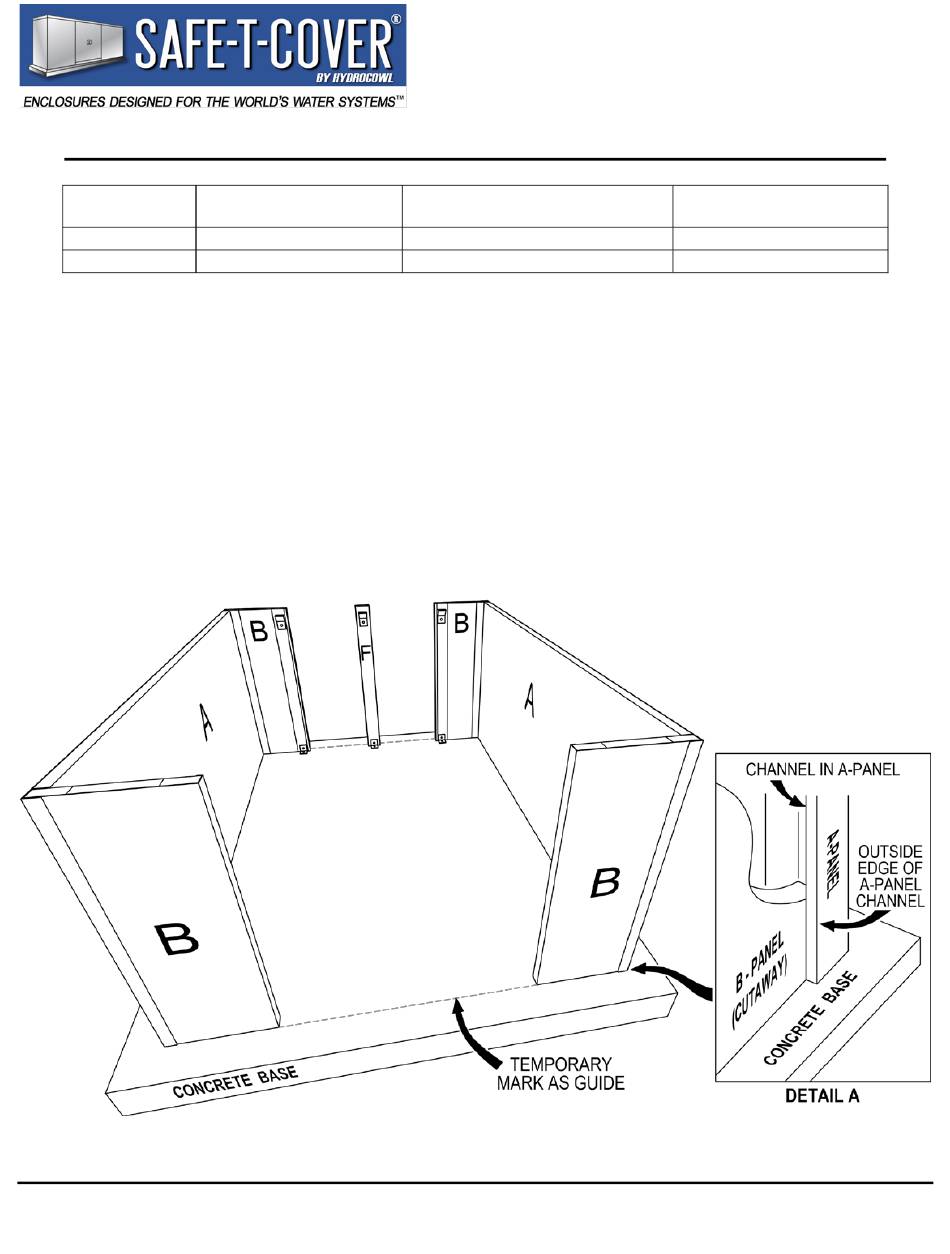

4. Assemble the "BS-A-BL" (side-end-side) assemblies using hex head screws. (For best results, insert a

bead of silicone caulk into the inside bend of the "A" panel corners.) Position both sets of assembled

panels on the marked concrete base (Fig 1).

Page 1

Inside

Dimensions

38"W x 120"L x 56"H

38"W x 120"L x 80"H

www.safe-t-cover.com

Outside

Dimensions

41 3/4"W x 123 1/8"L x 59 1/4"H

41 3/4"W x 123 1/8"L x 83 1/4"H

FIG. 1

Recommended Concrete

Pad Dimensions

52"W x 134"L x 6" Thick

1-800-245-6333

7/14/2020

Table of Contents

Need help?

Do you have a question about the 800 Series and is the answer not in the manual?

Page 1 Outside Recommended Concrete Model No. Dimensions Dimensions Pad Dimensions 800 Series 38"W x 120"L x 56"H 41 3/4"W x 123 1/8"L x 59 1/4"H 52"W x 134"L x 6" Thick 800T Series 38"W x 120"L x 80"H 41 3/4"W x 123 1/8"L x 83 1/4"H 52"W x 134"L x 6"...
Page 2 (2) hex head screws. Then fasten the bracket to the concrete with one (1) concrete anchor. Fasten the Inside Side Anchoring Brackets to the “B” panels and concrete along one side of the enclosure. Page 2 www.safe-t-cover.com 1-800-245-6333 7/14/2020...
Page 3 5- Inside Anchoring Brackets (3” x 3”) 5- Inside Roof Clips 1- Package of Anchors 1- Package of Hex headed screws 1- Masonry Bit 1- Magnetic Chuck 2. Tools needed: A. Hammer B. Drill C. ¾” Wrench D. Hammer Drill Page 3 www.safe-t-cover.com 1-800-245-6333 7/14/2020...
