Overview

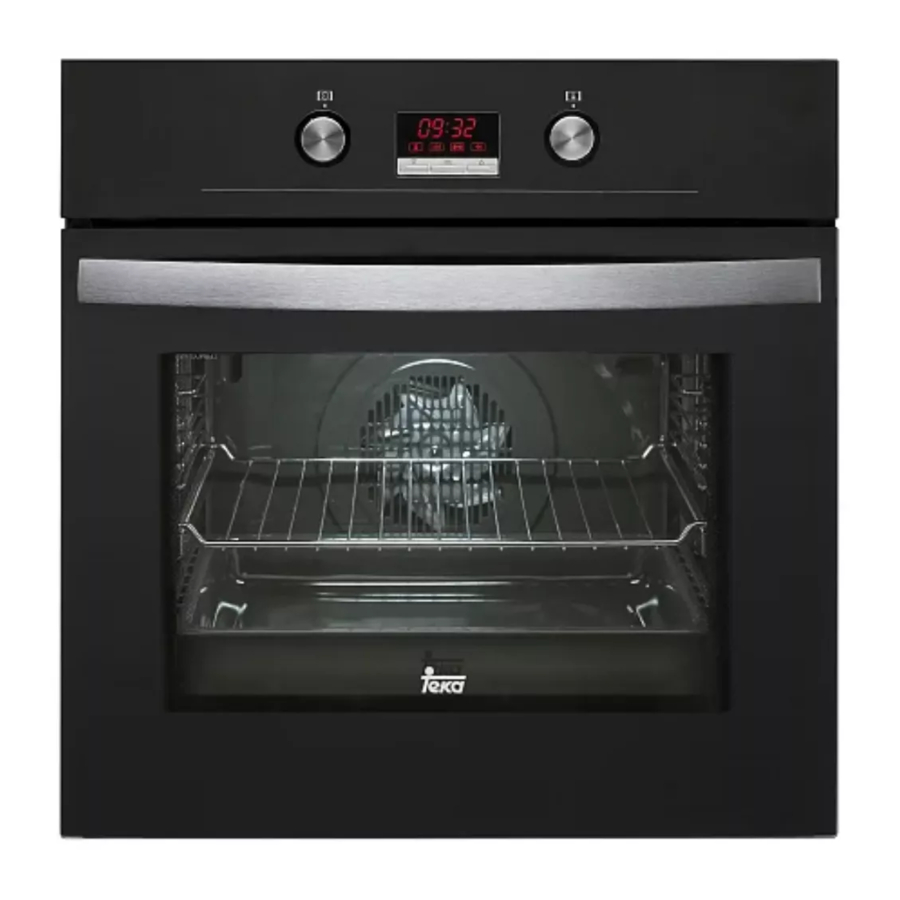

Oven overview

Control Panel
Oven Seal
Grill element
Chrome Support + Telescopic Guide
Grid
Cake Tray
Roasting Tray
Hinge
Door
Air Outlet
Fixing to Unit
Grill Screen
Smoke Outlet
Light
Rear Panel
Fan

Control Panel

Control panel overview

Control knobs for the hob.
Cooker indicator light. It indicates that one or more of the electric hotplates are on.
Function selector.
Electronic clock.
Temperature selector.

Oven Functions

Switch off oven

Conventional
It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

Conventional with fan
Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

Grill
For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

MaxiGrill
Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

MaxiGrill with fan
Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry, game etc. It is recommended to put the item on a rack with a tray beneath to collect the stock and juices.

While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed.

Turbo
The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time.
This cooking mode allows defrosting of food. To do this, set the temperature selector to position.

Lower element
Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

Lower element with fan
It distributes the heat from the lower part of the oven and is ideal for cakes with jam or fruit filling, which only require heating from beneath. Pre-heating is always necessary.

Grill and Lower element
Special for roasts. It can be used for any piece, whatever its size.

Note
The pilot light remains on in any cooking function.

Use of the Oven

Functions of the oven

Setting the time on the Electronic Clock

When the oven is connected to the power supply, the indication 00:00 flash on the display. Press or to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press or until the current time flash on the screen. Press .Then press or to modify he time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

When you begin cooking, symbol lights up to indicate that the oven is heating the contents; the symbol goes out when the selected temperature is reached.

Set the controls to to turn the oven off.

Functions of the Electronic Clock

Alarm:
Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time:
To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time:
To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time:
To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time)

Programming the Alarm

Press until symbol lights up. Press .
Set the period of time after which you wish the alarm to sound by pressing or .
The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the alarm has been set.
When the set period of time comes to an end, the alarm sounds and symbol starts to flash.
Press any button to stop the alarm; symbol goes out.

You can consult the remaining time at any moment by pressing or until symbol flashes and then pressing . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press or until symbol flashes and then press and keep it pressed in. Symbol flashes. Keep pressed in again to return to the real time.

Setting the Cooking Time

Press or until symbol lights up. Press .
Select the period of time you wish to cook for by pressing or .
The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the oven will turn itself off automatically.
Select a cooking function and temperature.
When the cooking time comes to an end, the oven turns itself off, the alarm sounds and symbol flashes.
Press any button to stop the alarm and turn the oven back on again.
Set the controls to to turn the oven off.

You can consult the remaining cooking time at any moment by pressing or until symbol flashes and then pressing . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

Setting the End Cooking Time

Press or until symbol lights up. Press .
Select the time you wish the cooking process to finish at by pressing or .
The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the oven will turn itself off automatically.
Select a cooking function and temperature.
When the set time is reached, the oven turns itself off, the alarm sounds and symbol flashes.
Press any button to stop the alarm and turn the oven back on again.
Set the controls to to turn the oven off.

You can consult the end cooking time at any moment by pressing or until symbol flashes and then pressing . You can also modify the end cooking time at this point by pressing or . The clock beeps twice to confirm the change.

This function can be used even when you are already using the oven. To do this, follow the instructions indicated above except point number 4.

Setting the Cooking Time and the End Cooking Time

Press or until symbol lights up. Press .
Select the period of time you wish to cook for by pressing or .
The clock beeps twice, the current time is displayed and symbol lights up permanently.
Press or until symbol lights up. Press .
Select the time you wish the cooking process to finish at by pressing or .
The clock beeps twice, the current time is displayed and symbol lights up permanently.
Select a cooking function and temperature.
The oven remains off with symbols and lit up. Your oven is set.
When the time to start cooking is reached, the oven starts up and cooks for the set period of time.
When the set end cooking time is reached, the oven turns itself off, the alarm sounds and symbols and flash.
Press any button to stop the alarm and turn the oven back on again.
Set the controls to to turn the oven off.

You can modify the end cooking time by pressing or until symbol lights up and then pressing . You can now modify the end cooking time by pressing or . The clock beeps twice to confirm the change.

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.

Changing the oven light bulb

Make sure the oven is unplugged before changing the bulb.

Detach the chrome supports by loosening the screw (A).
Release the bulb-holder glass cover with a tool.
Change the bulb.
Reassemble the glass cover and ensure that everything fits in the correct position.
